Product type: Optical Windows. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: OW-0031.
Overview

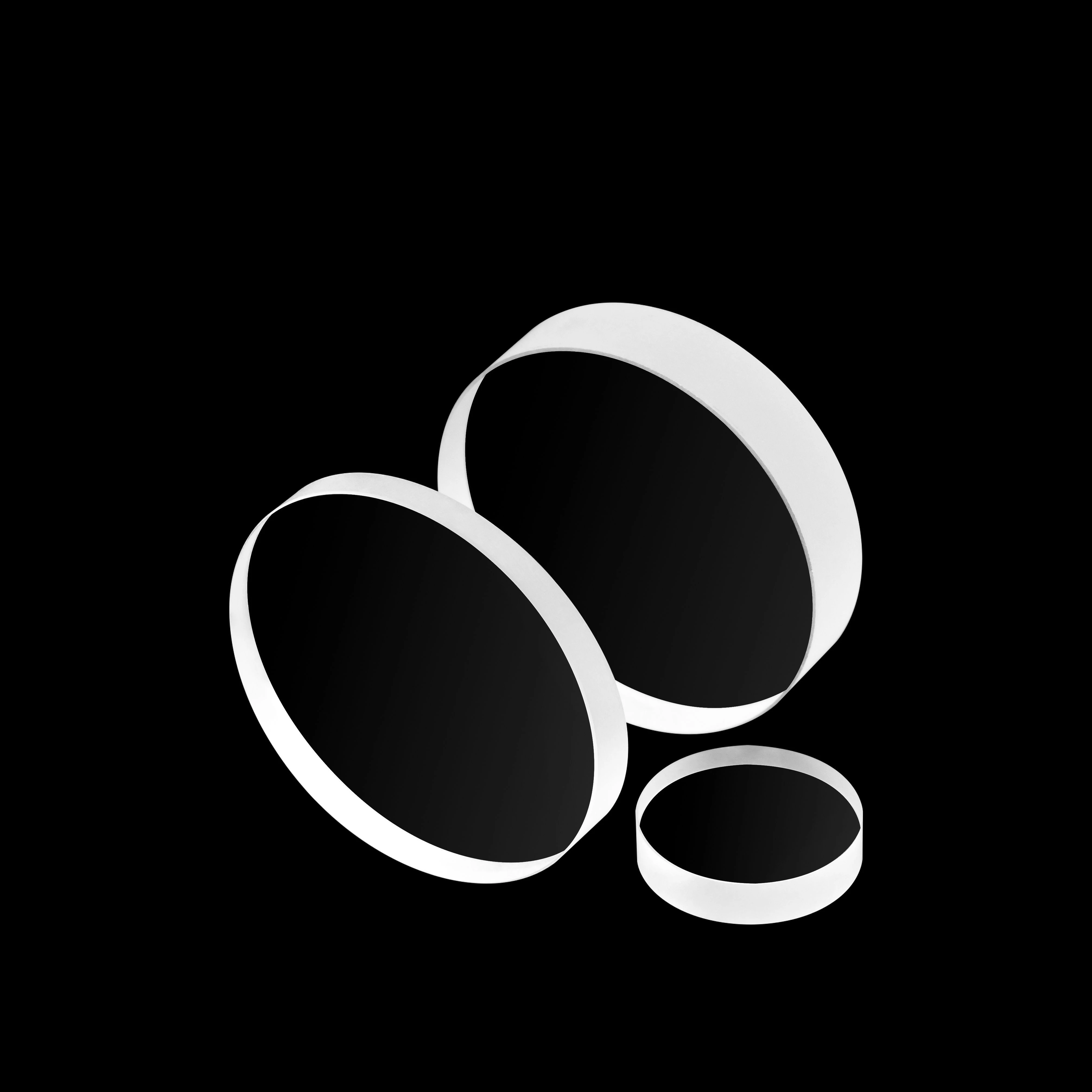

Round Glass Optical Windows with Protective Sapphire Coating Protective Mirror Wedge Windows is an optical mirror made from Optical Glass. Listed geometry: size Custom, single-lens shape. Optical / electrical data: transmittance >95%. Supplied uncoated. Typical applications: Lighting, Medical, Optical, Photography and Laser. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Optical Windows |
| Shape | Single-lens |
| Size | Custom |
| Transmittance | >95% |
| Coating | Uncoating |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | OW-0031 |
| Lenses Color | Clear |
| Customized Support | OEM, ODM, Obm |
| Weight | Custom |
| Product Name | Optical Glass Window |
| C-Laser Precision Optical Windows | Full-Material Solutions & Customization Services |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| Product Name | Optical Glass Window |
|---|---|
| OEM | Customer Requirement Accpeted |
| Package | Carton |
| Size | Custom Sizes |
| Function | Heat Absorbing Glass |
| Advantage | High Temperature Resistnat |
| Feature | High Light Permeability |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “Custom”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Uncoating”; list the band and reflectance or transmission target.
