Application: Digitizer. Model: T01.
Overview

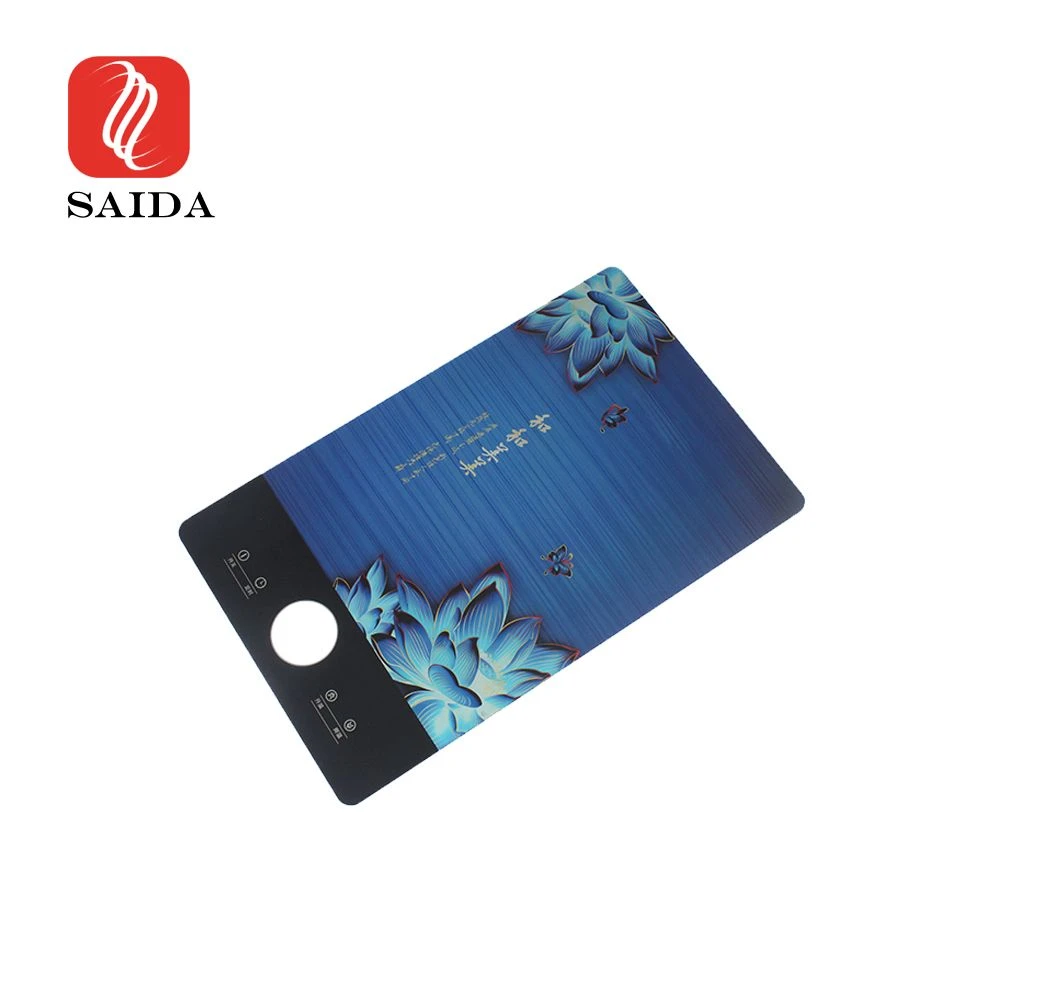

Saida ITO Coated Glass ITO Conductive Glass for Electronic Scale: an ITO-coated glass. Listed geometry: curve shape. Flatness Conforming Article. It is used in Electronics & Instruments. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Curve |
|---|---|
| Flatness | Conforming Article |
| Application | Electronics & Instruments |
| Usage | Digitizer |
| Model NO. | T01 |
| Appearance | Bent Tempered |
| Standard | GB/T9963 |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | 0.5mm |
| Fragment State | I |
| Technics | Chemical Tempered |
| Avaialbe Size | 0.33mm, 0.55mm, 0.7mm, 1.1mm, 1.5mm, 2.0mm, |
| Avaialble Coating | Ar/Af/AG/ITO Coating |
| Printing Technology | Silk Printing |
| Quality Standard | En60598, En12150, etc. |
| Color | Customized |
| Mqo | Sample Order Accepted |
| Product picture | What is Conductive Glass? |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Item | Standard | Result | A/R | |
| 'Length | 406.4 ±0.2 mm | 406.42 | 406.4 | A |
| 'Width | 355.6 ± 0.2 mm | 355.60 | 355.6 | A |
| 'Thickness | 1.1 ±0.05 mm | 1.110 | 1.115 | A |
| 'Squareness | ≤0.1% | 0.02 | 0.02 | A |
| 'Warp | ≤0.1% | 0.02 | 0.02 | A |
| 'Waviness | ≤0.15 um/20mm | 0.090 | 0.102 | A |
| 'SiO2 coating thickness | ≥300 Å | 339.00 | 345.0 | A |
| 'ITO coating thickness | 250 ±50 Å | 254.00 | 262.0 | A |
| 'Sheet Resistance | 70 ~ 90 Ω/£ | 76.00 | 83.0 | A |
| 'Transmission | Tr ≥87% (λ= 550nm) | 89.50 | 89.6 | A |
| 'Etching time | ≤ 40S | 20.00 | 20.0 | A |
| 'Alkaline resistance | R/R0≤110 % | 101.30 | 101.3 | A |
| 'Acid resistance | R/R0≤110 % | 101.20 | 101.2 | A |
| 'Heat Resistance | R/R0≤350 % | 205.40 | 206.2 | A |
| 'Adhension | No damage | OK | A | |
| 'Abrasion | No denudation | OK | A | |
| 'Appearance | Ref. the specification of SaidaGlass standard | OK | A |
What to specify when you request a quote
- Sheet resistance — state the target sheet resistance and its tolerance.
- Transmittance — give the minimum visible transmission at the resistance you need.
- Substrate and thickness — listed as “0.5mm”; name the base glass (soda-lime, borosilicate, alkali-free, quartz) and thickness.
- Size and cutting — listed as “0.33mm, 0.55mm, 0.7mm, 1.1mm, 1.5mm, 2.0mm,”; give the cut size and whether edges are seamed.
- Pattern or electrodes — send a drawing for any etched pattern, bus bar or electrode.
