Product type: Flat Lens. Application: Lighting, Medical. Model: STF5C.
Overview

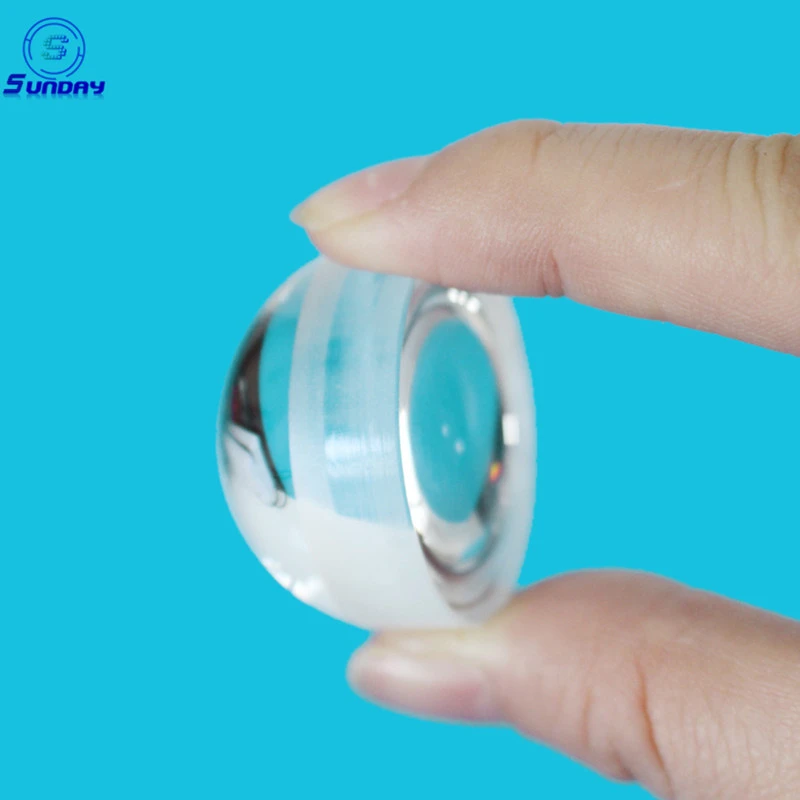

Sapphire Lens and Window Plano Convex is an optical lens made from Sapphire. Listed geometry: single-lens shape. Optical / electrical data: bandwidth 3-50nm, transmittance >95%. Coating: HMC; surface quality 60-40; flatness 1/4 Lambda. Listed for Lighting and Medical applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Sapphire |
|---|---|
| Type | Flat Lens |
| Shape | Single-lens |
| Fwhm | 3-50nm |
| Transmittance | >95% |
| Coating | HMC |
| Surface Quality | 60-40 |
| Flatness | 1/4 Lambda |
| Usage | Lighting, Medical |
| Model NO. | STF5C |
| Tolerance | +/-0.05mm |
| Sunday Optics manufacture | Sapphire window, sapphire lens, sapphire light block,sapphire dome lens. |
| Supplier | Changchun Sunday Optics Co., Ltd. |
Technical data
| Diameter | 0.5mm to 300mm |
|---|---|
| Diameter Tol. | +/-0.02 |
| Material | Sapphire (Al2O3) |
| Surface Quality | 60-40 standard |
| Flatness | 1/4 lambda |
| Chamfer | 0.25mmx45degree |
| Coating | AR Coating is on request. |
What to specify when you request a quote
- Material — listed as “Sapphire”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “60-40”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “HMC”; list the band and reflectance or transmission target.
