Product type: Customize. Application: Lighting, Medical, Optical. Model: 22882.
Overview

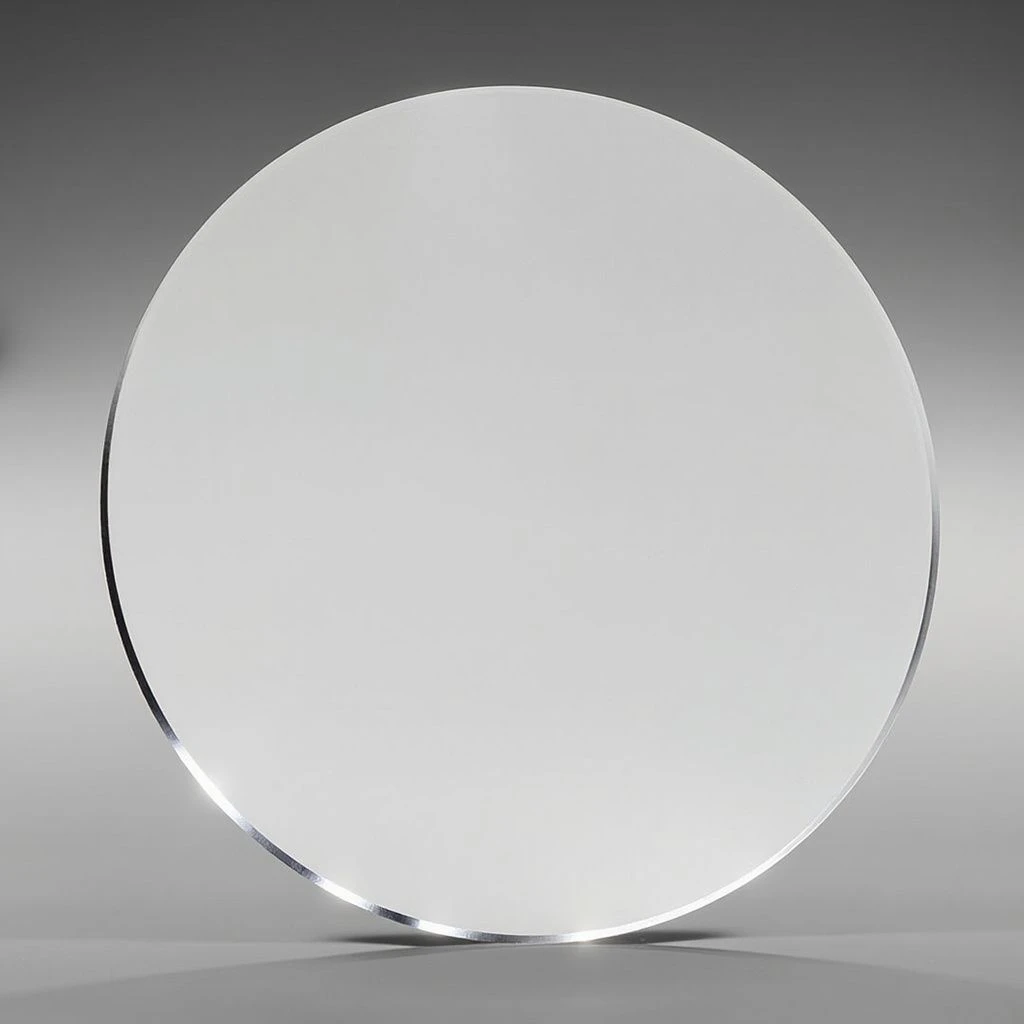

Sapphire Wafer 6 Inch C-Plane DSP 1.0mm is a sapphire / specialty wafer made from Sapphire, Optical-Grade Sapphire (Al2O3). Listed geometry: diameter Customize, thickness Customize, customize shape. Optical / electrical data: transmittance >95%. Listed for Lighting, Medical and Optical applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Sapphire, Optical-Grade Sapphire (Al2O3) |
|---|---|
| Type | Customize |
| Shape | Customize |
| Diameter | Customize |
| Thickness | Customize |
| Transmittance | >95% |
| Usage | Lighting, Medical, Optical |
| Model NO. | 22882 |
| Lenses Color | Customize |
| Supplier | Shenzhen Xinyuan Huiyu Optoelectronic Technology Co., Ltd. |
Technical data
| Material | Optional | Customized | Customized |
| Size | Custom | Customized | Customized |
| Focal Length | Custom | Customized | Customized |
| Coating | Optional | Customized | Customized |
What to specify when you request a quote
- Diameter and flat / notch — listed as “Customize”; state diameter, flat or notch and their tolerances.
- Thickness and TTV — listed as “Customize”; give thickness, its tolerance and total thickness variation.
- Polish and roughness — specify single- or double-side polish and roughness.
- Flatness, bow and warp — quote flatness, bow and warp limits.
- Material grade — listed as “Sapphire, Optical-Grade Sapphire (Al2O3)”; name the grade (JGS1/JGS2, Borofloat 33, alkali-free, sapphire orientation).
Engineering guides for this part
For material grades and coating options, see Fused Quartz Wafer Substrate Selection: Materials & Coatings for Semiconductor and Optical Systems. How parts like this are machined and finished is covered in Precision Glass Hole Machining for MEMS and Wafer Parts.
