Model: 3589-SR.
Overview

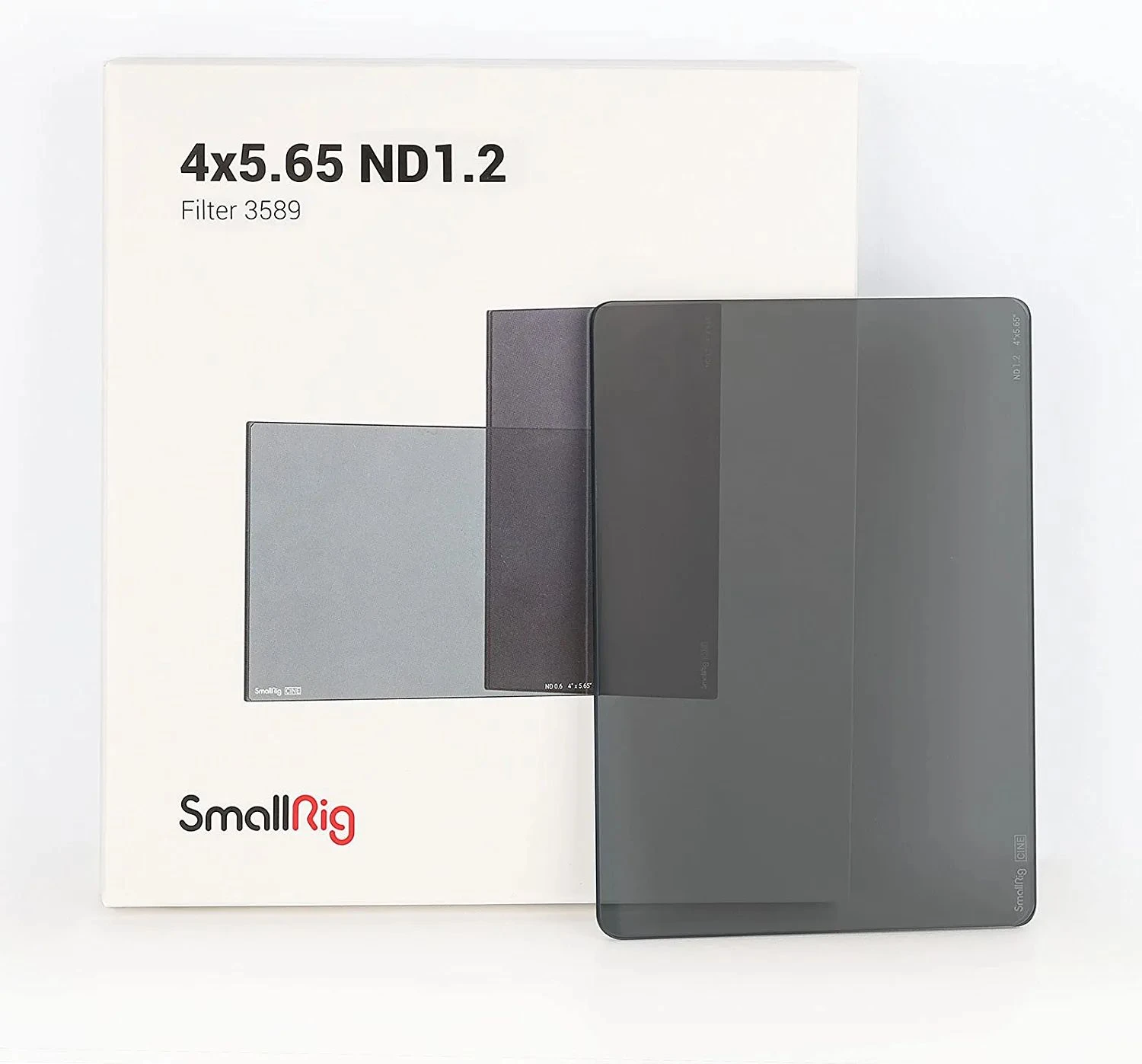

SmallRig 4 X 5.65 ND1.2 Filter (4 Stops), 4mm Thick Square Neutral Density Density Filter, with Multi-Layer Coatings Schott B270 Optical Glass, Fits for Matte B: a neutral density filter made from Optical Glass. Listed geometry: size 5.65 X 4 X 0.16 Inches. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Size | 5.65 X 4 X 0.16 Inches |
| Focus Type | 4 X 5.65 ND1.2 Filter |
| Item Weight | 11.3 Ounces |
| Model NO. | 3589-SR |
| Coating Description | Multi Coating |
| Supplier | GUANGZHOU EMILYFOTO CO., LTD |
What to specify when you request a quote
- Spectral target — state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “5.65 X 4 X 0.16 Inches”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Optical Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
