Application: Home Appliance, Electronics & Instruments. Model: M1.
Overview

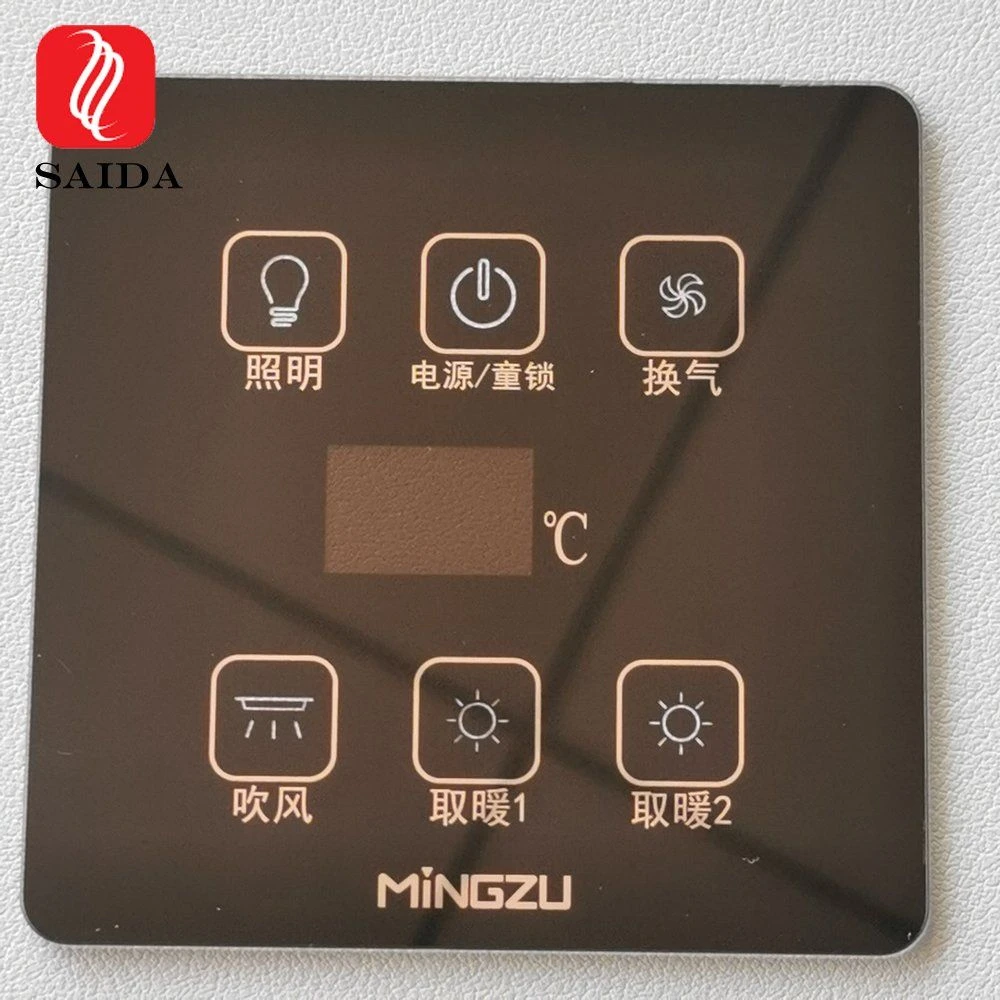

Tempered Glass 1mm High Clarity for ITO Touch Sensor is an ITO-coated glass. Listed geometry: size 5inch to 100inch Can Be Customized, thickness 2/3/4/5/6mm, flat shape. Flatness Conforming Article. It is used in Home Appliance and Electronics & Instruments. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Flat |
|---|---|
| Size | 5inch to 100inch Can Be Customized |
| Thickness | 2/3/4/5/6mm |
| Flatness | Conforming Article |
| Usage | Home Appliance, Electronics & Instruments |
| Model NO. | M1 |
| Appearance | Flat Tempered |
| Standard | GB/T 9963-1998 |
| Steel Degree | Tempered Glass |
| Fragment State | Ⅱ |
| Technics | Chemical Tempered |
| Color | Customized |
| Treatment | Af/Ar/AG/ITO/Fto |
| Max.size | 3660*2440mm |
| Max. Size | 3500*1600mm |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Product Type | Tempered Glass 1mm High Clarity for ITO Touch Sensor |
|---|---|
| Raw Material | Crystal White/Soda Lime/Low Iron Glass |
| Size | Size can be customized |
| Thickness | 0.33-12mm |
| Tempering | Thermal Tempering/Chemical Tempering |
| Edgework | Flat Ground (Flat/Pencil/Bevelled/Chamfer Edge are available) |
| Hole | Round/Square (Irregular hole are available) |
| Color | Black/White/Silver (up to 7 layers of colors) |
| Printing Method | Normal Silkscreen/High Temperature Silkscreen |
| Coating | Anti-Glaring Anti-Reflective Anti-Fingerprint Anti-Scratches |
| Production Process | Cut-Edge Polish-CNC-Clean-Print-Clean-Inspect-Pack |
| Features | Anti-scratches/Waterproof/anti-fingerprint/anti-fire/easy to clean/high-pressure scratch resistant |
| Keywords | Anti Fingerprints Flat Switch Glass Panel Easy Clean-up Switch Glass Panel Intelligent Touch Switch Tempered Glass Panel |
| Automatic Cutting Machine | Max.size:3660*2440mm |
|---|---|
| CNC | Max.size: 2300*1500mm |
| Edge Grinding & Chamfering | Max.size: 2400*1400mm |
| Automatic Production Line | Max.size :2200*1200mm |
| Thermal Tempered Furnace | Max. Size:3500*1600mm |
| Chemical Tempered Oven | Max. Size: 2000*1200mm |
| Coating Line | Max. Size:2400*1400mm |
| Dry Oven Line | Max. Size : 3500*1600mm |
| Packaging Line | Max. Size: 3500*1600mm |
| Automatic Cleaning Machine | Max. Size: 3500*1600mm |
What to specify when you request a quote
- Sheet resistance — state the target sheet resistance and its tolerance.
- Transmittance — give the minimum visible transmission at the resistance you need.
- Substrate and thickness — listed as “2/3/4/5/6mm”; name the base glass (soda-lime, borosilicate, alkali-free, quartz) and thickness.
- Size and cutting — listed as “5inch to 100inch Can Be Customized”; give the cut size and whether edges are seamed.
- Pattern or electrodes — send a drawing for any etched pattern, bus bar or electrode.
