Model: SD-43.
Overview

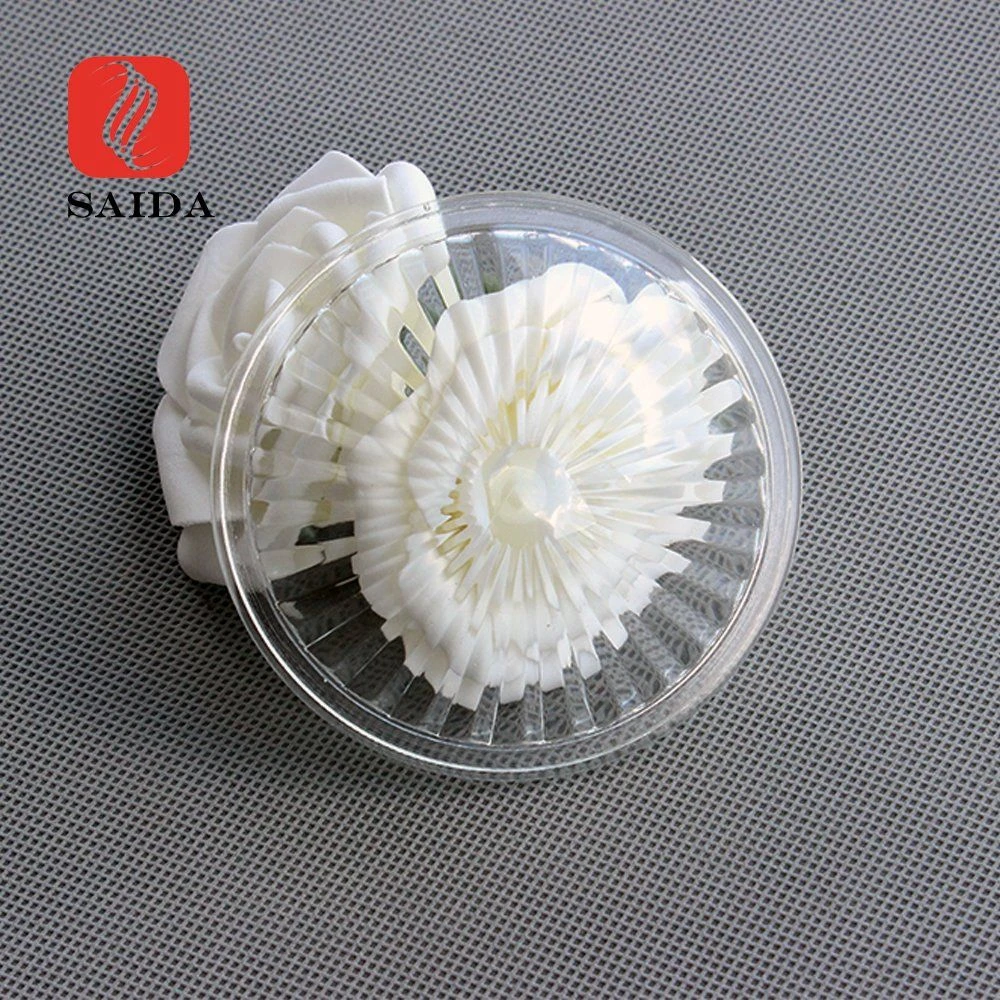

The Tempered Glass Cover for LED Lighting is supplied as an LED / OLED cover glass. Listed geometry: size Customized According to Customer Drawings, thickness 0.55mm/0.6mm/0.7mm/0.8mm/1.0mm/1.5mm/2.0mm/3mm etc. Optical / electrical data: transmittance >91%. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Transmittance | >91% |
|---|---|
| Model NO. | SD-43 |
| Pixel Pitch | 2.5mm |
| Pixel Configuration | 2R,1G,2B |
| Pixel Density | 27,777 dots / m² |
| Scanning Mode | 1/8 Scan |
| System Operating Platform | WIN2000 |
| Display Type | LED Video Display |
| IP Rating | IP43 |
| Glass Silk Screen Color | Black, Gray, White, Other Colors. |
| Glass Raw Materials | Gorilla/AGC/Dragontail/Panda Glass or Other Brand. |
| Glass Thickness | 0.55mm/0.6mm/0.7mm/0.8mm/1.0mm/1.5mm/2.0mm/3mm etc |
| Glass Shapes | Square, Round, Irregular Graphics, (Customized) |
| Glass Size | Customized According to Customer Drawings |
| Edge Processing | Straight, Round, Beveled, Stepped; Polished, CNC |
| Surface Treatment | AG/Af/Ar Coating |
| Minimum Order Quantity | 100PCS |
| Drilling | Acceptable |
| Shipping Way | Commercial Express, Sea Shipping |
| Tempered | Physical Tempered, Chemical Tempered |
| Hardness | >7h |
| Tube Chip Color | Full Color |
| Display Function | Video Display, Image & Text Display, Text Display |
| Currently our products are mainly used in | 1. Consumer Electronics (smart watch, smart bracelet, tablet, glass cover, camera lens cover, game console cover, etc.) |
| Edge and Chamfering Process | Packaging & Shipping |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Product Name | Ceramic printing physical tempered 3mm, 4mm, 6mm lighting glass cover decorative glass panel |
|---|---|
| Material | Gorilla/AGC/Dragontail/Panda Glass or Other Brand. |
| Color | customized |
| size | as your requirement |
| shape | as your requirement |
| thinkness | 0.5mm/0.7mm/0.8mm/1.1mm/1.3mm/1.5mm/1.8mm/2mm/3mm etc. |
| Technology | Tempering (Silk printing, tempering, frosting ,drilling, edging, water-jet cutting, laminating) |
| Used | household panel, touch screen panel |
What to specify when you request a quote
- Glass type and thickness — listed as “Gorilla/AGC/Dragontail/Panda Glass or Other Brand.”; name the glass (soda-lime, aluminosilicate, borosilicate) and thickness.
- Strengthening — listed as “Physical Tempered, Chemical Tempered”; state thermal tempering or chemical strengthening and the required surface compression or impact rating.
- Printing and coatings — listed as “>7h”; list silk-screen colours, windows, and any AR / AG / AF coating.
- Outline and edges — listed as “Square, Round, Irregular Graphics, (Customized)”; send a drawing with cut-outs, holes and edge finish.
- Optical requirements — listed as “>91%”; give transmission, haze or gloss targets for the viewing area.
Engineering guides for this part
For material grades and coating options, see LED Cover Glass Material Guide for Optical Encapsulation. How parts like this are machined and finished is covered in Glass Etching for LED & OLED Module Covers: Process, Quality, and Scalability. For an application example, read Precision OLED Cover Glass for Smart Appliance Display Modules. A related standard product is Etched Glass Cover for LED/OLED Packaging.
