Product type: Float Glass, Tempered Glass. Function: Body Weight, Body Fat, Calories, Hydration.
Overview

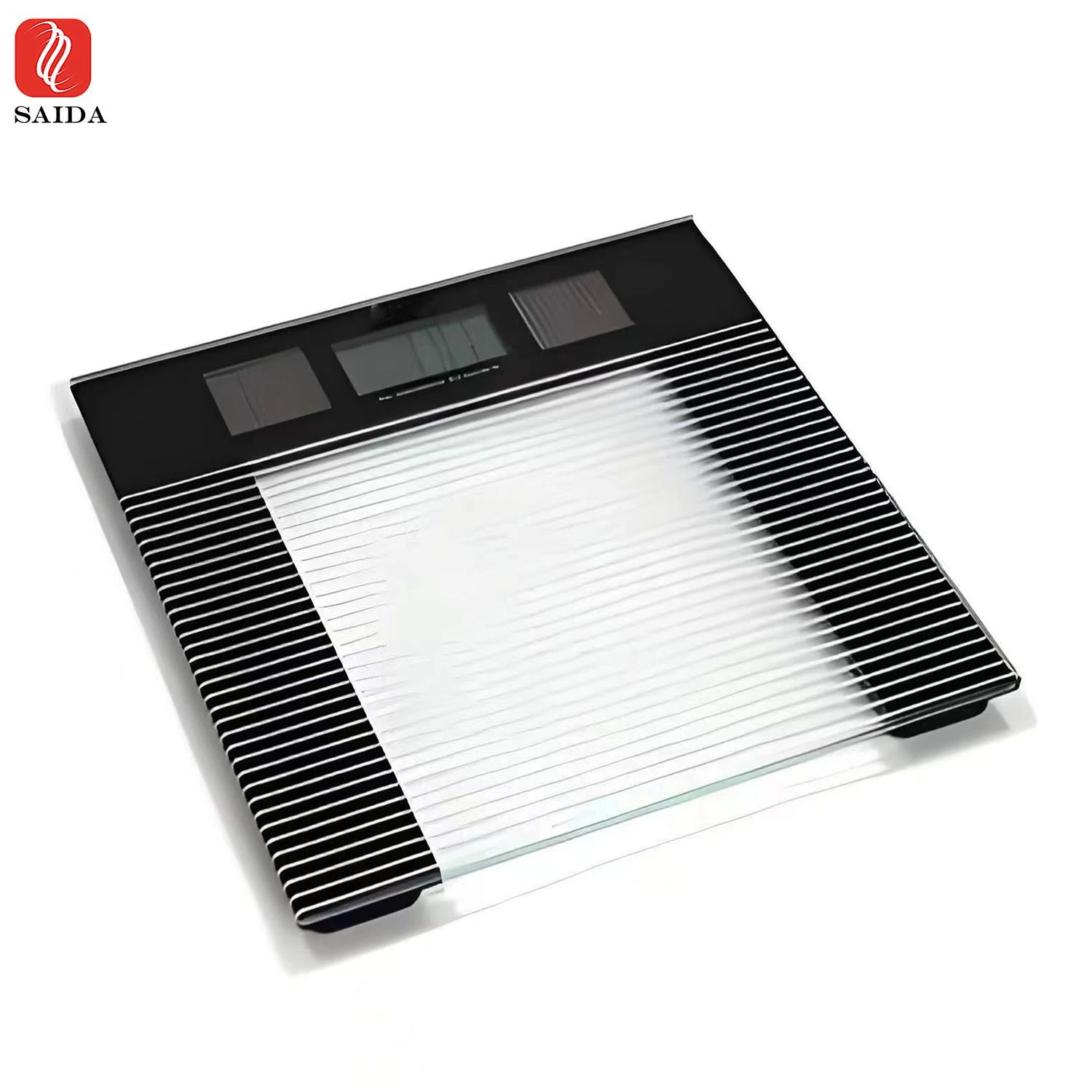

The Tempered ITO Electronic Cover Glass Panel for Body Weight Scale is supplied as an ITO-coated glass. Listed geometry: thickness 5mm 6mm Customezid, square shape. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Float Glass, Tempered Glass |
|---|---|
| Shape | Square |
| Thickness | 5mm 6mm Customezid |
| Applicable Crowd | Adult |
| Weight Range | 8kg-200kg |
| Function | Body Weight, Body Fat, Calories, Hydration |
| Display Type | LCD |
| Power | Battery |
| Suitable for | Boothroom |
| Appearance | Screen Printing Color |
| Color | Pink |
| Technique | Clear Glass, Coated Glass, Tempered Glass |
| Shap | Round, Square, Custom |
| Structure | Solid |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Product Name | Tempered ITO electronic scale glass panel for body weight scale |
|---|---|
| Material | tempered glass |
| Color | customezid |
| Standard | Saite Glass |
| Thinkness | 3mm,4mm,5mm custom |
| Size | round,square,custom |
| type | scale glass |
| Used | building glass |
What to specify when you request a quote
- Sheet resistance — state the target sheet resistance and its tolerance.
- Transmittance — give the minimum visible transmission at the resistance you need.
- Substrate and thickness — listed as “5mm 6mm Customezid”; name the base glass (soda-lime, borosilicate, alkali-free, quartz) and thickness.
- Size and cutting — give the cut size and whether edges are seamed.
- Pattern or electrodes — send a drawing for any etched pattern, bus bar or electrode.
