Product type: Convex-Concave. Application: Lighting. Model: OP-HB-50-90.
Overview

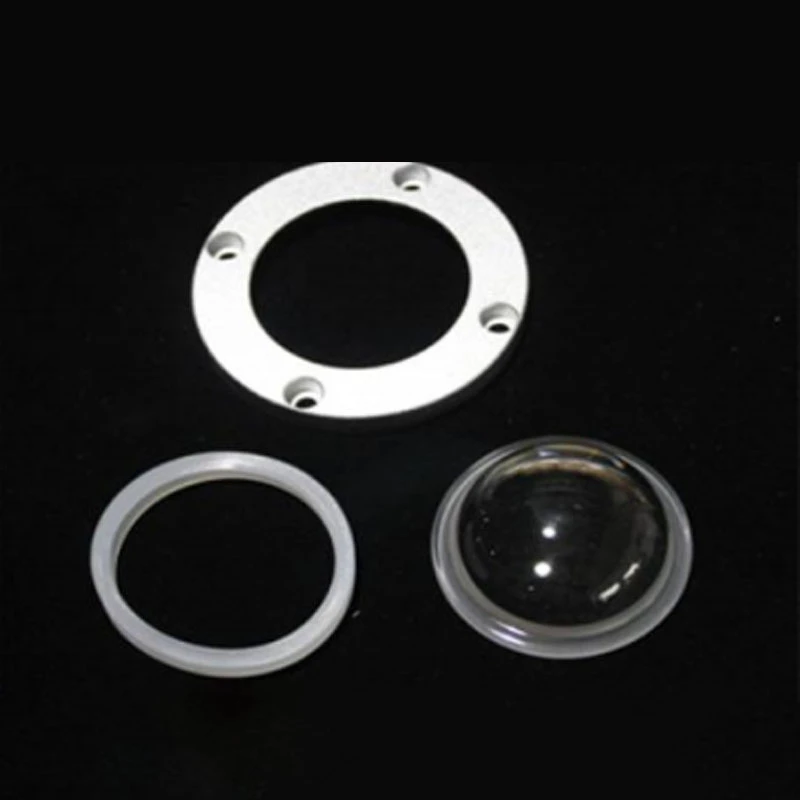

Transparent COB LED Glass Lens 50mm 90degree for Highbay Light Optical Lens is an optical lens made from Optical Glass. Listed geometry: aspheric shape. Optical / electrical data: transmittance 90%-95%. Coating: Polish. Typical applications: Lighting. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Convex-Concave |
| Shape | Aspheric |
| Transmittance | 90%-95% |
| Coating | Polish |
| Usage | Lighting |
| Model NO. | OP-HB-50-90 |
| Lenses Color | Clear |
| Glass | Brosilicate Glass / K9 |
| Supplier | Wuxi Opulent Led Lighting Technology Co., Ltd |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Polish”; list the band and reflectance or transmission target.
