Application: Furniture, Door, Building, Window, Display Cabinet, Shower Door, Solar Panel, Partiti. Model: UCG-02. Function: Insulated Glass, Low-E Glass, Heat Reflective Glass, Heat Absorbing Glass, Acid Etched Glass, Decorative Glass, High Light Transmittance / Low Iron Content.
Overview

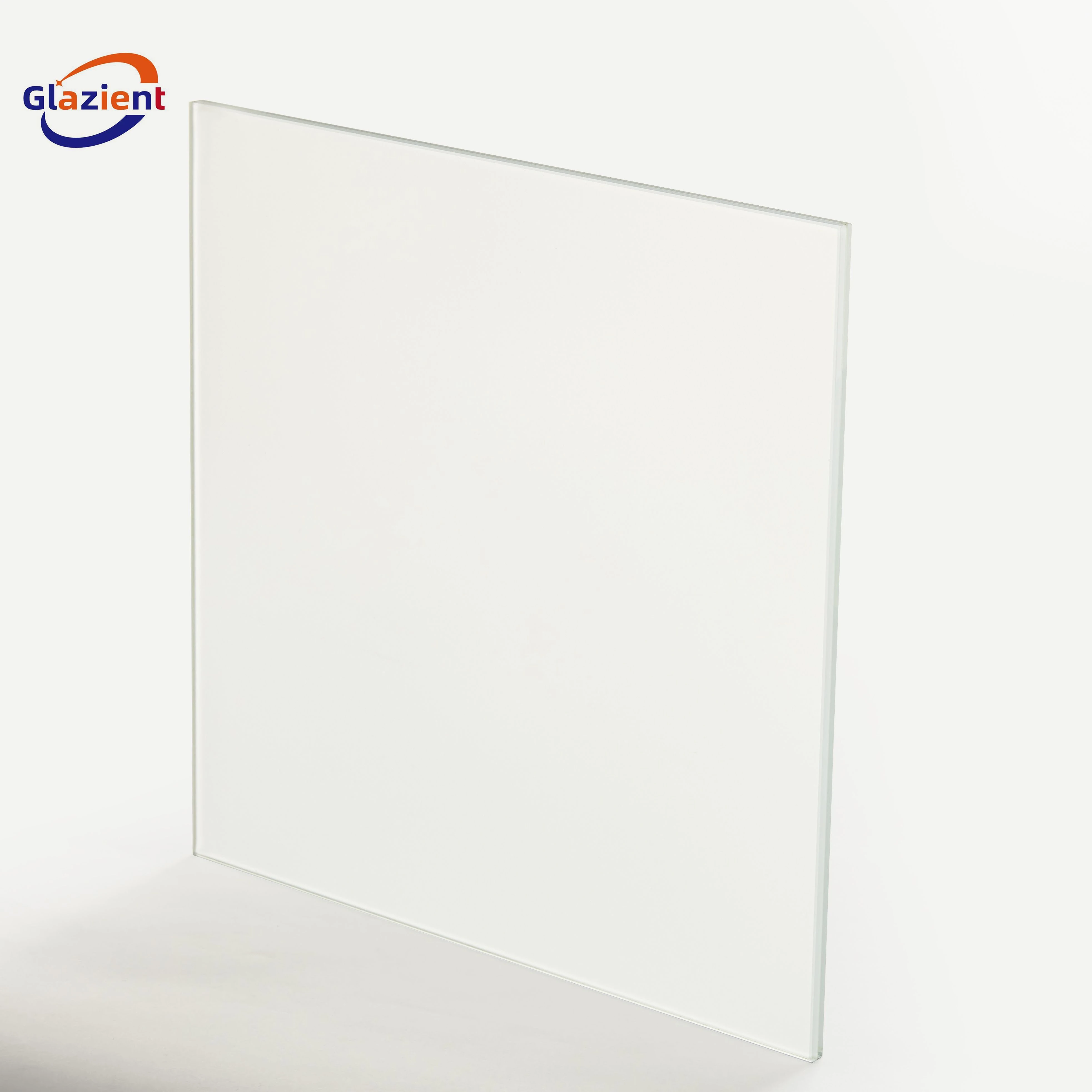

Ultra Clear Low Iron Float Glass Sheet 6mm 7mm 8mm for Building/Furniture: a building / safety glass made from Ultra Clear Low Iron Float Glass. Listed geometry: thickness 2mm~12mm or Customized, flat shape. Optical / electrical data: transmittance 91%~92%. Surface quality Smooth, Flat and High Transparency. Typical applications: Furniture, Door, Building, Window and Display Cabinet. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Flat |
|---|---|
| Thickness | 2mm~12mm or Customized |
| Surface Quality | Smooth, Flat and High Transparency |
| Usage | Furniture, Door, Building, Window, Display Cabinet, Shower Door, Solar Panel, Partiti |
| Model NO. | UCG-02 |
| Structure | Solid |
| Function | Insulated Glass, Low-E Glass, Heat Reflective Glass, Heat Absorbing Glass, Acid Etched Glass, Decorative Glass, High Light Transmittance / Low Iron Content |
| Nominal Thickness | mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm |
| Surface State | Floats Law Glass |
| Grade | Excellent Grade |
| Forming | Float Process |
| Workmanship | Automatic Float Production |
| Color | Clear |
| Reflectivity | 15%~30%,Depending on Coating |
| Iron Content | Ultra Low Iron ≤0.01%) |
| Light Transmittanc | 91%~92% |
| Edge Finish | Polished Edge / Cut Edge / Beveled Edge Available |
| Product Name | Ultra Clear Low Iron Float Glass Sheet |
| Glass Type | Ultra Clear Low Iron Float Glass |
| Glass Color | Crystal Clear |
| Processing | Tempering, Laminating, Insulating, Cutting |
| Inspection items may include | • Glass thickness |
| Supplier | Tianjin Glazient Trading Co., Ltd |
Technical data
| High Transparency | Brighter and clearer appearance than standard clear float glass |
|---|---|
| Low Iron Content | Reduced green tint for a more neutral and premium visual effect |
| Smooth Surface | Uniform flatness for architectural and processing applications |
| Multiple Thicknesses | Suitable for different processing and end-use requirements |
| Custom Size Service | Jumbo sheets and cut-to-size glass available |
| Processing Ready | Suitable for tempering, laminating, insulating, cutting and polishing |
| Wide Application | Used in building, furniture, display, solar and decorative industries |
| Export Packing | Protected with paper or cork and packed in seaworthy plywood crates |
| Iron Content | Lower iron content | Higher iron content |
| Edge Appearance | Low green tint | More visible green tint |
| Transparency | Higher visual clarity | Standard transparency |
| Color Presentation | More neutral and natural | May show a greenish tone |
| Suitable Applications | High-end architectural and decorative projects | General building and window applications |
| Typical Uses | Display cabinets, furniture, shower doors, solar, premium interiors | Windows, doors, general glazing |
What to specify when you request a quote
- Glass type and thickness — listed as “2mm~12mm or Customized”; name the glass and thickness.
- Temperature and pressure — give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — state tempering, lamination or the safety standard.
- Outline and edges — listed as “Flat”; send a drawing with outline, holes and edge finish.
