Product type: Plano-Convex Lenses. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: RAY-OL022#.
Overview

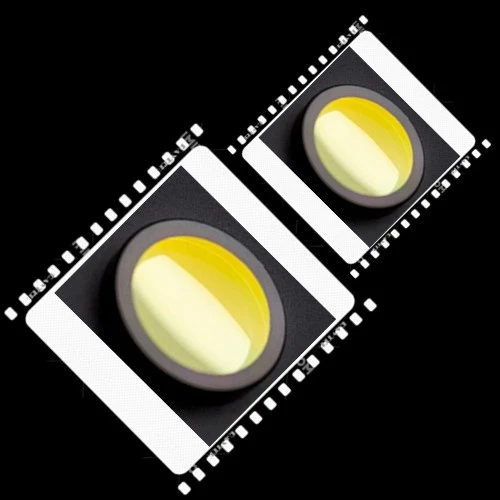

The Ultra Clear Nir UV Fused Silica Optical Lens for Exceptional Vision is supplied as an optical lens in Optical Glass (Optical Glass, UV Fused Silica Substrate substrate). Listed geometry: single-lens shape. Optical / electrical data: wavelength 650-1000nm or Custom Manufacturing, transmittance >95%. Coating: Nir Multilayer; surface quality 20-10 Scratch-Dig or Custom; flatness Lambda/8. Typical applications: Lighting, Medical, Optical, Photography and Laser. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Optical Glass, UV Fused Silica Substrate |
| Type | Plano-Convex Lenses |
| Shape | Single-lens |
| Transmittance | >95% |
| Coating | Nir Multilayer |
| Surface Quality | 20-10 Scratch-Dig or Custom |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | RAY-OL022# |
| Lenses Color | Clear |
| Ar Coating Wavelength | 650-1000nm or Custom Manufacturing |
| Coating Type | Nir Multilayer Ar.16 |
| Surface Flatness | Lambda/8 |
| Products Name | NIR Antireflection Coated UV Fused Silica Plano-Convex Lens |
| Lens Substrates | UV fused silica substrate for UV region, laser line and wide band applications |
| Applying Fields I | Laser electrooptic focusing |
| Applying Fields II | Collimating laser beam for laser equipment |
| Appling Fields III | Optical fiber marking machine |
| Main Optical Tech Specification | Lens Shape |
| Main Physical Size Specification | Products Code |
| Other Available Lens Substrates | UV fused quartz,Molded glass,Fused silicon glass,N-BK7,K9,K7,B270,D-LAK,D-ZK3,D-ZLaF52LA18 |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Applying Fields I: | Laser electrooptic focusing |
|---|---|
| Applying Fields II: | Collimating laser beam for laser equipment Collimating the optical fiber output |
| Appling Fields III: | Optical fiber marking machine Laser marking machine Laser cutting machine Other |
| Lens Shape | Plano-Convex | Surface AccuracyIrregularity | λ/8 |
| Lens Material | UV Fused Silica | Surface Accuracy, Power | 1.5 λ |
| Antireflection Coating | 650-1000 nm | Chamfers | 0-0.8 mm face width |
| Coating Type | NIR Multilayer | Chamfers Angle/Tolerance | 45° ±15°, typical |
| Coating Code | AR.16 | Focal LengthTolerance | ±1 % |
| Damage Threshold | 7.5 J/cm2, 10 ns pulses, 10 Hz at 1064 nm | Diameter Tolerance | +0/-0.1 mm |
| Surface Quality | 20-10 scratch-dig | Clear Aperture | ≥central 90% ofdiameter |
| Surface Flatness | λ/8 | OEM/ODM | Accepted |
| Products Code | Diameters | EFL | AR.film Wavelength |
| RT01031001 | 6.35mm | 12.7mm | 650-1000 nm |
| RT01031002 | 12.7mm | 16.0mm | 650-1000 nm |
| RT01031003 | 12.7mm | 19.0mm | 650-1000 nm |
| RT01031004 | 12.7mm | 25.4mm | 650-1000 nm |
| RT01031005 | 12.7mm | 38.1mm | 650-1000 nm |
| RT01031006 | 12.7mm | 50.2mm | 650-1000 nm |
| RT01031007 | 12.7mm | 75.6mm | 650-1000 nm |
| RT01031008 | 12.7mm | 25.4mm | 650-1000 nm |
| RT01031009 | 25.4mm | 33.0mm | 650-1000 nm |
| RT010310010 | 25.4mm | 38.1mm | 650-1000 nm |
| RT010310011 | 25.4mm | 50.2mm | 650-1000 nm |
| RT010310012 | 25.4mm | 62.9mm | 650-1000 nm |
| RT010310013 | 25.4mm | 75.6mm | 650-1000 nm |
| RT010310014 | 25.4mm | 88.3mm | 650-1000 nm |
| RT010310015 | 25.4mm | 100mm | 650-1000 nm |
| RT010310016 | 25.4mm | 125mm | 650-1000 nm |
| RT010310017 | 25.4mm | 150mm | 650-1000 nm |
| RT010310018 | 25.4mm | 175mm | 650-1000 nm |
| RT010310019 | 25.4mm | 200mm | 650-1000 nm |
| RT010310020 | 25.4mm | 350mm | 650-1000 nm |
| RT010310021 | 25.4mm | 500mm | 650-1000 nm |
| RT010310022 | 25.4mm | 750mm | 650-1000 nm |
| RT010310023 | 25.4mm | 1000mm | 650-1000 nm |
| RT010310024 | 50.8mm | 75.6mm | 650-1000 nm |
| RT010310025 | 50.8mm | 100mm | 650-1000 nm |
| RT010310026 | 50.8mm | 150mm | 650-1000 nm |
| RT010310027 | 50.8mm | 200mm | 650-1000 nm |
| RT010310028 | 50.8mm | 250mm | 650-1000 nm |
| RT010310029 | 50.8mm | 300mm | 650-1000 nm |
| RT010310030 | 50.8mm | 500mm | 650-1000 nm |
| Custom | Custom | Custom |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “Products Code”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “20-10 Scratch-Dig or Custom”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Nir Multilayer”; list the band and reflectance or transmission target.
