Product type: Optical Windows. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: RAY-OW039#.
Overview

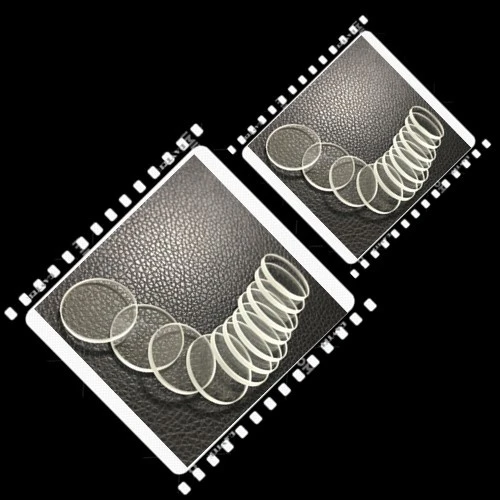

UV Fused Silica Parallel Window/Uvfs Parallel Windows/Fused Silica Optical Window/UV Lens: an optical lens in Optical Glass (UV Fused Silica substrate). Listed geometry: thickness 1-10mm or Custom Manufacturing, single-lens shape. Optical / electrical data: wavelength 245nm to 1550nm, transmittance >95%. Coating: Broadband Coating; surface quality 10-5 Scratch-Dig or Custom Manufacturing; flatness Lambda/20 at 632.8nm or Custom Manufacturing. Typical applications: Lighting, Medical, Optical, Photography and Laser. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | UV Fused Silica |
| Type | Optical Windows |
| Shape | Single-lens |
| Thickness | 1-10mm or Custom Manufacturing |
| Transmittance | >95% |
| Coating | Broadband Coating |
| Surface Quality | 10-5 Scratch-Dig or Custom Manufacturing |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | RAY-OW039# |
| Lenses Color | Clear |
| Surface Flatness | Lambda/20 at 632.8nm or Custom Manufacturing |
| Coating Wavelength | 245nm to 1550nm |
| Products Name | UV fused silica Parallel Window |
| Alias | UV fused silica Parallel Window, UV fused silica windows, fused silica windows, optical windows, fused silica optical windows, UV fused silica optical windows, etc |
| Lens Substrates | UV fused silica |
| Optional I | UV fused silica |
| Optional II | Equivalent UV fused silica) |
| Applying Fields I | Multiphoton imaging systems |
| Applying Fields II | Other |
| Main Optical Tech Specification | Lens Shape |
| Main Physical Size Specification | Products Code |
| Main Cooperation Materials Manufacturers | CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Optional I: | UV fused silicafrom CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
|---|---|
| Optional II: | Equivalent UV fused silica)Made in China, C-laser own brands |
| Applying Fields I: | Multiphoton imaging systemsIntracavity laser applicationsLaser protection windows |
|---|---|
| Applying Fields II: | Other |
| ***** |
| Lens Shape | Optical Parallel Window | Surface AccuracyIrregularity | – |
| Lens Material | UV fused silica | Surface Accuracy, Power | – |
| Antireflection Coating | Broadband coating | Chamfers | – |
| Coating Type | 245nm to 1550nm | Chamfers Angle/Tolerance | – |
| Coating Code | – | Focal LengthTolerance | – |
| Damage Threshold | – | Centration | – |
| Surface Quality | 10-5 scratch-dig20-10 scratch-dig | Clear Aperture | – |
| Surface Flatness | λ/20 at 632.8nmλ/10 at 632.8nm | OEM/ODM | Accepted |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “Products Code”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “10-5 Scratch-Dig or Custom Manufacturing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Broadband Coating”; list the band and reflectance or transmission target.
