Product type: Endoscope Lenses. Application: Optical.
Overview

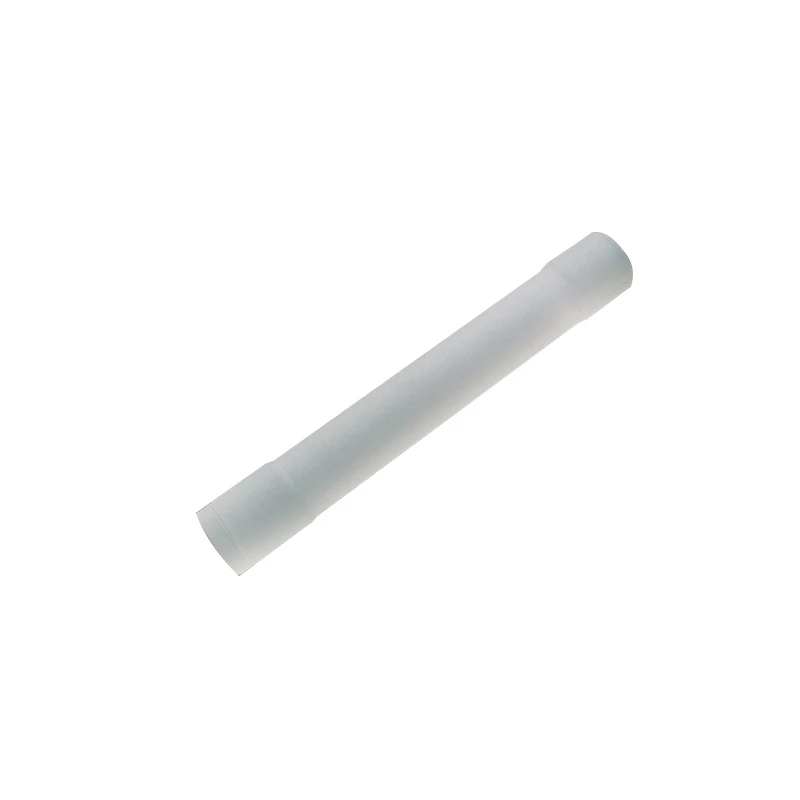

Wholesale K9 Glass 29mm Rod Lens Endoscope Lens is an optical lens made from Optical Glass. Listed geometry: endoscope lenses shape. Optical / electrical data: transmittance >95%. Typical applications: Optical. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Endoscope Lenses |
| Shape | Endoscope Lenses |
| Transmittance | >95% |
| Usage | Optical |
| Lenses Color | Clear |
| Supplier | Shenyang Ebetter Optics Co., Ltd. |
Technical data
| Material | N-BK7, UVFS, H-K50, |
|---|---|
| H-F4, H-BAK7, H-LAF10L, | |
| N-SK15, H-ZK21, H-F1, H-ZF4 | |
| Diameter | Ø0.6mm or customization |
| Type | Flat/Flat |
| Plano-Convex | |
| Plano-Concave | |
| Cemented | |
| Flatness | N<3, ΔN<0.5 for spherical surface |
| N λ/4~λ/8 for flat surface | |
| Centering | <5' |
| Surface Quality | 20/10~60/40 |
| Clear aperture | 90% |
| Coating | Uncoated, or customized |
| Material | Length | Dia1 | Dia2 | Dia3 | Dia4 | Dia5 | Dia6 | Dia7 | Dia8 |
| N-BK7, UVFS, H-K50, H-F4, H-BAK7, H-LAF10L, N-SK15, H-ZK21, H-F1, H-ZF4 | 11.4 | 2.1 | 2.0 | 1.9 | 1.8 | 1.7 | |||
| 14.7 | 2.1 | 2.0 | 1.9 | 1.8 | 1.7 | ||||
| 15 | 2.1 | 2.0 | 1.9 | 1.8 | 1.7 | ||||
| 17.6 | 2.2 | 2.1 | 2.0 | 1.9 | 1.8 | ||||
| 19.4 | 2.2 | 2.1 | 2.0 | 1.9 | 1.8 | ||||
| 20.2 | 2.2 | 2.1 | 2.0 | 1.9 | 1.8 | ||||
| 22.9 | 2.8 | 2.7 | 2.77 | 2.2 | 2.1 | 2.0 | 1.9 | 1.8 | |
| 23 | 2.8 | 2.7 | 2.77 | 2.2 | 2.1 | 2.0 | 1.9 | 1.8 | |
| 24 | 2.8 | 2.7 | 2.77 | 2.2 | 2.1 | 2.0 | 1.9 | 1.8 | |
| 29 | 3.5 | 3.2 | 2.77 | 3.0 | 2.8 | 2.7 | |||
| 29.5 | 3.5 | 3.2 | 3.0 | 2.8 | 2.7 | ||||
| 29.8 | 3.5 | 3.2 | 3.0 | 2.8 | 2.7 | ||||
| 46 | 6.6 | 6.5 | 6.0 | 5.5 |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
