Application: Medical, Civil, Labs, Astronomy, Laser, etc. Model: RAY-OM060#.
Overview

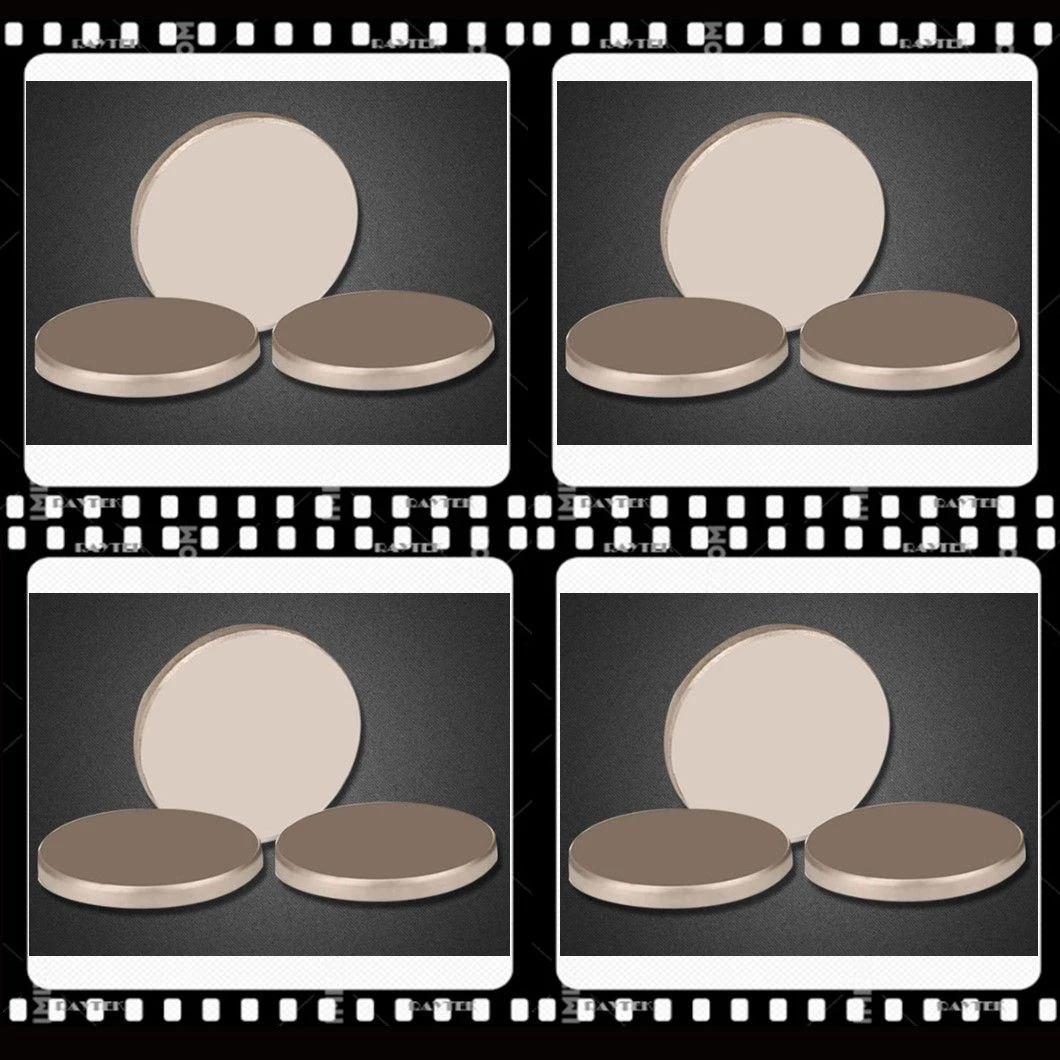

The Zerodur Broadband Metallic Mirrors/Zerodur Metallic Mirror/Metal Coating Mirror/Metal Lens is supplied as an optical mirror made from Schott Zerodur or Equivalent. Listed geometry: thickness 6.0mm, 12.7mm, 14.7mm, 17.7mm, 23.5mm, 29.5mm, aspheric shape. Optical / electrical data: wavelength 250-600nm, 450-700nm, 480-20000nm, 650-20000 Nm. Coating: Metal coatings covering UV-IR spectrum; surface quality 15-5 Scratch-Dig or Custom Manufacturing; flatness Lambda/10 at 632.8nm. Typical applications: Medical, Civil, Labs, Astronomy and Laser. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Schott Zerodur or Equivalent |
|---|---|
| Substrate | Schott Zerodur or Equivalent |
| Shape | Aspheric |
| Thickness | 6.0mm, 12.7mm, 14.7mm, 17.7mm, 23.5mm, 29.5mm |
| Wavelength Range | 250-600nm, 450-700nm, 480-20000nm, 650-20000 Nm |
| Coating | Metal coatings covering UV-IR spectrum |
| Surface Quality | 15-5 Scratch-Dig or Custom Manufacturing |
| Application | Medical, Civil, Labs, Astronomy, Laser, etc |
| Model NO. | RAY-OM060# |
| Surface Flatness | Lambda/10 at 632.8nm |
| Coating Type | UV Enhanced Al Coating/Vis/IR/Nir |
| Products Name | Zerodur Broadband Metallic Mirrors |
| Alias | Zerodur Broadband Metallic Mirrors, Zerodur Metallic Mirrors, Zerodur Metallic Reflector, Zerodur Metallic optical mirrors, Zerodur Aluminizing Mirrors, etc |
| Mirrors Substrates | Zerodur |
| Optional I | Zerodur |
| Optional II | Equivalent Zerodur |
| Applying Fields I | Applications requiring diffraction limit properties |
| Applying Fields II | Other |
| Main Optical Tech Specification | Tech Data |
| Popular Physical Size Specification | Mirror Size |
| Main Cooperation Materials Manufacturers | CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Optional I: | Zerodurfrom CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
|---|---|
| Optional II: | Equivalent ZerodurMade in China, C-laser own brands |
| Applying Fields I: | Applications requiring diffraction limit properties |
|---|---|
| Applying Fields II: | Other |
| ***** |
| Tech Data | Description |
|---|---|
| Wavelength Range | 250-600 nm, 450-700 nm, 480-20000 nm, 650-20000 nm |
| Angle of Incidence | 0-45° |
| Coating Type | VIS-IR Sliver CoatingNIR-IR Gold CoatingVisible-NIR Enhance AL Coating UV Enhanced AL Coating |
| Reflectivity | – |
| Damage Threshold | – |
| Material | Zerodur |
| Surface Quality | – |
| Surface Flatness | – |
| Clear Aperture | ≥central 80% of diameter |
| Chamfers | – |
| Chamfers Angle Tolerance | – |
| Wedge | – |
What to specify when you request a quote
- Material — listed as “Schott Zerodur or Equivalent”; name the glass or crystal.
- Geometry — listed as “Mirror Size”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “15-5 Scratch-Dig or Custom Manufacturing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Metal coatings covering UV-IR spectrum”; list the band and reflectance or transmission target.
