Product type: Convex Lens. Application: Lighting, Medical, Optical, Photography. Model: RAY-LH102#.
Overview

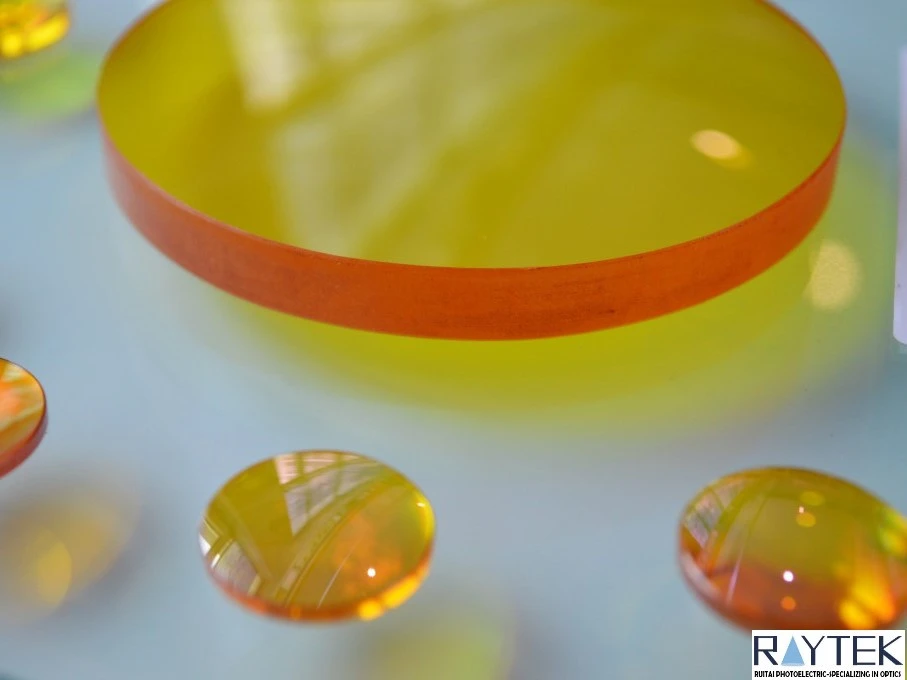

Zinc Selenide (ZnSe) Plano Convex (PCX) Lenses/Plano-Convex Lenses is an optical lens made from Optical Glass. Optical / electrical data: wavelength 488-694 Nm/700-950nm. Coating: Dielectric Coating; surface quality 40-20 Scratch-Dig or Custom Manufacturing; flatness Lambda/10 at 632.8nm with Power Removed. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Convex Lens |
| Shape | Customized |
| Wavelength Range | 488-694 Nm/700-950nm |
| Surface Quality | 40-20 Scratch-Dig or Custom Manufacturing |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | RAY-LH102# |
| Surface Flatness | Lambda/10 at 632.8nm with Power Removed |
| Coating Type | Dielectric Coating |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Material | CVD Laser Grade Zinc Selenide |
|---|---|
| Diameter error | +0.0/-0.1mm |
| Effective focus error | ±1% |
| Surface finish | 40-20 |
| Design wavelength | 10.6μm |
| Center thickness error | ±0.2mm |
| Lens centering error | <3 arc minutes |
| Chamfer | 0.2mmX45° |
| Coating | anti-reflection coating or customized |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 Scratch-Dig or Custom Manufacturing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Dielectric Coating”; list the band and reflectance or transmission target.
