Product type: Aspherical Lenses. Application: Lighting, Medical, Optical, Photography. Model: TT Lens 57.
Overview

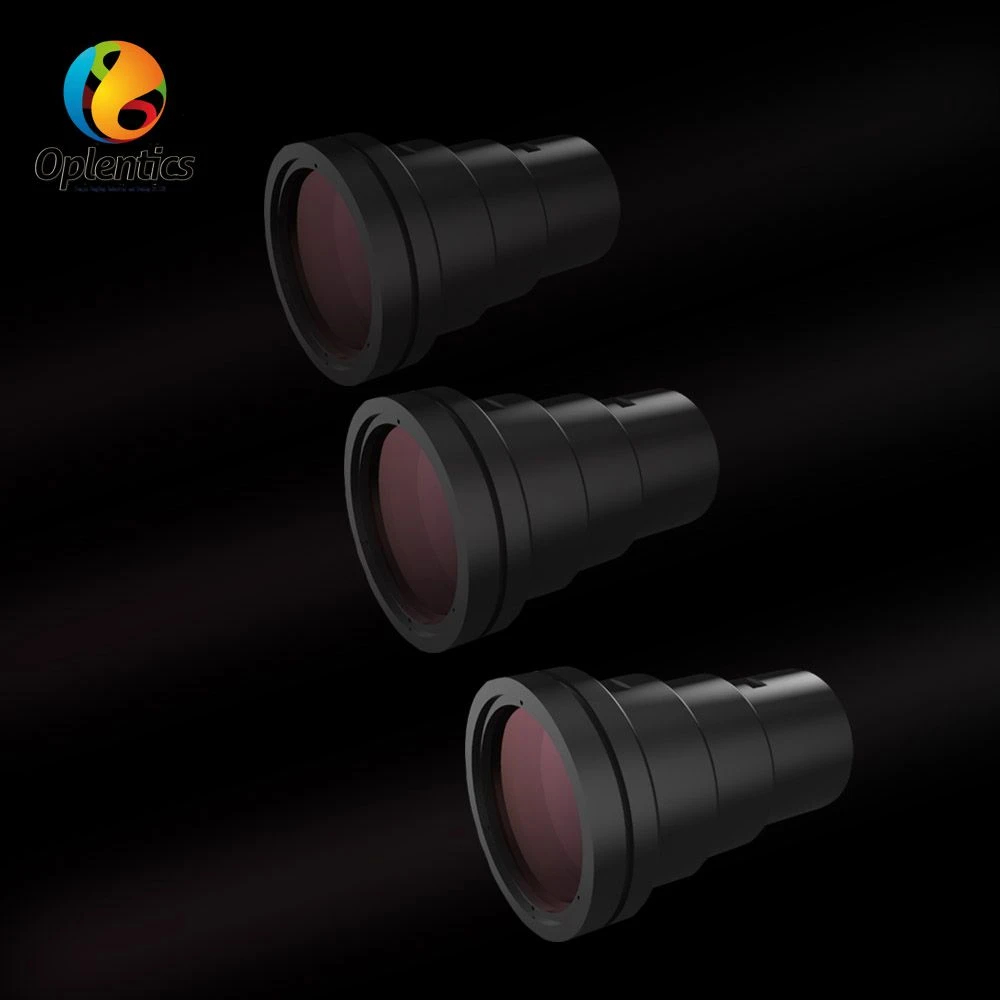

Zmax Optics Design Production Research and Develop Optical Lenses: an optical lens made from Optical Glass. Listed geometry: thickness as Required, single-lens shape. Optical / electrical data: transmittance >95%. Coating: HMC; surface quality as Required. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Aspherical Lenses |
| Shape | Single-lens |
| Thickness | as Required |
| Transmittance | >95% |
| Coating | HMC |
| Surface Quality | as Required |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | TT Lens 57 |
| Lenses Color | Clear |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Name | Optical Lens Design |
|---|---|
| 1 | SLO Illumination light path of fundus camera |
| 2 | Infrared Galileo Telescope |
| 3 | Off-axis system design |
| 4 | Aspheric design |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “as Required”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “HMC”; list the band and reflectance or transmission target.
