Product type: Laser Lenses. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: RAY-XS094#.
Overview

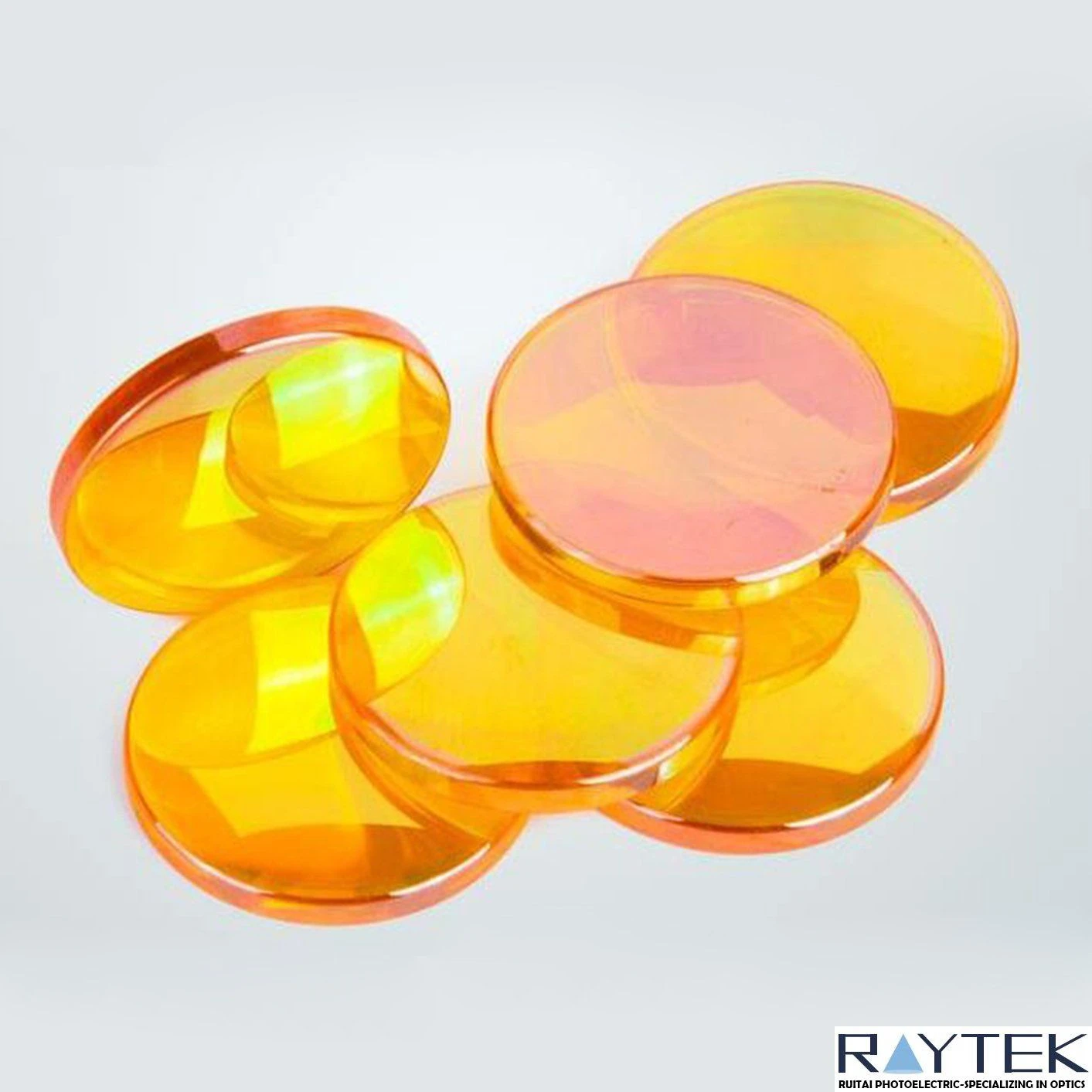

Znse CO2 Laser Lens/Infrared Laser Lens/CO2 Laser Lens/Optical Lens is an optical lens in Optical Glass (Znse(Zinc Selenide) substrate). Listed geometry: single-lens shape. Optical / electrical data: transmittance Central 90% of Diameter. Supplied uncoated; surface quality 40-20 Scratch-Dig or Custom Manufacturing. Listed for Lighting, Medical, Optical, Photography and Laser applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Znse(Zinc Selenide) |
| Type | Laser Lenses |
| Shape | Single-lens |
| Transmittance | Central 90% of Diameter |
| Coating | Uncoated |
| Surface Quality | 40-20 Scratch-Dig or Custom Manufacturing |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | RAY-XS094# |
| Lenses Color | Clear |
| Efl | 5.13-7.5inches or Custom Manufacturing |
| Edge Thickness | 7.1-9.65mm or Custom Manufacturing |
| Transmission | More Than 99.3% |
| Lens Substrates | ZnSe(zinc selenide) |
| Optional I | ZnSe(zinc selenide) |
| Optional II | Equivalent ZnSe(zinc selenide) |
| AR. Coating | Rautel antireflective coating. |
| Main Applying | 1).CO2 laser Focus, |
| Main Optical Tech Specification | Lens Shape |
| Main Cooperation Materials Manufacturers | CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Optional I: | ZnSe(zinc selenide)from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
|---|---|
| Optional II: | Equivalent ZnSe(zinc selenide)Made in China, C-laser own brands |
| Antireflection Coating | Raytek | Reflectivity | – <0.2% |
| Coating Type | – | Edge Thickness Tolerance | -±0.1 mm |
| Coating Code | – | Diameter Tolerance | – +0.0/-0.1 mm |
| Transmission | – >99.3% | Centration | ≤3 arc min |
| Absorption | <0.20% | Clear Aperture | ≥central 90% ofdiameter |
| Surface Flatness | – | OEM/ODM | Accepted |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 Scratch-Dig or Custom Manufacturing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “7.1-9.65mm or Custom Manufacturing”; state centration and edge chamfer.
- Coating — listed as “Uncoated”; list the band and reflectance or transmission target.
