Selecting Glass Bottom Substrates for Microplates and Labware

Why Glass Material and Coating Selection Determines Microplate Performance

The glass bottom substrate serves as the optical interface in microplates used for high-content screening, confocal microscopy, and cell-based assays. Even minor deviations in flatness, thickness, or auto-fluorescence can degrade imaging quality and slow automated focusing. Specifying the right glass type and surface treatment early in design reduces reject rates and ensures compatibility with target instruments. This guide compares the primary glass materials and coatings available for microplate bottoms, highlighting trade-offs that impact procurement and engineering decisions.

Available Glass Materials as Labelled Options

Precision glass manufacturers can supply microplate bottom substrates in several standard and specialty glass types, each with a distinct performance profile. The most common options include:

• Fused Silica: Excellent UV transmission (≥200 nm) and very low auto-fluorescence.
• Borosilicate Glass: Low CTE, good thermal shock resistance, and high flatness for visible-light imaging.
• Soda-Lime Glass: Economical for basic transmitted-light applications; exhibits higher auto-fluorescence.
• Aluminosilicate Glass: Enhanced hardness and scratch resistance, suitable for repeated cleaning or sterilization.
• Sapphire: Single-crystal, extremely hard, broad transmission from UV to mid-IR, and high cost.
• Optical Glass (e.g., N-BK7): Precise refractive index and high visible transmission for specialized imaging.

Properties and Trade-offs of Each Glass Type

When selecting a substrate, engineers balance optical and mechanical properties against budget and supply chain considerations. Key differentiators include:

• Optical Transmission: Fused silica excels in UV, while borosilicate and soda-lime transmit well in the visible spectrum. Sapphire offers the widest range, from 150 nm to 5 µm.
• Coefficient of Thermal Expansion (CTE): Borosilicate’s low CTE minimizes warping during temperature cycling; fused silica’s is even lower, while soda-lime expands more, which can affect bonding to polymer plate frames.
• Chemical Resistance: Borosilicate and aluminosilicate resist most acids and solvents. Soda-lime is more susceptible to leaching and staining.
• Hardness & Flatness: Sapphire and aluminosilicate provide superior scratch resistance and flatness under abrasive conditions. Borosilicate achieves <1 µm flatness for high-resolution imaging.
• Cost: Soda-lime is the most cost-effective; borosilicate is mid-range; fused silica and optical glass are higher; sapphire is the most expensive, reserved for niche applications.

Coating and Surface-Treatment Options

Beyond the base material, surface coatings and treatments tailor the substrate’s optical, electrical, or wetting behavior. Common options include:

• Anti-Reflective (AR) Coatings: Reduce reflection losses across specific wavelength bands, improving light throughput. Available in single-layer or multi-layer designs.
• Mirror Coatings: Reflective aluminum or dielectric coatings convert the bottom into a reflector for specialized assays.
• ITO (Indium Tin Oxide) Coatings: Transparent conductive layers enable electrical stimulation or heating, useful in live-cell imaging or electrochemical labware.
• Hydrophobic/Oleophobic Treatments: Modify surface energy to control liquid spreading or protein adhesion, reducing background noise.
• Tempering & Chemical Strengthening: Enhance mechanical robustness for automated handling and plate processing.

Each coating introduces trade-offs: added cost, potential reduction in transmission, and compatibility with downstream bonding or sterilization. AR coatings must be designed for the intended wavelength and angle of incidence to avoid performance loss.

How to Match Material and Coating to Your Application

Start with the imaging modality and wavelength range. Confocal and fluorescence microscopy in the visible range often pair well with borosilicate glass and a broadband AR coating. UV microscopy calls for fused silica with a UV AR coating. For high-throughput screening where plates endure automated handling and washing, aluminosilicate or sapphire substrates with chemical strengthening reduce chipping. When electrical control is needed, ITO-coated borosilicate or soda-lime provides a transparent heating element. All substrates can be supplied in compliance with RoHS and REACH directives; our materials are sourced from certified suppliers to meet global regulatory requirements.

Request a Material Recommendation

Selecting the optimal glass bottom substrate often involves balancing optical, thermal, and cost criteria unique to your labware design. If you need guidance, our engineering team can analyze your spectral, dimensional, and volume requirements and recommend a configuration—from material grade to coating stack. Contact us to start a technical discussion and receive a no-obligation material proposal.

Optimal Glass Substrate for High-Content Screening and Confocal Imaging

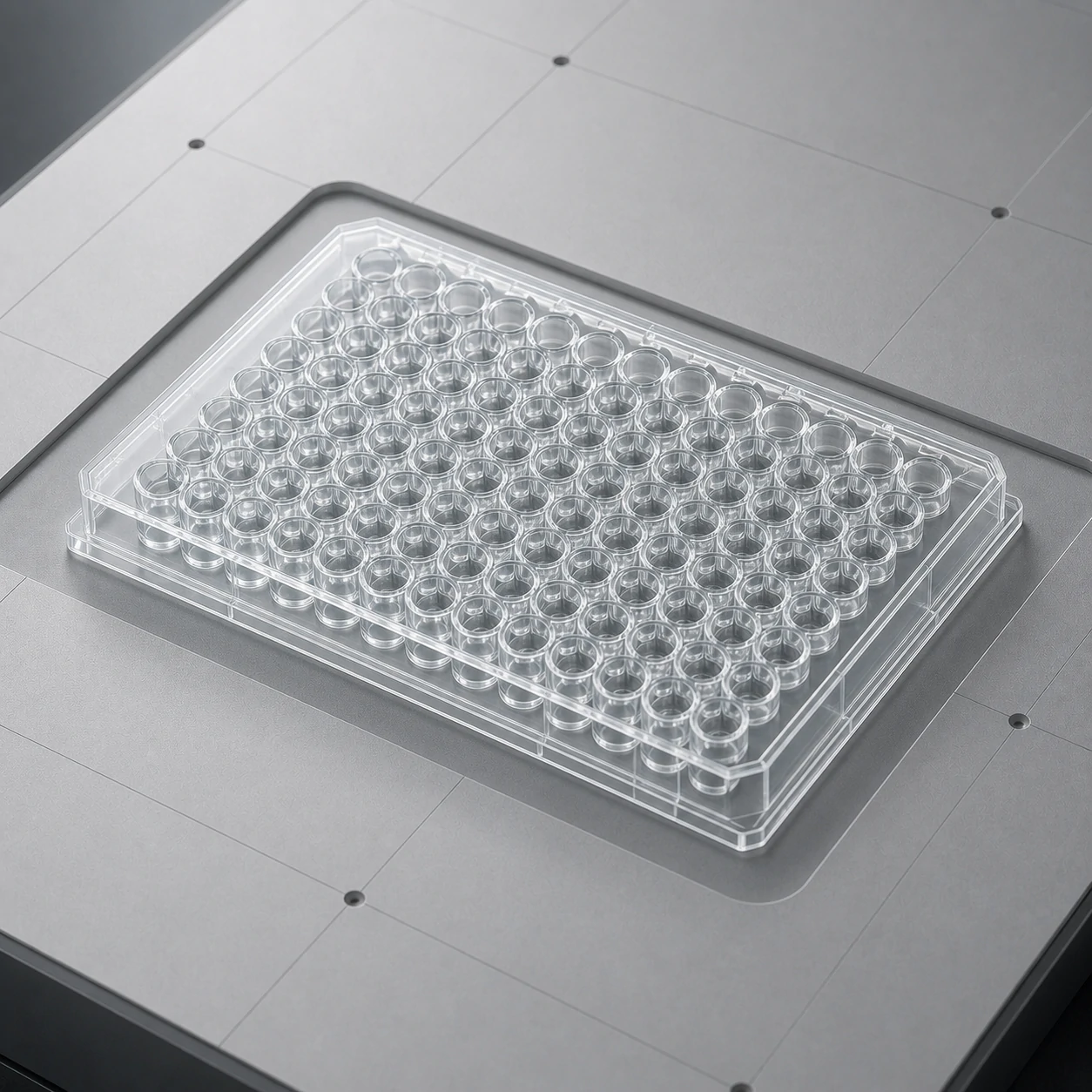

For high-content screening (HCS) and confocal microscopy, borosilicate glass (commonly Borofloat® 33 or D 263® T eco) delivers the preferred balance of optical clarity, flatness, and cost, making it the most widely adopted glass bottom substrate for Glass-Bottom High-Content Screening Microplate formats such as 96, 384, and 1536 wells. Its low autofluorescence and high transmission from 350 nm to 2500 nm suit the majority of fluorescence and brightfield assays. When UV excitation or detection below 300 nm is required, fused silica or quartz substrates become necessary, though at a higher material cost. Sapphire microplates, while offering extreme scratch resistance and a broad transmission window from 150 nm to 5 µm, are typically reserved for specialized abrasive or high-temperature environments.

Key Performance Attributes for Labware Glass Substrates

• Thickness: Standard glass bottom thicknesses range from 100 µm to 500 µm. A 175 µm thickness is common for high‑resolution imaging because it minimizes spherical aberration with high‑NA objectives while maintaining mechanical integrity.
• Flatness: A flatness of λ/4 or better (measured over the well area) ensures consistent focus plane across the plate, reducing autofocus time and improving throughput.
• Surface Quality: Scratch-dig specifications of 60‑40 or finer (e.g., 40‑20) are typical for imaging-grade plates. Fewer defects mean less stray light and higher contrast.
• Optical Transmission: Uncoated borosilicate transmits >90% from 350 nm to 2500 nm. AR‑coated variants boost transmission to >98% at key wavelengths, lowering background noise.
• CTE Compatibility: Borosilicate’s low coefficient of thermal expansion (~3.25 × 10⁻⁶/K) minimizes stress when bonded to polystyrene frames during temperature fluctuations.

Key Facts

• Standard glass bottom thickness for imaging microplates is 175 µm, with options from 100 µm to 500 µm.
• Borosilicate glass offers flatness better than 1 µm per inch and inherently low autofluorescence.
• Fused silica substrates deliver >85% transmission down to 200 nm, enabling UV absorbance and fluorescence applications.
• An anti‑reflection coating can cut reflection losses from ~4% to below 0.5%, significantly improving signal-to-noise ratios.
• All glass bottom plates conform to ANSI/SLAS footprint and well‑spacing standards for seamless automation integration.

Manufacturing Tolerances and Surface Quality

Achieving uniform optical performance across every well demands tight process control. Double‑side lapping and chemical‑mechanical polishing produce substrates with thickness tolerances of ±10 µm, total thickness variation (TTV) under 5 µm, and surface roughness Ra < 1 nm. These parameters ensure negligible well‑to‑well focal shift, critical for automated high‑content screening systems. Edge grinding prevents stress risers and chipping during plate assembly, while cleanroom packaging (typically Class 1000 or better) preserves the surface quality. For plates used in super‑resolution or TIRF microscopy, a scratch‑dig of 20‑10 is achievable with additional precision polishing steps.

Supply Chain Considerations: MOQ, Lead Times, and Certifications

When sourcing glass bottom substrates, procurement teams evaluate several commercial factors:

• Minimum Order Quantity (MOQ): MOQs depend on well format and customization level. Standard 96‑well plates in borosilicate typically have moderate MOQs, while custom‑sized, coated, or fused silica plates may require higher volumes to justify tooling.
• Lead Times: Uncoated, off‑the‑shelf plates can ship within weeks. Custom‑coated plates or non‑standard geometries often take several weeks to months, as they require coating deposition, curing, and additional inspection steps.
• Certifications: Reputable manufacturers hold ISO 9001:2015 for quality management. For diagnostic or medical device applications, look for ISO 13485 certification and compliance with RoHS, REACH, and possibly USP Class VI for biocompatibility. Lot traceability and Certificate of Conformance (CoC) are standard deliverables.
• Sterility: Plates can be supplied sterile (gamma irradiation or EtO) or non‑sterile. Specify the required sterility assurance level (SAL) during inquiry.

Customization Options for OEM Labware Developers

Beyond standard configurations, manufacturers support custom programs for high-content-screening microplates with glass bottom designs. Typical customizations include:

• Well Geometry: Round, square, or rectangular wells; multi‑well formats from 6 to 1536 wells; and well‑to‑well spacing tuned for specific robotic handlers.
• Bonding Method: Low‑fluorescence UV‑curable adhesives, solvent‑less thermal bonding, or anodic bonding (for all‑glass plates) ensure optical clarity and chemical resistance.
• Surface Chemistry: Silanization, poly‑D‑lysine, collagen coating, or hydrophilic treatments to promote cell attachment or reduce non‑specific binding.
• Lid and Sealing Options: Custom lid designs with gas‑exchange membranes or adhesive optical sealing films can be included.

For a tailored material recommendation or to request a quote, please send your well format, target wavelength range, and any surface treatment requirements to our engineering team. Submit your drawings or specifications for a feasibility review and a detailed proposal.
