Fine-Pitch Hybrid Bonding’s High-Volume Push Tests Back-End Limits

Key Figures
This story is anchored to specific dates or periods such as 2025. Those reference points make it easier to track how the situation develops over time.
- Date / period: 2025 Several toolmakers have indicated that next‑generation hybrid bonding systems will be demonstrated at SEMICON West and the Electronic Components and Technology Conference (ECTC) in 2025, with early adopters targeting 1.5 µm pitch and…
Chiplet-based system designers seeking higher interconnect density are confronting a critical scaling barrier: fine-pitch hybrid bonding, already proven in low-volume production, must now demonstrate it can meet the throughput and cost demands of high-volume manufacturing while retaining the front-end-grade precision that makes it viable.
The Precision-Throughput Dilemma
Hybrid bonding is unique among advanced packaging techniques because it fuses dielectric and metal interfaces simultaneously, creating sub-micron pitch connections without solder bumps or bumps of any kind. This capability, however, hinges on extreme surface cleanliness, angstrom-level planarization, and nanometer‑scale alignment—conditions historically associated with front‑end semiconductor fabs. Transitioning to back-end lines, where wafer flow is measured in thousands of units per hour and capital costs must be tightly controlled, forces a reexamination of every process step.
Surface Preparation and Control

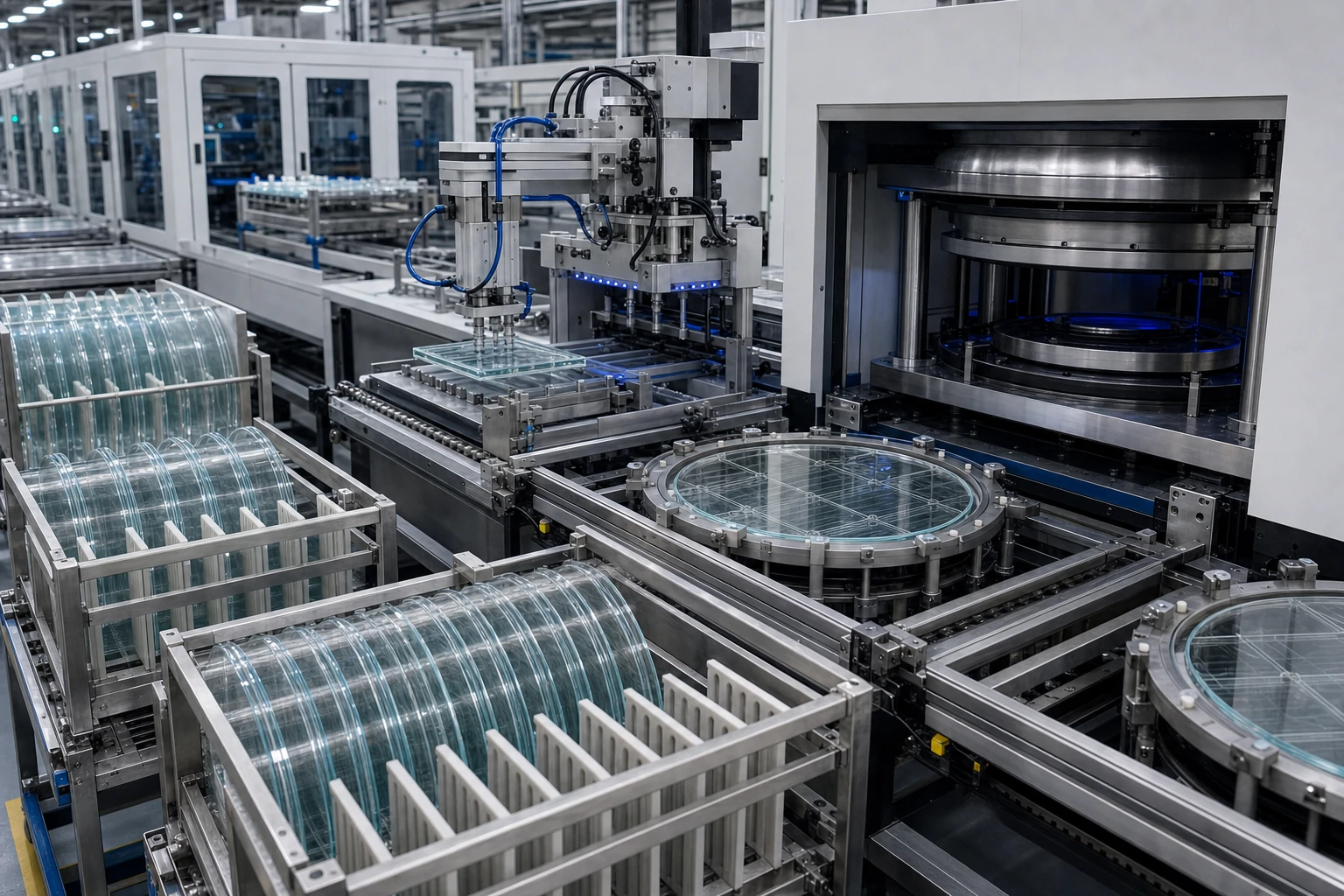

The starting surface after chemical‑mechanical planarization must exhibit roughness values below 0.5 nm Ra, with virtually no organic residues or particulates. In a front‑end environment, such specifications are routine; in a packaging facility, maintaining them at 300 mm wafer scale and with cycle times measured in minutes rather than hours remains a formidable challenge. Techniques derived from glass wafer bonding and MEMS fabrication are being adapted, including plasma‑assisted activation, temporary protective coatings, and integrated cleaning modules that combine megasonic agitation with advanced drying. Nevertheless, the sensitivity of exposed copper‑to‑copper mating surfaces means that any process excursion—even a single airborne particle—can render an entire die stack unusable.
Alignment and Overlay Accuracy
Die-to-wafer hybrid bonding operates with an overlay budget that can be as tight as ±50 nm for leading‑edge pitches. Current aligners achieve single‑digit‑nanometer precision in low‑volume runs, but their speed is limited by stage inertia, thermal drift, and the time required for pattern recognition. Scaling to high‑volume manufacturing demands new actuator designs, faster image‑processing pipelines, and sometimes a global alignment approach that compensates for wafer‑level distortions in real time. Equipment builders are now embedding machine‑learning algorithms to predict drift and adjusting alignment marks on the fly, allowing a single tool to handle both precision and throughput without an intermediate metrology stop.
Back-End Economics and Infrastructure
Cost, rather than technical feasibility, often dictates the pace of adoption. A back‑end line operating at 600–1000 wafers per hour operates on a fundamentally different economic model than a front‑end tool that may process a fraction of that volume but spreads its amortization over high‑value logic dies. For hybrid bonding to become a mainstream packaging option, the total cost per good die must align with the margins typical of outsourced semiconductor assembly and test (OSAT) providers.
Equipment Roadmaps
Tool suppliers are responding with cluster platforms that integrate plasma activation, alignment, and bonding within a single vacuum or controlled‑atmosphere environment, minimizing wafer travel and exposure. Parallel‑processing chambers, multi‑head die placement, and hot‑chuck technologies that accelerate the bonding anneal are all under active development. In-line metrology, once relegated to off‑line statistical process control, is moving into the production path; laser scatterometry and high‑speed interferometry now provide sub‑second feedback on surface quality and bond voids, allowing real‑time adjustment without breaking the throughput cadence.
Industry Collaboration and Standards
The absence of accepted common ground could fragment the ecosystem. The Heterogeneous Integration Roadmap (HIR) sets targets for pitch, alignment, and throughput that guide R&D investments, while SEMI task forces are drafting standards for carrier formats, interface protocols, and cleanliness measurement methodologies. Such efforts are particularly important for glass carrier and handling technologies, where wafer quality control metrics must be harmonized so that upstream suppliers and downstream integrators speak the same language. A unified compliance framework would lower the barrier for equipment interoperability and second‑source qualification, both essential for volume ramp.
Next Checkpoint: Pilot Lines and Upcoming Events
The most critical near‑term validation will come from pilot lines operated by leading foundries and OSATs, where process flows are stressed under real‑world cycle‑time and cost constraints. Several toolmakers have indicated that next‑generation hybrid bonding systems will be demonstrated at SEMICON West and the Electronic Components and Technology Conference (ECTC) in 2025, with early adopters targeting 1.5 µm pitch and below. The industry will be watching closely for yield data, throughput figures, and any shift in the cost model that signals whether fine‑pitch hybrid bonding can indeed cross the chasm from niche production to high‑volume mainstream.
| Parameter | Current Production Level | High‑Volume Target | Primary HVM Challenge |
|---|---|---|---|
| Bond Pitch | 10 µm – 5 µm | ≤ 2 µm | Alignment precision at speed |
| Alignment Accuracy | < 100 nm (best cases ~50 nm) | ≤ 50 nm, striving for 30 nm | Thermal expansion and stage dynamics |
| Surface Roughness (Ra) | < 0.5 nm | Same, but sustained over full wafer flow | Contamination control in back‑end environment |
| Throughput (WPH) | ~100 wafers per hour (low‑volume tools) | > 500 wafers per hour | Tool footprint and parallelization cost |
| Cost per Good Die | Comparable to advanced flip‑chip | Must lower to compete with μ‑bump approaches | Capital amortization and yield learning curve |
Why This Matters
Fine-pitch hybrid bonding enables the ultra-dense interconnects needed for chiplet architectures in high-performance computing, AI, and mobile processors. Overcoming the volume and cost barrier will determine whether the technology becomes the dominant advanced packaging platform or remains limited to low-volume, high-cost applications.
FAQ
What is fine-pitch hybrid bonding?
It is a die-to-wafer or wafer-to-wafer integration technique that creates sub-micron pitch electrical connections by directly bonding copper pads embedded in a dielectric layer, eliminating solder bumps and underfill. The process requires extremely flat, clean surfaces and precise alignment.
Why is high-volume manufacturing challenging for fine-pitch hybrid bonding?
The surface preparation and alignment accuracies required (roughness < 0.5 nm, overlay < 50 nm) are typical of front-end fabs. Back-end packaging lines must maintain these specs at much higher throughput and lower cost per wafer, which pushes current tool speed, contamination control, and metrology.
What are the key technical requirements for surface and alignment control?
Surfaces need sub-nanometer roughness after planarization and absolute cleanliness to avoid void formation. Alignment must compensate for die placement errors within tens of nanometers, often using advanced pattern recognition, real-time drift compensation, and sometimes global wafer-level distortion mapping.
How are equipment manufacturers addressing the back-end cost challenge?
They are developing cluster tools that integrate cleaning, activation, alignment, and bonding in one footprint, with parallel processing and in-line metrology. Standardization efforts through organizations like SEMI and the Heterogeneous Integration Roadmap aim to reduce fragmentation and enable second-source suppliers.
