Product type: Convex Lens. Application: Lighting, Medical, Optical, Photography, Astronomy.
Overview

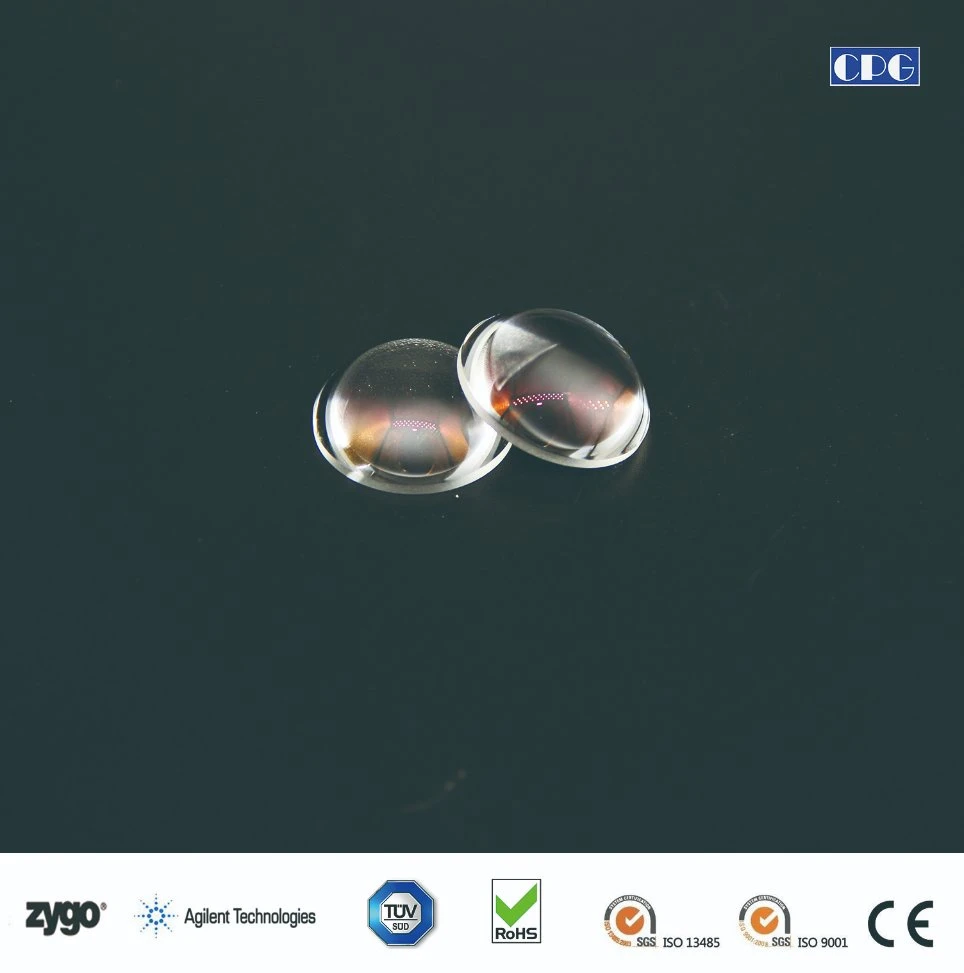

2mm Diameter Schott N-BK7 Uncoated Plano-Convex Lenses: an optical lens made from Schott N-BK7. Listed geometry: diameter 2.0+0.0/-0.1mm, single-lens shape. Optical / electrical data: transmittance 90%-95%. Coating: HMC; surface quality 10/5; flatness 1/10 Lambda. Typical applications: Lighting, Medical, Optical, Photography and Astronomy. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Schott N-BK7 |
|---|---|
| Type | Convex Lens |
| Shape | Single-lens |
| Diameter | 2.0+0.0/-0.1mm |
| Transmittance | 90%-95% |
| Coating | HMC |
| Surface quality | 10/5 |
| Parallelism | <3" |
| Clear aperture | >90% |
| Usage | Lighting, Medical, Optical, Photography, Astronomy |
| Lenses Color | Clear |
| Materials | Schtt BK7/Fused Silica |
| RMS | 4A/1A |
| Surface flatness | 1/10 Lambda |
| Coatings | Upon request |
| Center thickness | 1.0+/-0.1mm |
| ROC1 | Infinity |
| ROC2 | 2.1mm+/-3%,CX |
| Centerness | <3arcmin |
| Chamfer | 0.1-0.3mm(LW)x45deg |
| Standard | MIL-PRF-13830B |
| CPG is also an ISO | 9001&14001 certified manufacture, we deliver fast and provide best cost performance ratio for our customers. |
| Package detail | Optics are packed with Capacitor paper, white paper, custom-made plastic containers etc |
| Supplier | CPG OPTICS LIMITED |
Technical data
| Items | Description | |
| Spherical Lenses | Material: | Schott N-BK7 |
| Diameter: | 2.0+0.0/-0.1mm | |
| Center thickness: | 1.0+/-0.1mm | |
| ROC1: | Infinity | |
| ROC2: | 2.1mm+/-3%,CX | |
| Surface quality: | S1&S2:S-D 10-5 | |
| Centerness: | <3arcmin | |
| Clear aperture: | >90% | |
| Chamfer: | 0.1-0.3mm(LW)x45deg | |
| Coating: | Uncoated | |
| Standard: | MIL-PRF-13830B |
What to specify when you request a quote
- Material — listed as “Schott N-BK7”; name the glass or crystal.
- Geometry — listed as “2.0+0.0/-0.1mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “10/5”; quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “0.1-0.3mm(LW)x45deg”; state centration and edge chamfer.
- Coating — listed as “HMC”; list the band and reflectance or transmission target.
