Product type: Clear Quartz Pipe. Application: Transparency. Model: TJ-0009516.
Overview

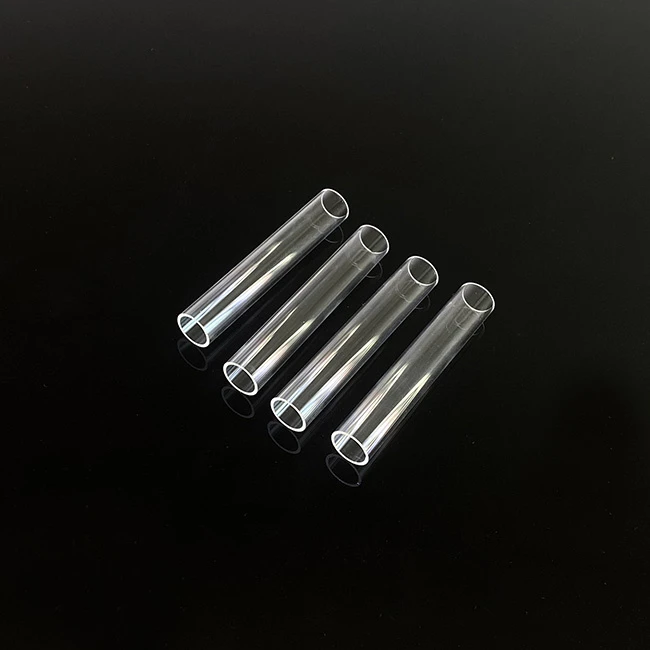

Clear Round Fused Silica Glass Tube Large Diameter Clear Quartz Glass Tube Borosilicate Clear Glass Bubble Pipe is a precision glass tube / rod made from Materials. Listed geometry: one end closed quartz tube shape. It is used in Transparency. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Clear Quartz Pipe |
|---|---|
| Shape | One End Closed Quartz Tube |
| Application | Transparency |
| Model NO. | TJ-0009516 |
| Color | Transparency |
| Materials | Materials |
| Softening Point | 1680℃ |
| Purity | 99.99% |
| Density | 2.2g/cm3 |
| Ozone Content | Ozone Free |
| Annealing Point | 1210℃ |
| Surface Treatment | Polished |
| Strain Point | 1120℃ |
| Outside Diameter | 2-350 |
| Supplier | Donghai County Tengjun Quartz Products Co., Ltd. |
Technical data
| Range of OD | Tolerence of OD | Range of WT | Tolerance of WT |
| 4-20 mm | ±0.2mm | 1-2mm | ±2% |
| 20-60mm | ±0.5mm | 1-2mm | ±2% |
| 60-150mm | ±1.0mm | 2-3mm | ±2% |
| 150-200mm | ±1.0mm | 3-4mm | ±2% |
| 150-200mm | ±2.0mm | 4-5mm | ±2% |
| Product | Application |
|---|---|
| Standard Clear Quartz Tube | Lighting/Heating/Special light source/Others |
| Opaque Quartz Tube | Heating(home appliances) |
| High Ozone Quartz Tube | Water treatment/Germicidal |
| Ozone Free Quartz Tube | Water treatment/Germicidal |
| Standard UV Block Quartz Tube | Lighting/Special light source/Others |
| Quartz Tube for Metal Halide Lamp | Metal Halide Lamp |
| UV Block Quartz Tube for Automotive Lamp | Automotive Metal Halide Lamp and others |
| Low Melting Point UV Block Quartz Tube | Automotive Lamp |
| Clear Ruby Quartz Tube | Infrared Heating |
| Hydroxyl Free Quartz Tube | Chemical |
| Low Hydroxyl Quartz Tube | Chemical |
What to specify when you request a quote
- Material — listed as “Materials”; name the glass (borosilicate 3.3, quartz, soda-lime).
- OD, ID and wall — listed as “TJ-0009516”; give outer and inner diameter or wall and their tolerances.
- Length and ends — give length, end finish and any closed or flared ends.
- Straightness and bore — state straightness and bore tolerance for precision tubing.
