Product type: Laser Lenses. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: OL-0174.
Overview

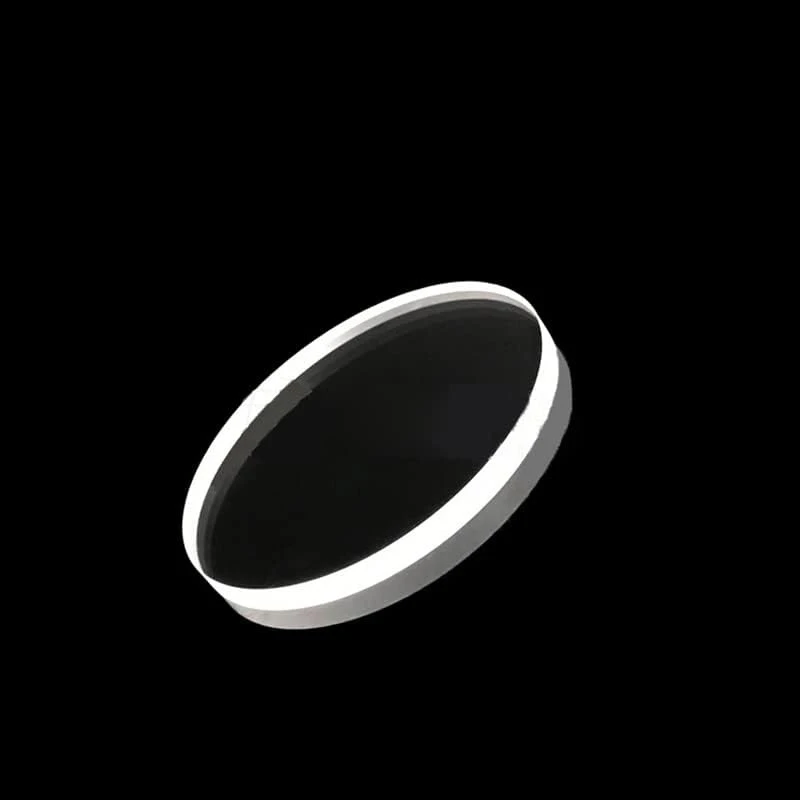

The Custom High Transmistance Optical Polished Flat Borosilicate Glass Lens is supplied as an optical lens in Optical Glass (Bk7, Quartz, Infrared, Sapphire, Ge, Si, Znse, Caf substrate). Listed geometry: diameter 1.5-300mm, size Custom, single-lens shape. Optical / electrical data: transmittance >95%. Coating: Custom as Per Demand. Listed for Lighting, Medical, Optical, Photography and Laser applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Bk7, Quartz, Infrared, Sapphire, Ge, Si, Znse, Caf |
| Type | Laser Lenses |
| Shape | Single-lens |
| Diameter | 1.5-300mm |
| Size | Custom |
| Transmittance | >95% |
| Coating | Custom as Per Demand |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | OL-0174 |
| Lenses Color | Clear |
| Product Name | Optical Lens |
| Superior Laser Protection | Precisely manufactured to block stray lasers, effectively shielding machine optical systems from potential damage and maintaining optimal imaging/processing performance. |
| Standard 18mm Size | 18mm glass protection lens design, perfectly suited for integration into most industrial laser equipment, offering easy installation and replacement. |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| Material | N-BK7, UV grade fused silica, JGS1, LasfN9, N-SF11, Sapphite, silicon, and other IR glasses |
|---|---|
| Diameter range | From 1.5mm to 800mm |
| Tolerance | 0.02mm |
| Thickness tolerance | 0.02mm |
| Surface quality | 40/20 |
| Irregularity | Lambda/4 or Lambda/2 |
| Centering | 1 arc min |
| Chamfer | Preotective chamfer |
| Coating | Uncoated or AR coated for visible or UV or infrared wavelength, R<0.5% |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “1.5-300mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Custom as Per Demand”; list the band and reflectance or transmission target.
