Product type: Optical Mirror. Application: Projector, Scanner, Copier, Camera, Optical Instru. Model: HG-FSM. Function: Optical Function, Mechanics and Mechanical Function.
Overview

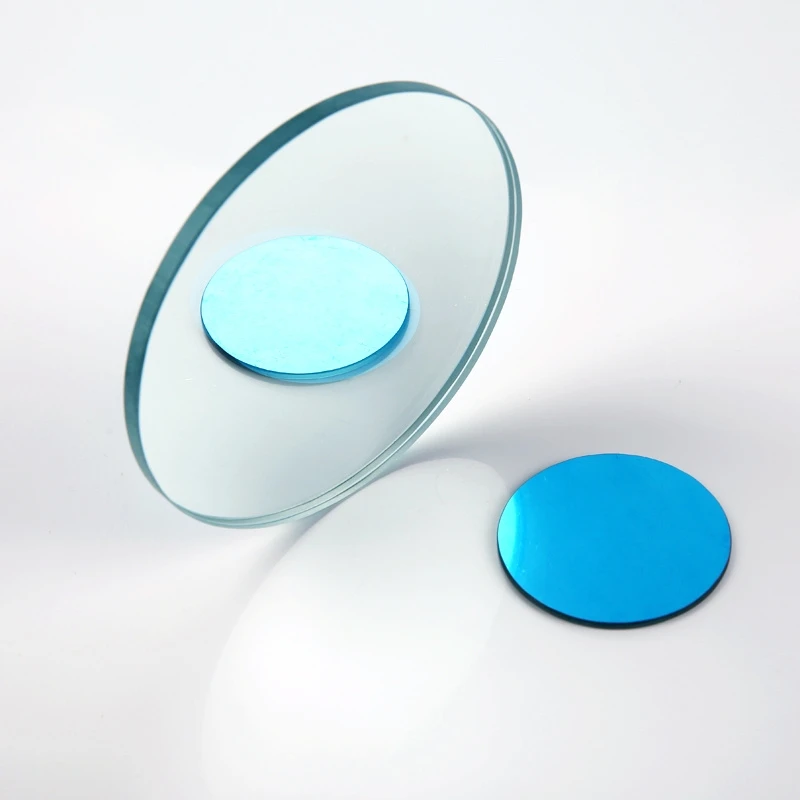

Dielectric Coating Spectroscopy Metrology Interferometry Ultra High Reflectivity 99 Percent 2/3mm Fused Silica Custom Round Shape Precision Front Surface Mirror is an optical mirror made from Glass. Listed geometry: thickness 0.5-8mm. Flatness interferometer). It is used in Electronics & Instruments. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Optical Mirror |
| Shape | Customized |
| Thickness | 0.5-8mm |
| Application | Electronics & Instruments |
| Usage | Projector, Scanner, Copier, Camera, Optical Instru |
| Model NO. | HG-FSM |
| Structure | Solid |
| Moh's Hardness | 6 |
| Function | Optical Function, Mechanics and Mechanical Function |
| Transparency | Semi-Transparent |
| Processing Method | Magnetron Sputtering or Vacuum Coating |
| Preparation Process | Surface Coating Vapor Deposition |
| Color | Silver (Aluminum Coating) |
| Product Name | Front Surface Reflective Mirror |
| Core Advantage | Zero Ghost Image, High Light Reflectivity |
| Coating Process | Vacuum Vapor Deposition |
| Main Application | Museum Exhibition & Precision Optical Devices |
| Processing | Coating, Cutting, Edging |
| Key applications | Projector optical systems (LCD, DLP, rear projection) |
| Every front surface mirror undergoes | Visual inspection for coating uniformity and surface defects |
| Surface flatness testing (precision grade | interferometer) |
| Certifications | ISO 9001 Quality Management System |
| Inner Package | Interleaving Paper + EPE Foam + Air Column Bag / Bubble Wrap + Corrugated Carton |
| Technical Support | Dedicated account manager responds within 24 hours. |
| Factory Equipment | Specialized in custom glass solutions for industrial and optical applications. Our engineering team works directly with your drawings to deliver exact specifications. |
| Supplier | Qingdao Hitech Glass Co.,Ltd |
Technical data
| Parameter | Specification | Unit | Notes |
| Product Model | HTG-FM | – | Front Surface Mirror |
| Substrate | Float Glass / Borosilicate / Fused Silica | – | Upgrade optional |
| Coating Type | Enhanced Aluminum | – | Ag / Au optional |
| Thickness | 0.5-8 | mm | Custom available |
| Size Range | 5-1200 | mm | Custom shapes |
| Surface Flatness | lambda/4 standard | – | lambda/10 precision |
| Surface Quality | 60-40 | scratch-dig | 40-20 precision |
| Tolerance | +/-0.1 | mm | +/-0.02 precision |
| Clear Aperture | >90 | % | Of physical area |
| Operating Temp | -40 to +80 | C | Stable performance |
| HS Code | 70099100 | – | Glass mirrors |
| Certifications | ISO 9001, CE, RoHS, SGCC, EN 12150 |
| Wavelength (nm) | Reflectivity (%) | Wavelength (nm) | Reflectivity (%) |
| 400 | 87 | 550 | 93 |
| 450 | 90 | 600 | 94 |
| 500 | 92 | 650 | 95 |
| – | – | 700 | 96 |
| Category | Options | Thickness | Notes |
| Coating Material | Enhanced Al / Protected Ag / Protected Au | 0.5-6mm | Al standard |
| Coating Band | Visible 400-700nm / UV / IR up to 10000nm | – | Custom wavelength |
| Shape | Rectangular / Circular / Custom | – | CNC precision cut |
| Size | 5mm to 1200mm | 0.5-6mm | Any dimension |
| Edge Processing | Polished / Beveled / Flat Ground | – | Per requirements |
| Substrate | Float Glass / Borosilicate / Fused Silica | – | Low expansion opt |
| Precision Grade | Standard lambda/4 / Precision lambda/10 | – | Per application |
| Reflectivity | Standard >94% / High >97% / Ultra >99% | – | Dielectric for 99% |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “Visual inspection for coating uniformity and surface defects”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Vacuum Vapor Deposition”; list the band and reflectance or transmission target.
