Product type: Flat Lens. Application: Lighting, Optical. Model: FW-Glass.
Overview

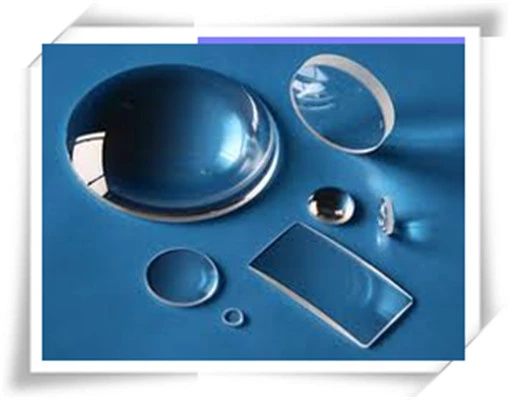

High Quality Optical Large Magnifying Glass Plano Convex Lens is an optical lens made from Optical Glass. Listed geometry: diameter 8-500mm, thickness 1-100mm, single-lens shape. Optical / electrical data: transmittance >95%. Coating: HMC. Listed for Lighting and Optical applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Flat Lens |
| Shape | Single-lens |
| Thickness | 1-100mm |
| Transmittance | >95% |
| Coating | HMC |
| Usage | Lighting, Optical |
| Model NO. | FW-Glass |
| Lenses Color | Clear |
| Diamater | 8-500mm |
| Length | 10mm-750mm |
| Width | 10-550mm |
| Supplier | Jiaozuo Commercial Finewin Co., Ltd. |
Technical data
| Round shape plate | Diamater:8-500mm Thickness:1-100mm |
|---|---|
| Rectangle | Length:10mm-750mm Width:10-550mm Thickness:1-100mm |
| Triangle | According to customer's design |
| Trapezoid | According to customer's design |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “HMC”; list the band and reflectance or transmission target.
