Model: DA-Mirror.
Overview

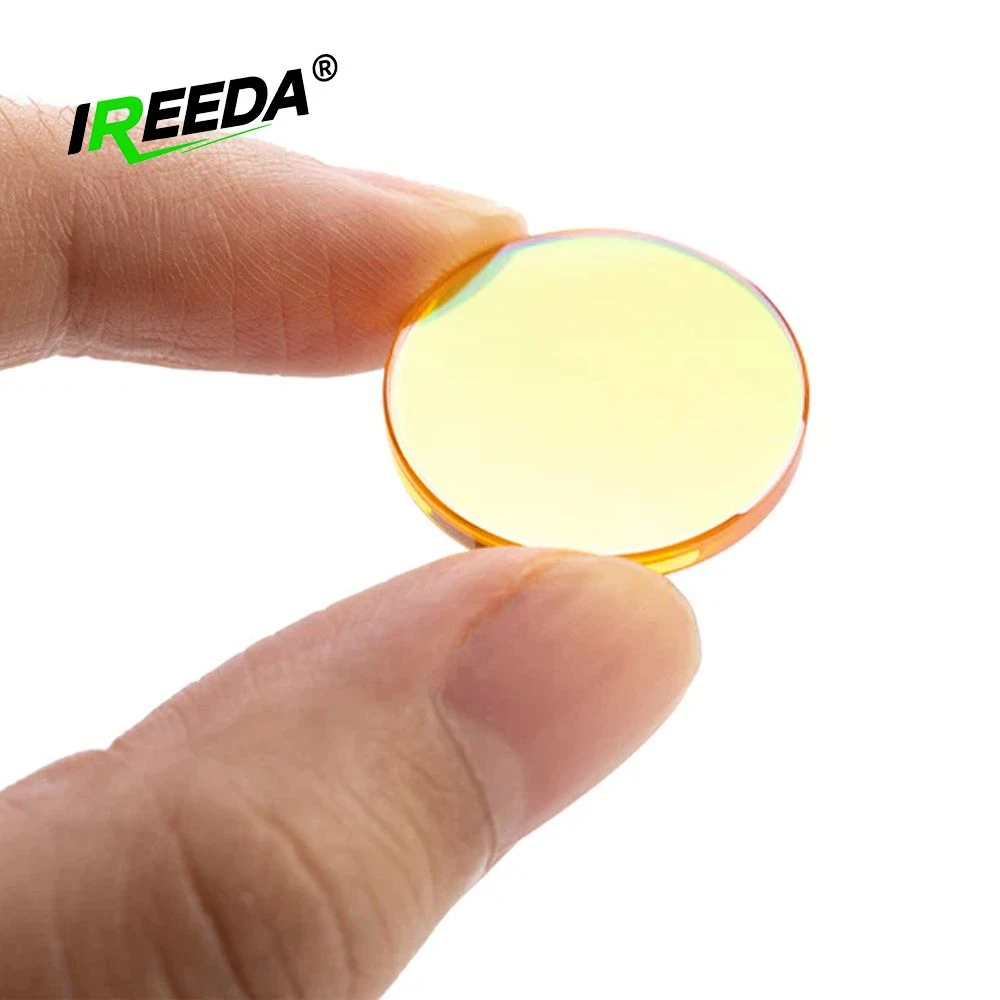

Ireeda High Reflectivity Optical Mirrors K9/Quartz Laser Mirror: an optical mirror made from K9/Quartz. Listed geometry: spherical shape. Optical / electrical data: wavelength 532mm,1064mm. Coating: High-Reflective Dielectric Coating; surface quality 40/20. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | K9/Quartz |
|---|---|
| Shape | Spherical |
| Coating | High-Reflective Dielectric Coating |
| Surface Quality | 40/20 |
| Model NO. | DA-Mirror |
| Operating Wavelength | 532mm,1064mm |
| Dear Customer | For detailed parameters such as thickness, chamfer, and damage threshold, please provide engineering drawings for confirmation. Free contact to us! |
| Supplier | Shaanxi Ireeda Protective Technology Co., Ltd. |
Technical data
| Parameter | Specification |
|---|---|
| material | K9/Quartz |
| size | Φ24/25/26/30/25.4 |
| Operating Wavelength | 532nm,1064nm,650nm |
| Surface Quality | 40/20, support customization to meet your different needs |
| Parallelism | <1 |
| Coating | High-reflective dielectric coating |
| Dear Customer: For detailed parameters such as thickness, chamfer, and damage threshold, please provide engineering drawings for confirmation. Free contact to us! |
What to specify when you request a quote
- Material — listed as “K9/Quartz”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40/20”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “High-Reflective Dielectric Coating”; list the band and reflectance or transmission target.
