Overview

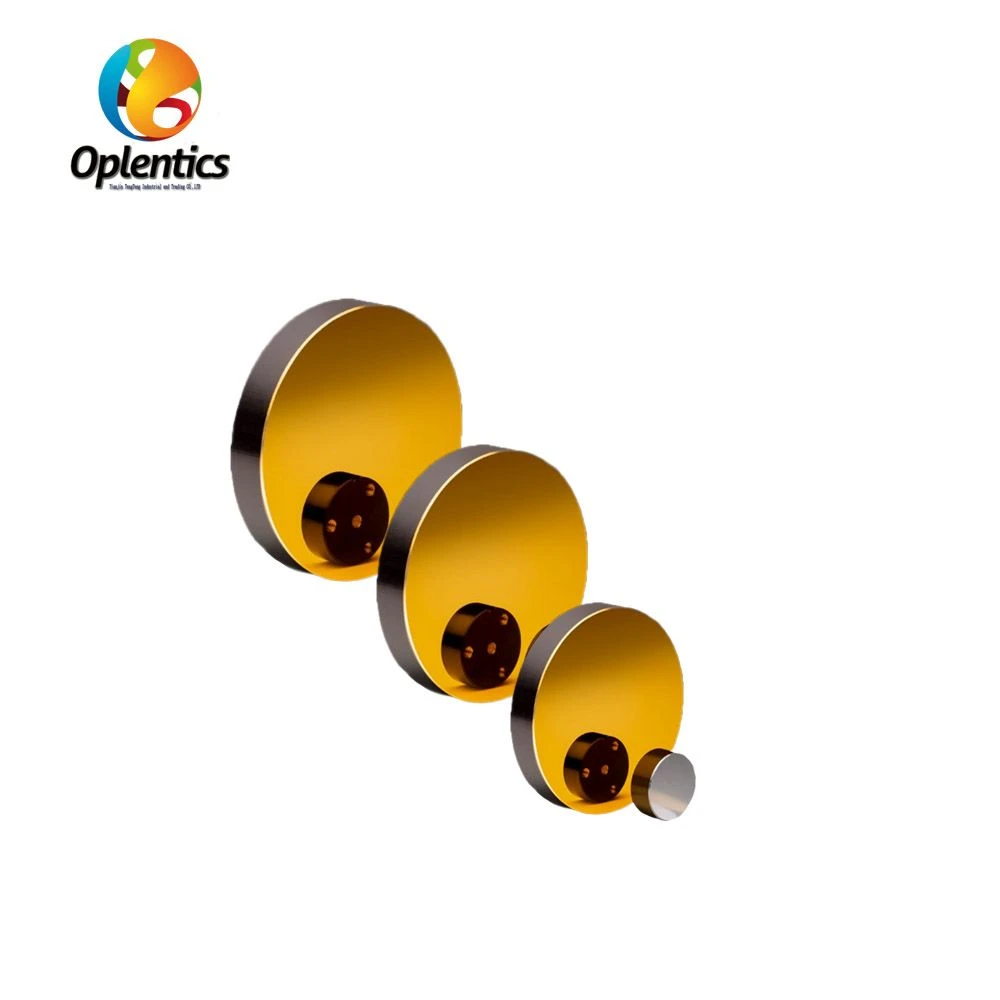

OEM Custom Optical Mirrors with Protected Gold/Aluminum/Silver Coating is an optical mirror made from Glass. Listed geometry: thickness as Required, plano shape. Coating: Ar, Hr Dielectric, Mental; surface quality 20-10. It is used in Medical, Civil and Labs. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Shape | Plano |
| Thickness | as Required |
| Coating | Ar, Hr Dielectric, Mental |
| Surface Quality | 20-10 |
| Parallelism | 1minute |
| Clear Aperture | >90% |
| Application | Medical, Civil, Labs |
| Model NO. | TT Mirror23 |
| Dimensional Tolerance | +0/-0.05 |
| Centration | 1minute |
| Bevel | as Required |
| Edge Chip | <0.1mm |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Product Name | OEM Custom Optical Mirrors with Protected Gold/Aluminum/Silver Coating |
|---|---|
| Size | Dia 1mm-Dia 500mm |
| Shape | round,square,rectangular |
| Coating | Protected Gold/Aluminum/Silver |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “+0/-0.05”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “20-10”; quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “1minute”; state centration and edge chamfer.
- Coating — listed as “Ar, Hr Dielectric, Mental”; list the band and reflectance or transmission target.
