Application: Labs. Model: Spherical Concave Mirror.
Overview

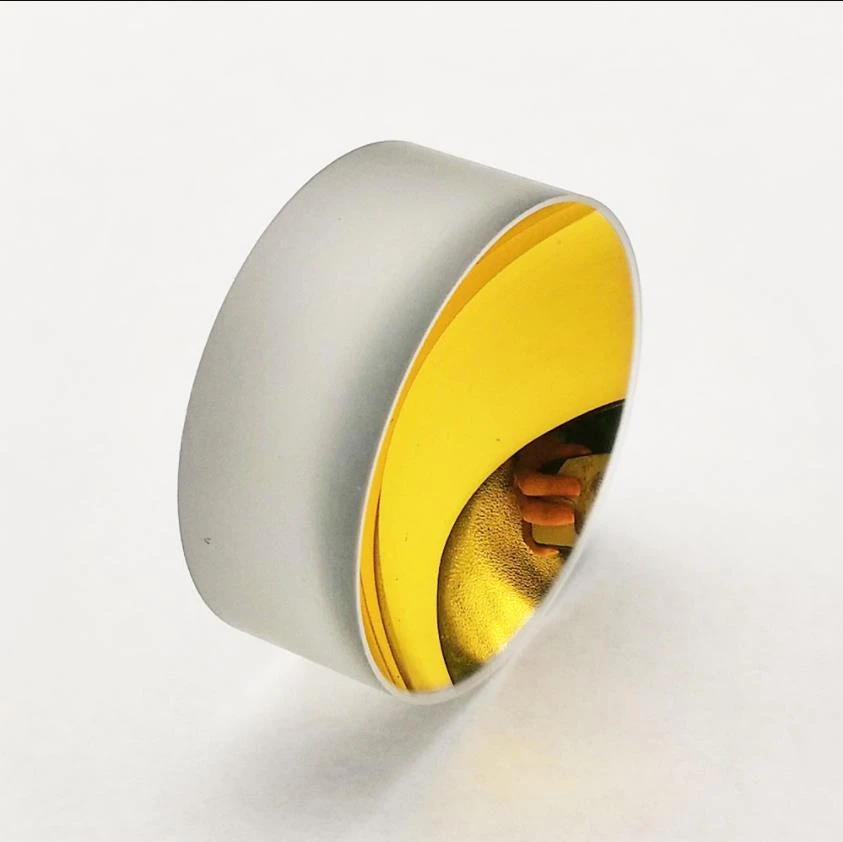

OEM Large Small Optical Glass Bk7 Spherical Reflective Plano Concave Mirror is an optical mirror made from Glass. Listed geometry: plano shape. Listed for Labs applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Shape | Plano |
| Application | Labs |
| Model NO. | Spherical Concave Mirror |
| Supplier | Shenyang Ebetter Optics Co., Ltd. |
Technical data
| Diameter Tolerance | +0.0/-0.1mm |
|---|---|
| Thickness Tolerance | ±0.1mm |
| Surface Flatness | λ1/4 |
| Surface Quality | 60/40, 40/20 or better |
| Clear Aperture | >90% |
| Coating | Custom |
| Bevel | Protective bevel as needed |
| Angle Tolerance | <1 arc min |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
