Product type: Aspheric Lenses. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Electronics, etc. Model: RAY-XS104#.
Overview

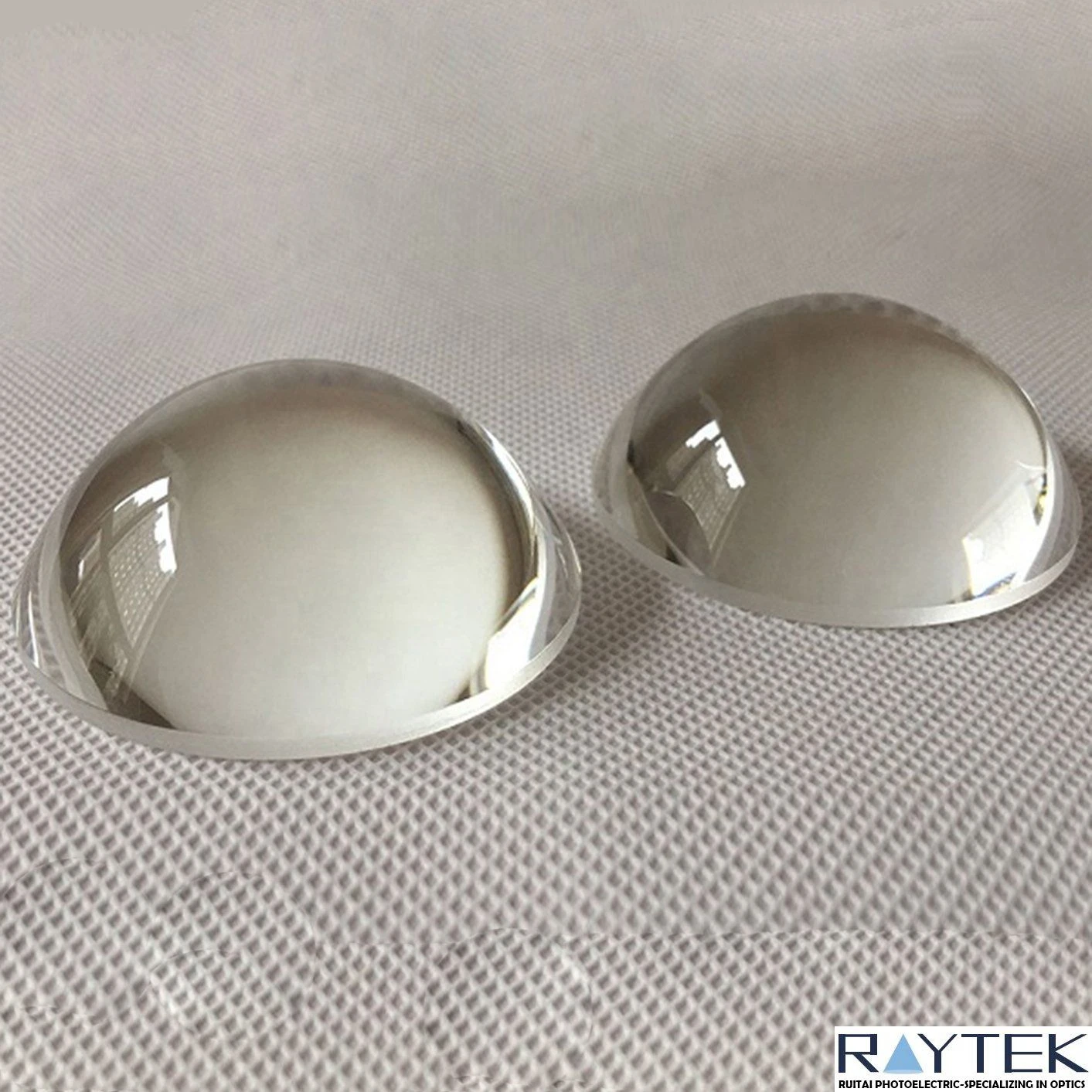

The Optical Aspherical Lens/Quartz Glass Aspheric Lens/Fused Silica Aspheric Lens is supplied as an optical lens in Optical Glass (Molded Glass, Fused Silica, Bk270, etc substrate). Listed geometry: single-lens shape. Optical / electrical data: wavelength 600-1050nm, transmittance >95%. Coating: Nir Coating; surface quality 40-20 Scratch-Dig or Custom. Listed for Lighting, Medical, Optical, Photography and Laser applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Molded Glass, Fused Silica, Bk270, etc |
| Type | Aspheric Lenses |
| Shape | Single-lens |
| Transmittance | >95% |
| Coating | Nir Coating |
| Surface Quality | 40-20 Scratch-Dig or Custom |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Electronics, etc |
| Model NO. | RAY-XS104# |
| Lenses Color | Clear |
| Ar Coating Wavelength | 600-1050nm |
| Coating Type | Nir Type a |
| Main Cooperation Materials Manufacturers | CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 Scratch-Dig or Custom”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Nir Coating”; list the band and reflectance or transmission target.
