Product type: Optical Glass Prism. Application: Beam Dispersion, Beam Split. Model: KGO106.
Overview

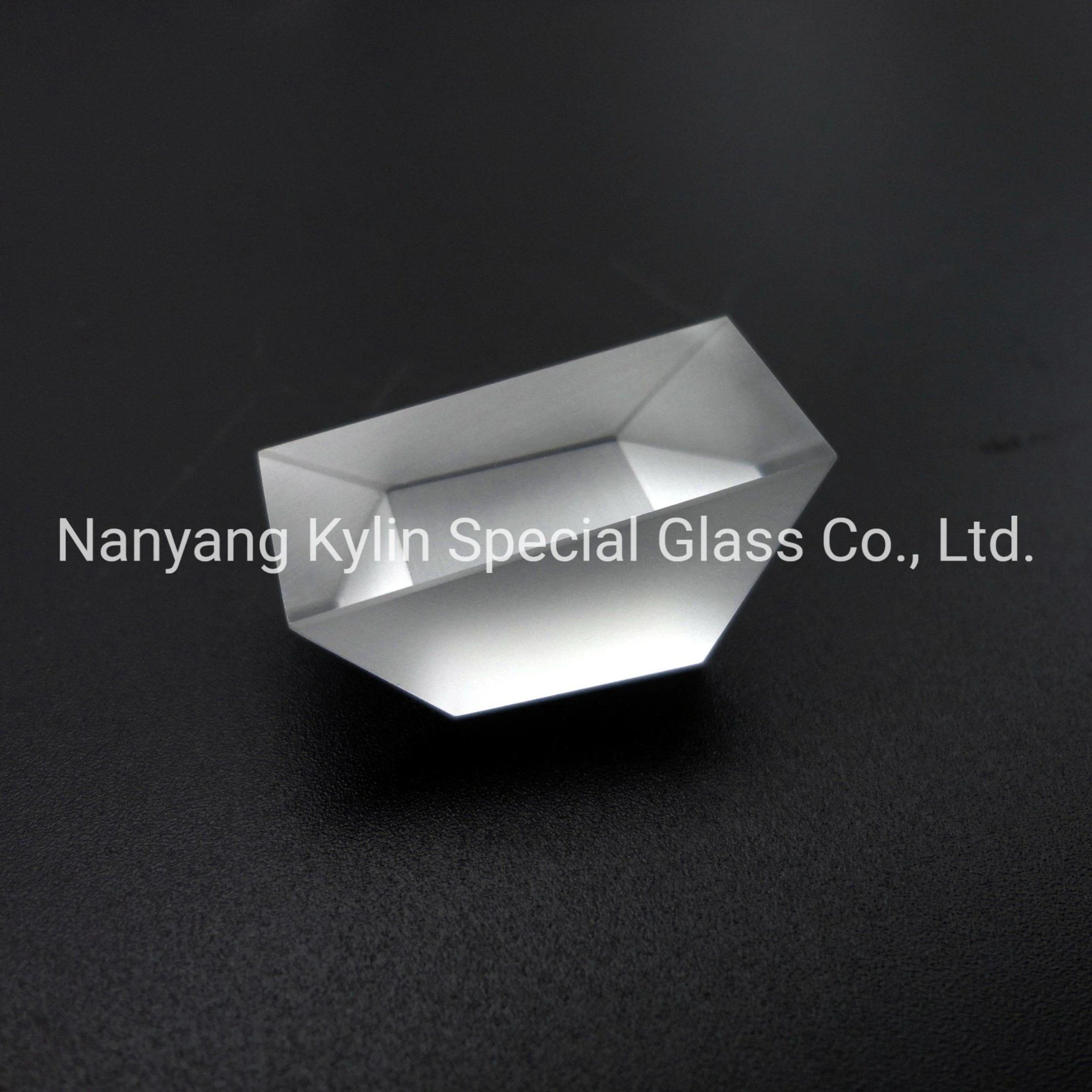

Optical Dove Prism for Optical Instrument is an optical prism made from Fused Silica,K9,Bk7,B270. Listed for Optical and Camera applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Fused Silica,K9,Bk7,B270 |
|---|---|
| Type | Optical Glass Prism |
| Application | Optical, Camera |
| Usage | Beam Dispersion, Beam Split |
| Model NO. | KGO106 |
| Supplier | Nanyang Kylin Special Glass Co., Ltd. |
What to specify when you request a quote
- Material — listed as “Fused Silica,K9,Bk7,B270”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
