Product type: Quartz Wafer. Application: Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass. Model: OS-0021.
Overview

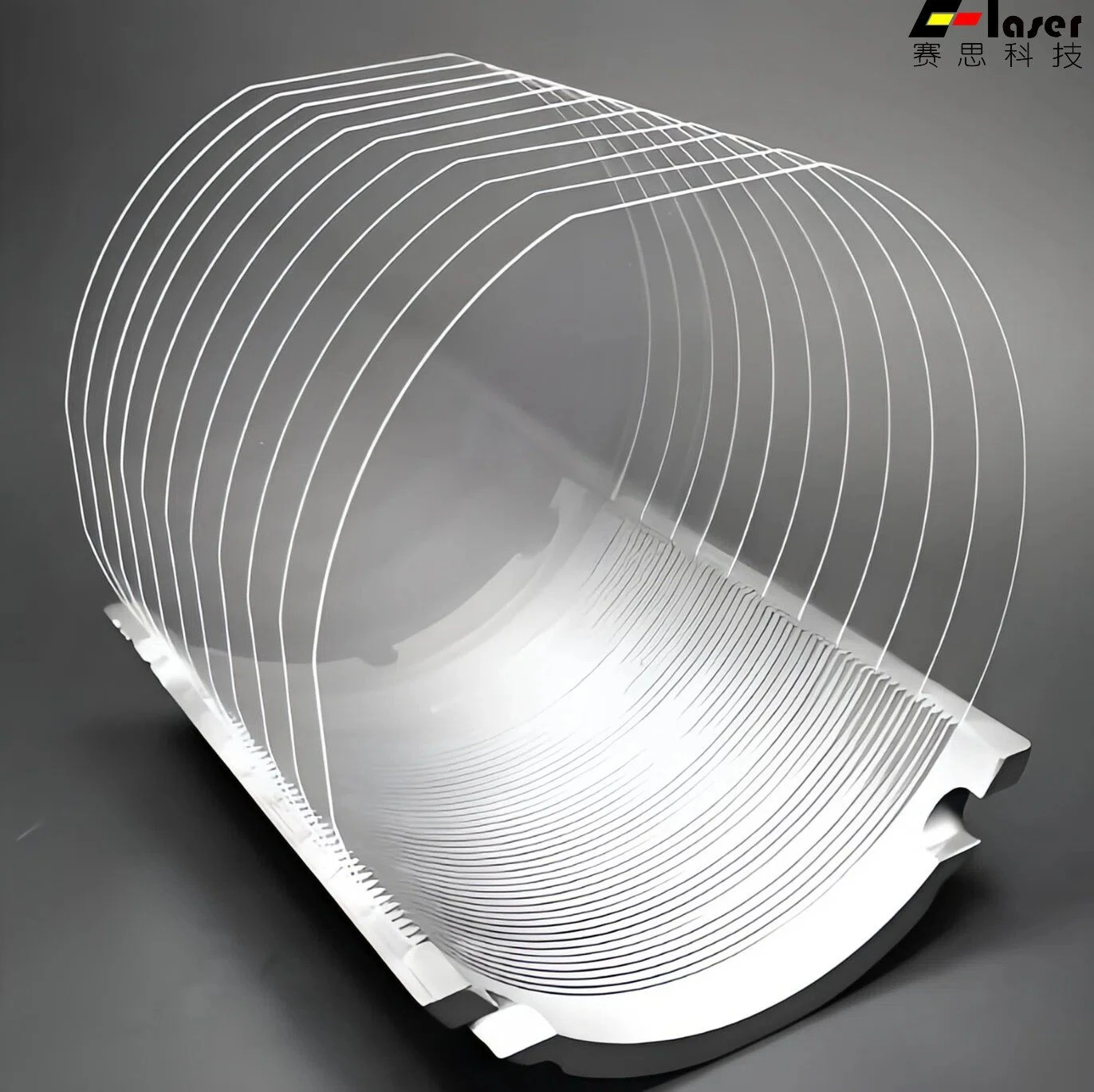

Optical Fused Silica Quartz Glass Wafer- for Chemical Labs & Industrial Process Windows: a fused silica / quartz wafer made from Corning 7980, Nikon, Hera Quartz/Fused Silica. Listed geometry: size 2, 3, 4, 5, 6, 8, 10, 12 Inches, etc or Customize. Typical applications: Rubber, Plastic, Chemical, Construction and Metallurgy. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Substrate | Corning 7980, Nikon, Hera Quartz/Fused Silica |
|---|---|
| Type | Quartz Wafer |
| Size | 2, 3, 4, 5, 6, 8, 10, 12 Inches, etc or Customize |
| Application | Rubber, Plastic, Chemical, Construction, Metallurgy, Ceramic, Casting, Glass |
| Model NO. | OS-0021 |
| Size Tolerance | 0/-0.1mm |
| Ppv | Less Than =20um |
| Purity of Quartz Wafer | 1). Synthetic Quartz Wafer 99.999% 2). High Purity |
| Main Applying | Applying 1 |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| Main Applying: | |
|---|---|
| Applying 1 | Laser systems/Laser optics |
| Applying 2 | All types of sensors and chips |
| Applying 3 | Optical windows and lens |
| Applying 4 | high frequency circuit / microwave circuit/Integrated circuit |
| Applying 5 | Internet of things array |
What to specify when you request a quote
- Diameter and flat / notch — listed as “2, 3, 4, 5, 6, 8, 10, 12 Inches, etc or Customize”; state diameter, flat or notch and their tolerances.
- Thickness and TTV — give thickness, its tolerance and total thickness variation.
- Polish and roughness — specify single- or double-side polish and roughness.
- Flatness, bow and warp — quote flatness, bow and warp limits.
- Material grade — listed as “Corning 7980, Nikon, Hera Quartz/Fused Silica”; name the grade (JGS1/JGS2, Borofloat 33, alkali-free, sapphire orientation).
