Product type: Optical Glass Lens. Application: Lighting, Medical, Optical, Photography. Model: KGO101.
Overview

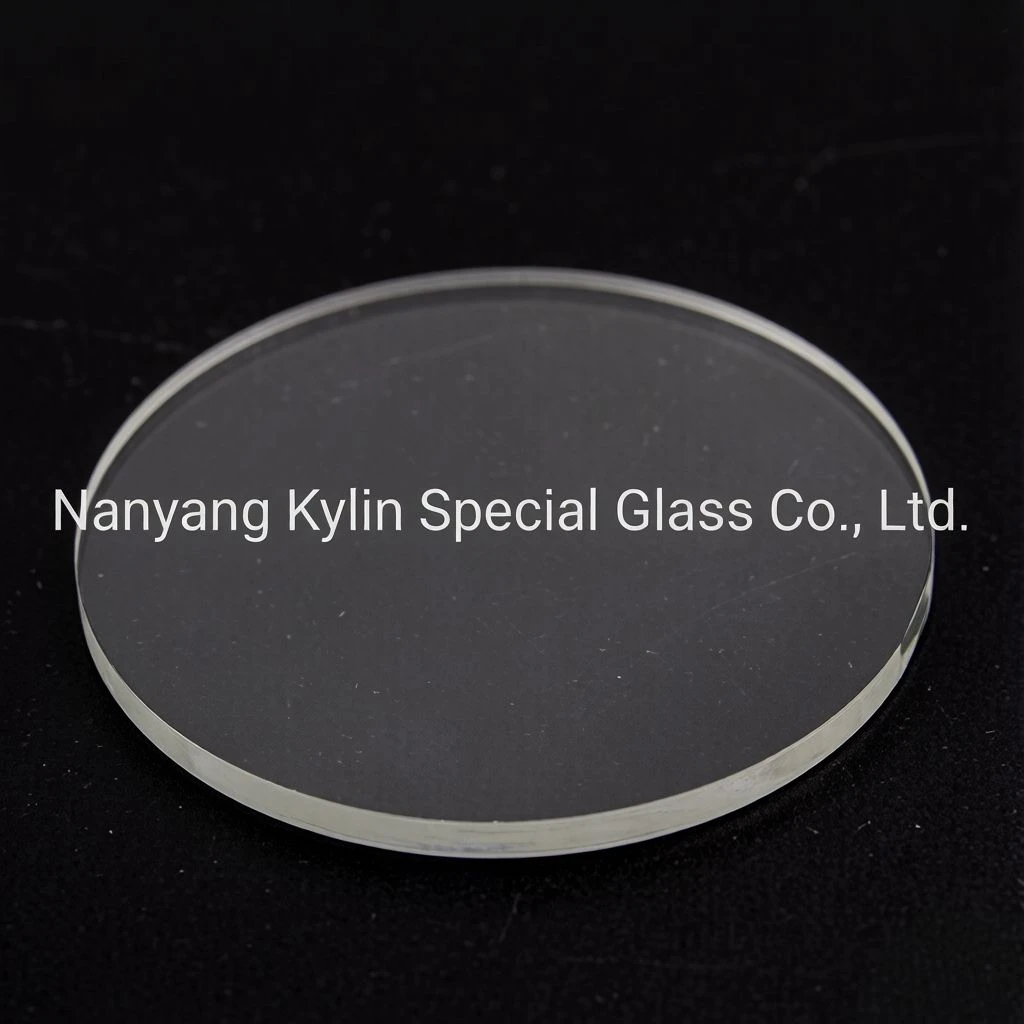

Optical Glass Fused Silica Jgs1 Window Lens Pyrex Glass Wafer: a fused silica / quartz wafer made from Fused Silica,Bk7,B270. Listed geometry: round, customized shape. Optical / electrical data: transmittance >95%. Coating: Polishing, Coating; surface quality Standard 60/40, High Precision 20/10. Listed for Lighting, Medical, Optical and Photography applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Fused Silica,Bk7,B270 |
|---|---|
| Type | Optical Glass Lens |
| Shape | Round, Customized |
| Transmittance | >95% |
| Coating | Polishing, Coating |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | KGO101 |
| Lenses Color | Clear |
| Custom Optical Coating | Customized Per Customer Demand |
| Edge Chamfer | Protected <0.4mm ×45° |
| Custom Dimension | Custom Sizes Available |
| Optical Surface Quality | Standard 60/40, High Precision 20/10 |
| Supplier | Nanyang Kylin Special Glass Co., Ltd. |
What to specify when you request a quote
- Diameter and flat / notch — state diameter, flat or notch and their tolerances.
- Thickness and TTV — give thickness, its tolerance and total thickness variation.
- Polish and roughness — listed as “Standard 60/40, High Precision 20/10”; specify single- or double-side polish and roughness.
- Flatness, bow and warp — quote flatness, bow and warp limits.
- Material grade — listed as “Fused Silica,Bk7,B270”; name the grade (JGS1/JGS2, Borofloat 33, alkali-free, sapphire orientation).
