Product type: Achromatic Lenses. Application: Optical. Model: OL.
Overview

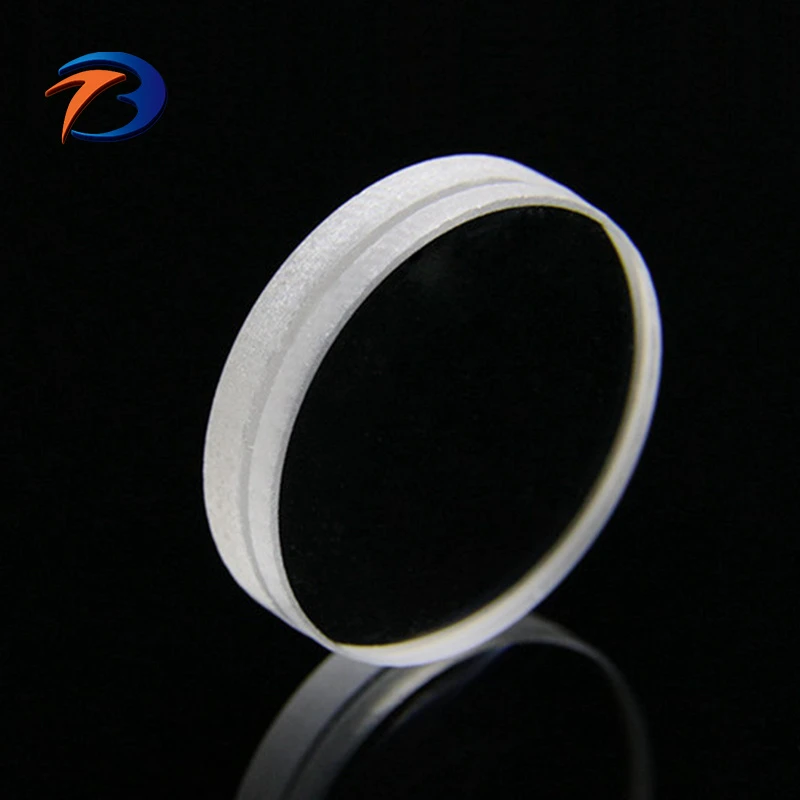

Optical Objective Lens Diameter 80mm Achromatic Lens High Quality: an optical lens made from Optical Glass. Listed geometry: achromatic lenses shape. Optical / electrical data: transmittance >95%. Listed for Optical applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Achromatic Lenses |
| Shape | Achromatic Lenses |
| Transmittance | >95% |
| Usage | Optical |
| Model NO. | OL |
| Lenses Color | Clear |
| Supplier | Shenyang Ebetter Optics Co., Ltd. |
Technical data
| Diameter Tolerance | 1-600±0.02MM |
|---|---|
| Clear Aperture | >90% |
| Thickenss Tolerance | 0.5-50±0.02MM |
| Surface Flatness | 1/10LAMBDA |
| SufaceQuality | 20-10 |
| Material | N-BK7,FUSED SILICA,SAPPHIRE, CAF2,MGF2,ZNSE |
| Beveling | 45°X0.2MM |
| Coating | Coating Reflective Coating Dichroic Film |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
