Product type: Corner Cube. Application: Survey Instrument. Model: yt384.
Overview

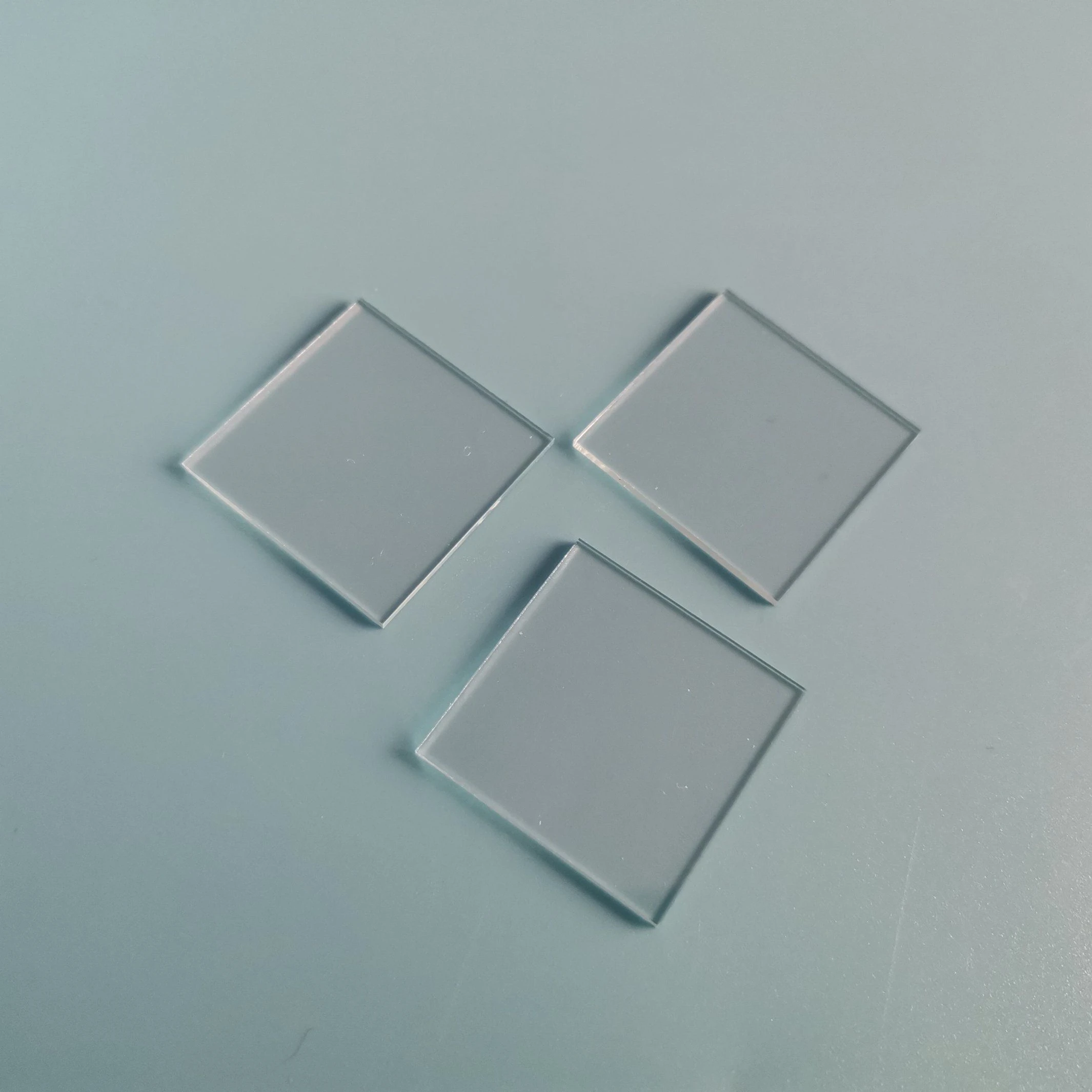

The Optical UV Fused Silica Glass Big Plate 50mm 100mm Thick 1mm Thin Wafer is supplied as a fused silica / quartz wafer made from Glass. Listed geometry: size 50/100mm, thickness 1mm, cube corner prism shape. Surface quality 60-40; flatness No Request. It is used in Survey Instrument. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Corner Cube |
| Shape | Cube Corner Prism |
| Dimension | 50/100mm |
| Thickness | 1mm |
| Surface Quality | 60-40 |
| Flatness | No Request |
| Application | Survey Instrument |
| Usage | Beam Split |
| Model NO. | yt384 |
| Color | Transparent |
| Polished | Yes |
| Dimention Tol | +/-0.1mm |
| Supplier | Changchun Yutai Optics Co., Ltd. |
What to specify when you request a quote
- Diameter and flat / notch — state diameter, flat or notch and their tolerances.
- Thickness and TTV — listed as “1mm”; give thickness, its tolerance and total thickness variation.
- Polish and roughness — listed as “60-40”; specify single- or double-side polish and roughness.
- Flatness, bow and warp — listed as “No Request”; quote flatness, bow and warp limits.
- Material grade — listed as “Glass”; name the grade (JGS1/JGS2, Borofloat 33, alkali-free, sapphire orientation).
