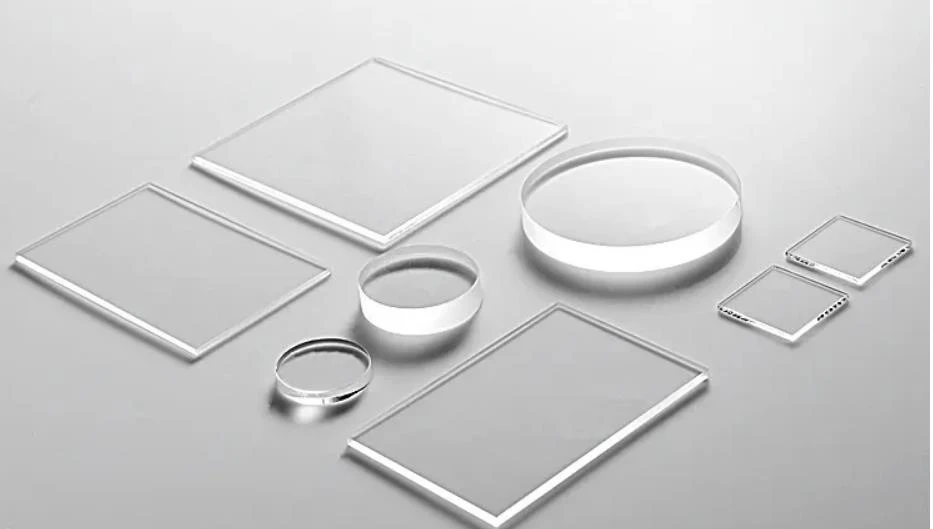

Optical Wafer Clear Quartz Disc Round Quartz Plates Transparent Opaque: a fused silica / quartz wafer made from Quartz. Listed geometry: size Customized. Coating: Ar,Reflective…. Listed for Plastic, Chemical, Ceramic and Glass applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
Type
Quartz Plate
Size
Customized
Coating
Ar,Reflective…
Application
Plastic, Chemical, Ceramic, Glass
Model NO.
FWquartz
Materials
Quartz
Product advantages
not easy to be corroded, can withstand high temperature, beautiful appearance, compact structure, easy to operate, strong light transmission, good electrical insulation
Supplier
Jiaozuo Commercial Finewin Co., Ltd.
Technical data
Diameter
5mm-1500mm
Thickness
0.8mm-100mm
Length
10mm-800mm
Width
10mm-600mm
Thickness
0.5mm-100mm
Property
Value
Sio2
>99.9%
Density
2.2x103kg/m2
Hardness
570KHN100
Tensile strength
4.8x107Pa(N/m2)
Compression strength
>1.1x109Pa
Coefficient of thermal expansion(20ºC-300ºC)
5.5×10-7cm/cmºC
Thermal conductivity(20ºC)
1.4W/mºC
Specific heat(20ºC)
660J/kgºC
Softening point
1730ºC
Annealing point
1250ºC
What to specify when you request a quote
Diameter and flat / notch — listed as “Customized”; state diameter, flat or notch and their tolerances.
Thickness and TTV — give thickness, its tolerance and total thickness variation.
Polish and roughness — specify single- or double-side polish and roughness.
Flatness, bow and warp — quote flatness, bow and warp limits.
Material grade — listed as “Quartz”; name the grade (JGS1/JGS2, Borofloat 33, alkali-free, sapphire orientation).
What is the Optical Wafer Clear Quartz Disc Round Quartz Plates Transparent Opaque made of? expand_more
It is listed as Quartz. Coating: Ar,Reflective…. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What sizes and thicknesses are available? expand_more
The listing gives size Customized. Custom outlines and thicknesses are made to drawing; state the tolerance you need.
Where is this fused silica / quartz wafer used? expand_more
Listed applications: Plastic, Chemical, Ceramic and Glass.
What should I include in a quote request? expand_more
Include diameter and flat / notch, thickness and ttv, polish and roughness, flatness, bow and warp and material grade, plus quantity and a drawing if the part is custom.
Configure in 3D, draw in 2D
3D Model & 2D Drawing Builder
PRECISION GLASS3D
3D Precision Glass ConfiguratorBuild a visual 3D preview for custom precision glass parts, including wafers, microfluidic chips, coated glass, optical filters, and machined quartz plates.This tool is for visual configuration only. Final dimensions, tolerances, materials, coatings, and manufacturability will be reviewed from your drawing or specification.
Paste a configuration JSON (from Export) or a copied RFQ summary. The product and all recognized parameters are applied automatically; unknown parameters are listed and skipped.
Answer the choices below step by step — every value comes from the real option list, so it always renders.
Save the current configuration under a name and recall it any time on this device.
2D PreviewYour browser is showing a simplified engineering preview because WebGL is unavailable.
Glass Wafer Builder
Interactive visual preview for custom precision glass configuration.
CMD
Import Code (One-Click Recall)
Save this code before you leave — it is the only way to recall this exact model. If you lose it, your configuration cannot be restored.
SUBMIT RFQ — ENGINEERING REVIEWYour current 3D configuration and specification summary are attached automatically. Attach a drawing if you have one.
FREQUENTLY ASKED QUESTIONSWhich fused silica grade should I choose — JGS1, JGS2 or JGS3?
JGS1 offers deep-UV transmission from about 185 nm (best for DUV lithography and UV laser optics). JGS2 transmits well from about 220 nm for standard UV-visible use at lower cost. JGS3 is optimized for visible-to-infrared and high-power laser work. The builder exposes a transmission-band requirement so you can specify the grade by application.
What wafer diameters and thicknesses are supported?
Common diameters are 2, 3, 4 and 6 inch (note 1 inch = 25.0 mm for quartz wafers, so a 4 inch wafer is 100 mm). Typical thicknesses are 200, 500, 700 and 1000 µm, with tighter thickness tolerance and TTV specifiable for polished optical grades.
Can I specify TTV, surface quality and a flat or notch?
Yes. You can set total thickness variation, scratch-dig surface quality (down to 40/20 or 20/10 for optical grade), single- or double-side polish, and a primary flat or notch for orientation.
