Model: RAY-LH004#.
Overview

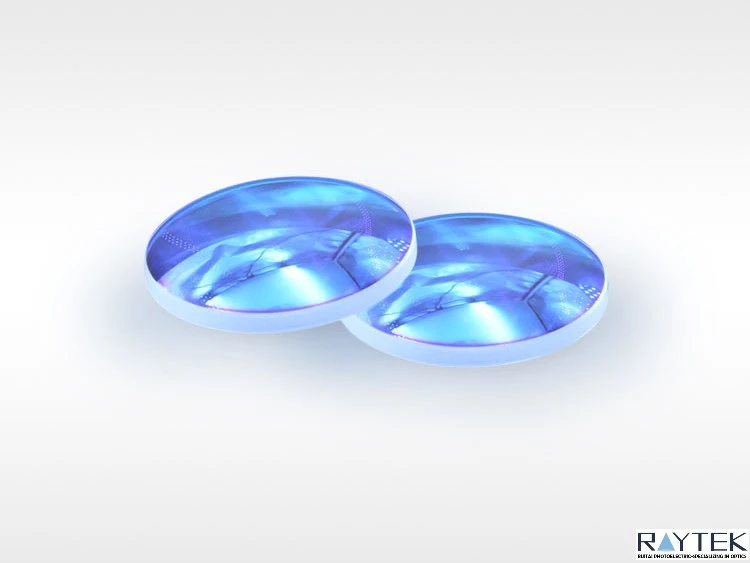

Premium Optical Lens for Enhanced Photography and Videography is an optical lens. Optical / electrical data: wavelength 488-694 Nm/700-950nm. Coating: Dielectric Coating; surface quality 40-20 Scratch-Dig or Custom Manufacturing; flatness Lambda/10 at 632.8nm with Power Removed. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Wavelength Range | 488-694 Nm/700-950nm |
|---|---|
| Surface Quality | 40-20 Scratch-Dig or Custom Manufacturing |
| Model NO. | RAY-LH004# |
| Surface Flatness | Lambda/10 at 632.8nm with Power Removed |
| Coating Type | Dielectric Coating |
| Products Name | Aspherical lens/camera lens/optical lens/Glass lenses/Single-sided aspherical lens/Double-sided aspherical lens |
| Alias | Aspherical lens/camera lens/optical lens/Glass lenses/Single-sided aspherical lens/Double-sided aspherical lens |
| Product Features | 1.It can ideally overcome spherical aberration and can be made into large-diameter high-quality lenses. |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
What to specify when you request a quote
- Material — name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 Scratch-Dig or Custom Manufacturing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Dielectric Coating”; list the band and reflectance or transmission target.
