Product type: Flat Lens. Application: Lighting, Medical, Optical, Photography. Model: RAY-LH231#.
Overview

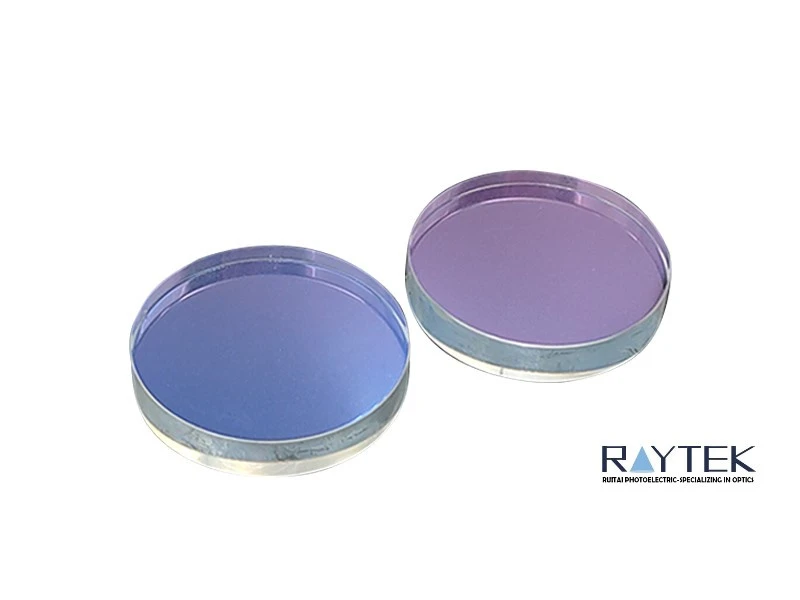

Premium Sapphire Crystal Lens for Precision Optical Use: an optical lens. Optical / electrical data: wavelength 488-694 Nm/700-950nm. Coating: Dielectric Coating; surface quality 40-20 Scratch-Dig or Custom Manufacturing; flatness Lambda/10 at 632.8nm with Power Removed. Typical applications: Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Flat Lens |
|---|---|
| Shape | Customized |
| Wavelength Range | 488-694 Nm/700-950nm |
| Surface Quality | 40-20 Scratch-Dig or Custom Manufacturing |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | RAY-LH231# |
| Lenses Color | Customized |
| Surface Flatness | Lambda/10 at 632.8nm with Power Removed |
| Coating Type | Dielectric Coating |
| Product data | Optical element material |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Optical element material | Sapphire |
|---|---|
| Working wavelength | 150-4500 nm |
| Diameter tolerance | +0.00/-0.20 mm |
| Thickness tolerance | ±0.3 mm |
| Coating | Uncoated |
| Surface parallelism | ≤3 arcmin |
| Surface Finish (Scratches/Pocks) | 60/40 |
What to specify when you request a quote
- Material — name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 Scratch-Dig or Custom Manufacturing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Dielectric Coating”; list the band and reflectance or transmission target.
