Product type: Quartz Tube. Application: Chemical. Model: 82034.
Overview

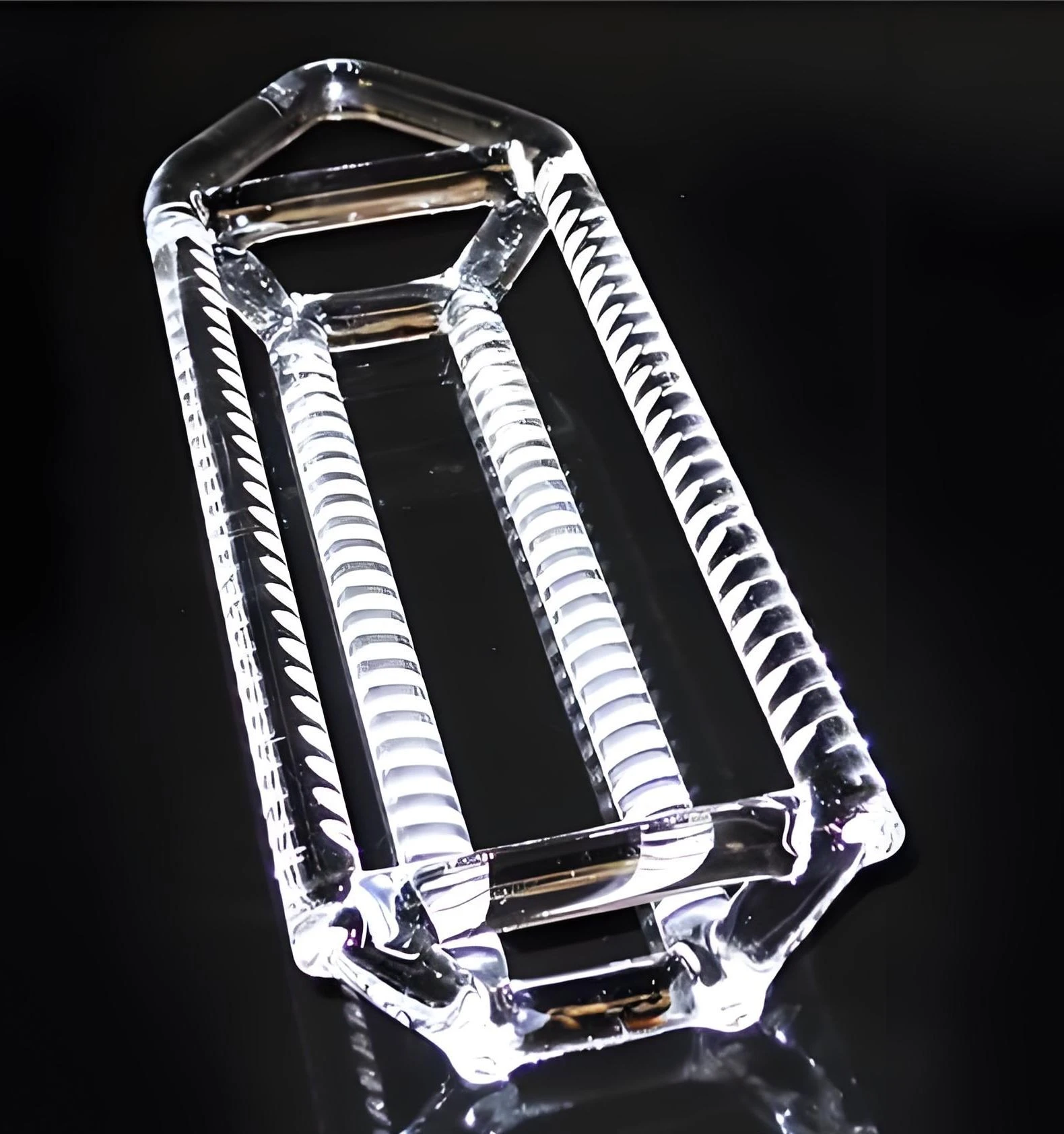

The Quartz Glass Boat Fused Silica Wafer Carrier for Photovoltaic Cell Production is supplied as a fused silica / quartz wafer made from Quartz Glass. Temperature 1500. It is used in Chemical. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Quartz Tube |
|---|---|
| Application | Chemical |
| Model NO. | 82034 |
| Materials | Quartz Glass |
| Temperature | 1500 |
| Supplier | Jinan Everest Glass Company Limited. |
Technical data
| Item | Technical Data |
|---|---|
| SiO2 Purity | 99.99% ~ 99.9999% |
| Softening Point | 1730~1850°C |
| Deformation Point | 1250°C |
| Continuous Working Temp | 1180~1200°C |
| Max Short-term Temp | 1450~1500°C |
| Density | 2.2 g/cm³ |
| Mohs Hardness | 5.5–6.5 |
| Thermal Expansion Coefficient | 5.4×10-7/°C |
| Visible Light Transmittance | ≥95% |
| UV Transmittance | ≥85% |
| Chemical Stability | 30 times of acid-resistant ceramics, 150 times of stainless steel |
| Insulation Performance | 100 times higher than ordinary glass |
What to specify when you request a quote
- Diameter and flat / notch — state diameter, flat or notch and their tolerances.
- Thickness and TTV — give thickness, its tolerance and total thickness variation.
- Polish and roughness — specify single- or double-side polish and roughness.
- Flatness, bow and warp — quote flatness, bow and warp limits.
- Material grade — listed as “Quartz Glass”; name the grade (JGS1/JGS2, Borofloat 33, alkali-free, sapphire orientation).
