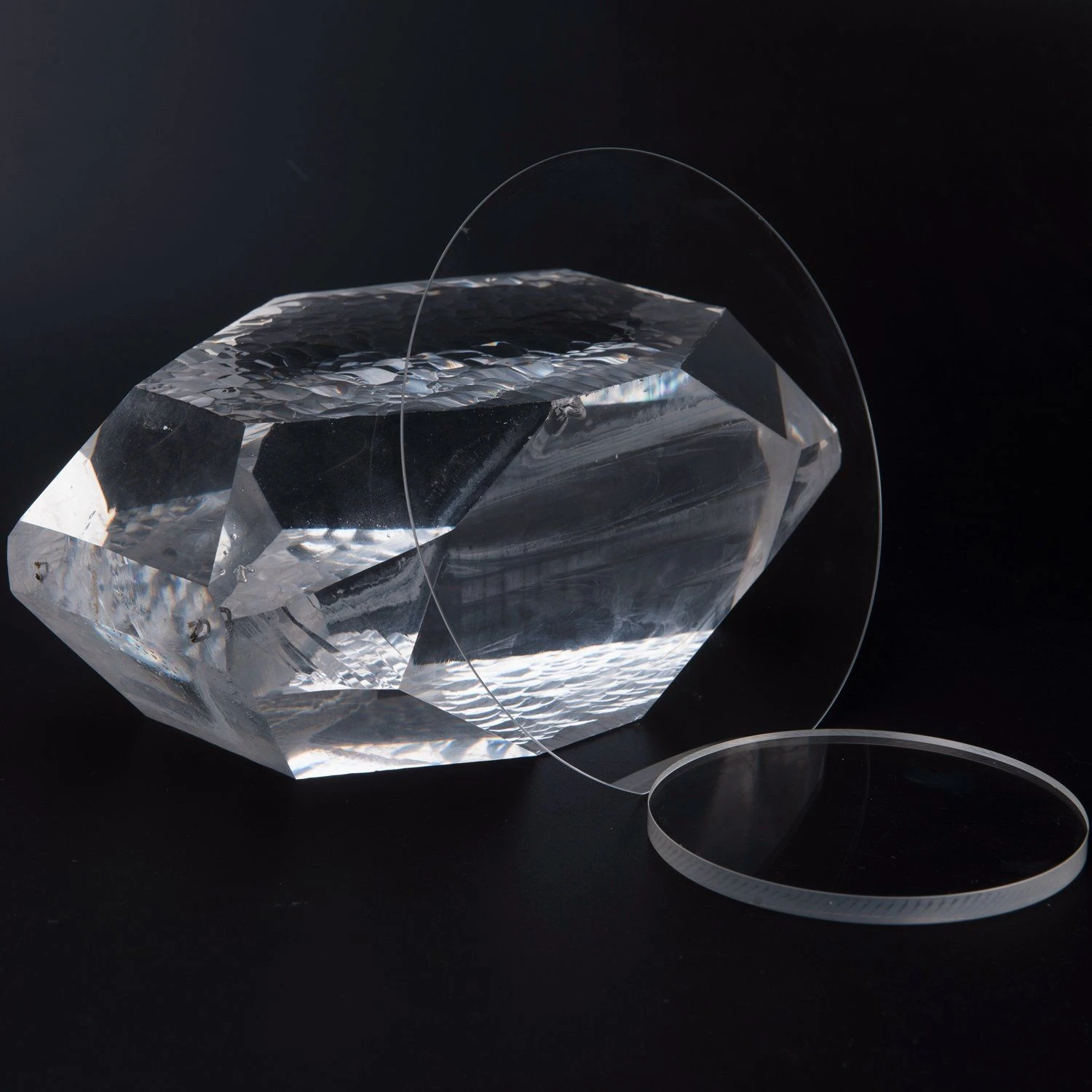

St-Cut 42.75 4″ (100mm) Saw Grade Quartz Crystal Wafer Substrate with 0.35mm Thickness

St-Cut 42.75 4" (100mm) Saw Grade Quartz Crystal Wafer Substrate with 0.35mm Thickness — a fused silica / quartz wafer: Quartz Crystal, 0.10mm or More…

Quartz CrystalMaterial
Quartz PlateType
25.4mm-200mmDiameter
0.10mm or MoreThickness
St-Cut 42.75 4″ (100mm) Saw Grade Quartz Crystal Wafer Substrate with 0.35mm Thickness

Product type: Quartz Plate. Application: Glass. Model: St-Cut 42.75 4\".

Overview

St-Cut 42.75 4" (100mm) Saw Grade Quartz Crystal Wafer Substrate with 0.35mm Thickness: a fused silica / quartz wafer made from Quartz Crystal. Listed geometry: diameter 25.4mm-200mm, thickness 0.10mm or More. It is used in Glass. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.

Specifications

Material Quartz Crystal
Type Quartz Plate
Diameter 25.4mm-200mm
Thickness 0.10mm or More
Application Glass
Model NO. St-Cut 42.75 4\"
Ttv <2um
Warp <20um
Bow <10um
Surface Finish Ssp/DSP
Cutting Angle X/Y/Z/At32,33,36/Bt/St42.75deg;-Cut
Supplier Hangzhou Freq-Control Electronic Technology Ltd.

What to specify when you request a quote

  • Diameter and flat / notch — listed as “25.4mm-200mm”; state diameter, flat or notch and their tolerances.
  • Thickness and TTV — listed as “0.10mm or More”; give thickness, its tolerance and total thickness variation.
  • Polish and roughness — listed as “Ssp/DSP”; specify single- or double-side polish and roughness.
  • Flatness, bow and warp — listed as “<20um”; quote flatness, bow and warp limits.
  • Material grade — listed as “Quartz Crystal”; name the grade (JGS1/JGS2, Borofloat 33, alkali-free, sapphire orientation).

Engineering guides for this part

For material grades and coating options, see Fused Silica and Quartz Glass: Selecting Materials for Precision Components. How parts like this are machined and finished is covered in Precision CNC Machining of Quartz & Fused Silica Components. For an application example, read Fused Silica Glass Wafers for Precision Appliance Electronics. Before sending a drawing, check Quartz Glass Manufacturing: Controlling Thermal Conductivity in Fused Silica. A related standard product is Fused Silica Glass Wafers (2–12", JGS1/JGS2).
