Application: Medical, Civil, Labs.
Overview

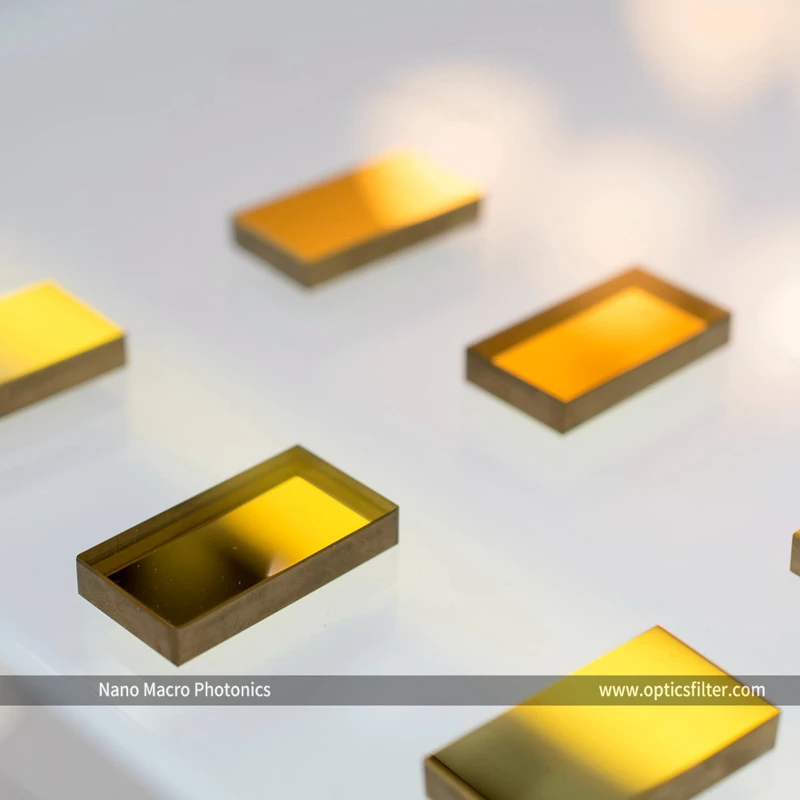

Wholesale 1550nm Laser Gold-Plated Reflector Optical Glass Reflective Mirror is an optical mirror made from Glass. Listed geometry: plano shape. Listed for Medical, Civil and Labs applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Shape | Plano |
| Application | Medical, Civil, Labs |
| Reflection Band | 800-1800nm or Custom |
| Relectivity | R>95% |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| Reflection band | 800-1800nm or custom |
|---|---|
| Thickness | Customizable |
| Relectivity | R>95% |
| Surface quality | MIL60-40 |
| Product material | Optical glass ( K9,BK7,B270,D263T,JGS1,color glass) |
| Product size | Customizable |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
