Glass Component Design Guide for Precision Manufacturing

Answering the Core Design Question

When an engineering team first approaches a custom precision glass component, the immediate question is rarely “which glass type?” but “Can this shape be made to these tolerances?” The short answer is that most geometries can be realized, but the path to a production-ready part depends on clearly communicating the design intent through the drawing and specifications. This guide helps overseas buyers, sourcing engineers, and procurement teams define those requirements in a way that accelerates RFQ review and reduces iterative clarification.

Why Clear Specifications Matter

Precision glass components—from microfluidic chips to large optical windows—are not off-the-shelf items. Small ambiguities in a drawing or a missing surface quality callout can shift a part from standard machining to a high-risk, high-cost development. For export-oriented supply, where first-article inspection and remote qualification are common, unambiguous specifications protect lead time, cost, and yield. They also enable the manufacturer to propose alternative materials or process adjustments that improve manufacturability without sacrificing function.

Material Considerations

Material choice is driven by optical, thermal, chemical, and mechanical requirements. Common materials include:

• Fused silica and quartz glass: low thermal expansion, high UV transmission, and excellent laser damage resistance. Used for high-power optical windows and semiconductor components.
• Borosilicate glasses (e.g., Borofloat 33): good thermal shock resistance and moderate cost. Often specified for sight glasses, microfluidic chips, and cover glasses.
• Alkali-free glass: preferred for thin-film transistor (TFT) applications and certain display components due to its dimensional stability under thermal processing.
• Optical glass (N-BK7, etc.): tailored refractive index and high homogeneity for lenses, beam splitters, and filters.
• Sapphire: extreme hardness, scratch resistance, and broad transmission range. Used for demanding windows and sensor covers.

Specify the material and any relevant grade, such as JGS1 for fused silica or Borofloat 33, and note if alternatives can be proposed. If the component must survive a specific temperature profile, chemical environment, or laser fluence, add that to the RFQ.

Geometry and Drawing Requirements

The drawing is the contract. For custom glass components, include:

• Overall dimensions: length, width, thickness (or diameter and thickness).
• Feature dimensions: hole diameters, slot widths, groove depths, and edge distances. For holes, indicate if they are through, blind, or stepped, and specify the chamfer or corner break.
• Orientation features: flats, notches, or alignment marks that define wafer or chip orientation. Marking the datum structure explicitly avoids confusion during inspection.

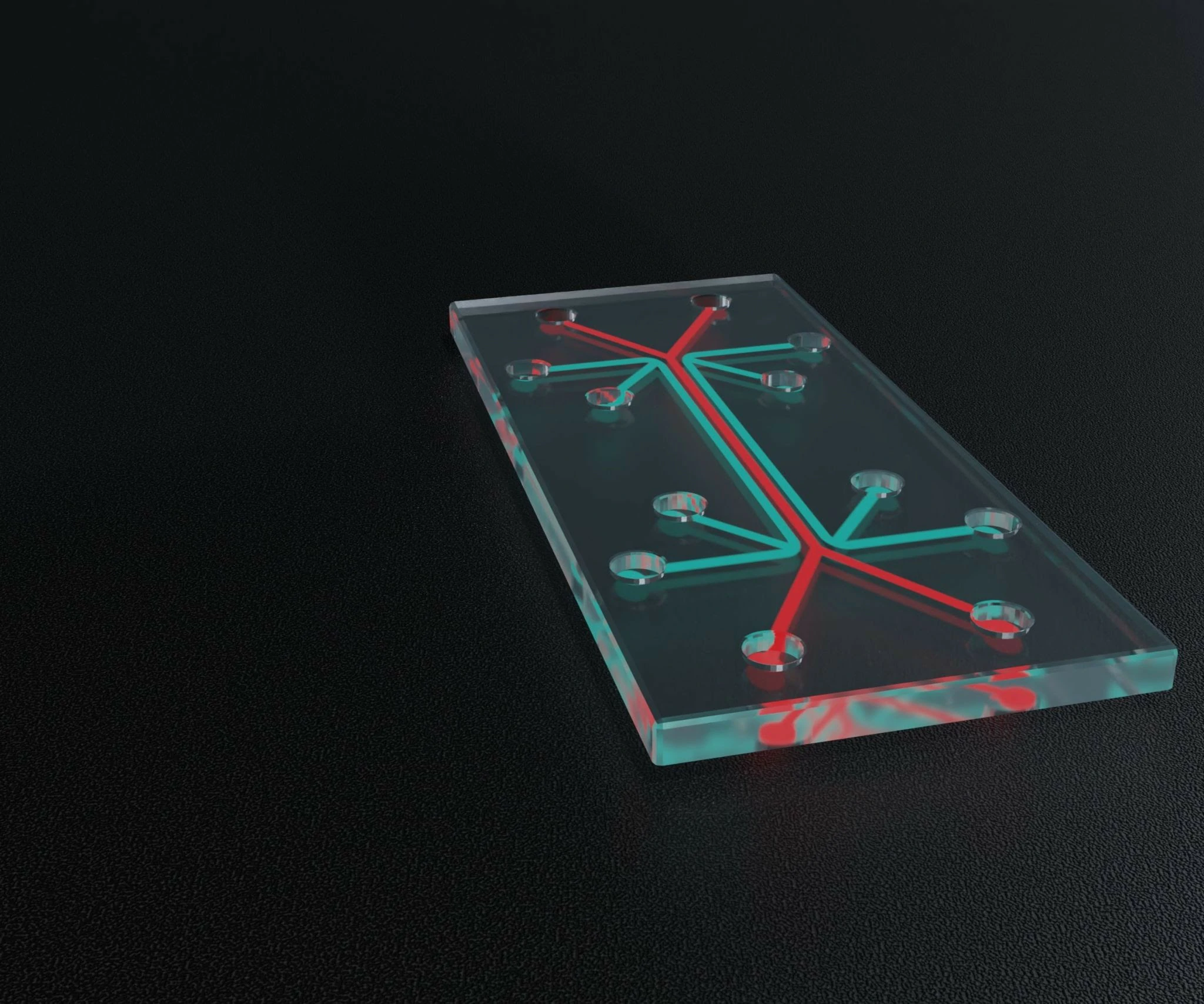

• Special shapes: non-round outlines, perforated plates, or multi-level etched cavities. If the part is a module, such as a microfluidic glass chip or a glass-bottom microplate, indicate the critical interfaces (e.g., channel depth and width, well bottom flatness).

For buyers who benefit from a visual preview of custom geometry, the Precision Glass 3D Configurator can be used to select a product module (glass wafer, microfluidic chip, optical filter, ITO/FTO conductive glass, perforated plate, LED/OLED cover glass, AR optical window, beam splitter glass, CCD optical glass plate, glass-bottom microplate, or custom glass), generate a 3D representation, copy an RFQ summary, and attach the drawing for engineering review. This tool helps align expectations before detailed quoting.

Tolerance and Surface Requirements

Tolerances drive process selection and cost. Define the following clearly:

• Dimensional tolerance: typical achievable tolerances depend on material and feature size; provide the acceptable range. For precision optics, sub-micron tolerances may be feasible; for covers, tens of microns are common.
• Flatness, TTV (total thickness variation), bow/warp: these surface form controls are critical for wafers, optical windows, and microfluidic bonding surfaces. State values in microns or waves.
• Parallelism: often required for beam splitters and optical windows; specify in arcminutes or microns of wedge.
• Surface quality (scratch-dig): per MIL-PRF-13830 or ISO 10110, specify the scratch-dig number (e.g., 60-40, 40-20) or surface imperfection grade.
• Polish level: from fine ground to optical polish, state the required roughness (Ra) or application need (e.g., “laser-grade polish”).
• Edge finish: seamed, ground, or polished edge, and any required bevel width or corner break.

If a drawing calls out a very tight tolerance on a large, thin substrate, engineering review will assess risk of distortion during machining or coating.

Coating and Functional Requirements

Many precision glass components require functional coatings or additional processing:

• Anti-reflective (AR) coatings: specify wavelength range, angle of incidence, and reflectance or transmittance targets.
• Optical filter coatings: bandpass, dichroic, or blocking filters. Provide the spectral curve or key parameters.
• ITO/FTO conductive coatings: sheet resistance, transmission, and area to be coated. Indicate if edge deletion (uncoated border) is needed for electrical isolation.
• Metallization or bonding layers: define the metal stack, thickness, and any substrate cleaning or surface activation required beforehand.
• Etched features: channels, cavities, or through-glass vias; specify depth, wall angle, and surface roughness.
• Cleanliness: for microfluidics, optics, or semiconductor use, state particle or organic contamination limits, packaging in cleanroom conditions, or final cleaning steps.

Sequence matters: certain coatings are applied after etching, others before. The manufacturer will review the process flow to avoid damage or contamination.

Key Specification Points

Before requesting a quote, ensure the following items are defined:

1. Material type and grade (or acceptable alternatives).
2. All dimensions with tolerances, including feature locations relative to datums.
3. Surface form controls (flatness, TTV, parallelism) and their values.
4. Surface quality (scratch-dig) and polish level.
5. Edge finish and any bevel/chamfer details.
6. Coating specifications, including wavelength and performance targets.
7. Cleanliness and packaging requirements for shipment.
8. Expected annual quantity and target lead time.
9. Any special environmental or test requirements (thermal cycling, laser damage threshold).

Manufacturability Notes

After receiving a complete RFQ, the engineering team will review:

• Machining risk: deep holes with small diameters, thin walls, and sharp internal corners increase the chance of breakage. Alternative features may be proposed.
• Edge chipping: certain glasses chip more easily; edge quality can be improved by adjusting tooling or adding a small bevel.
• Coating sequence: post-coating machining can damage the film. Complex parts may require coating-first or mask-and-coat approaches.
• Cleaning and inspection: component geometry and surface quality dictate cleaning method (ultrasonic, spray, or manual) and inspection criteria (visual, dimensional, optical).
• Packaging: fragile parts need custom trays, gel packs, or individual wrapping to survive export transit.

Visual Configuration Support

For projects involving custom geometry, a Precision Glass 3D Configurator is available. This online tool lets a buyer choose a base module, define key dimensions, and generate a visual 3D preview. The output is an RFQ summary that can be copied and sent along with a detailed drawing to initiate the engineering review. It does not replace the final drawing but helps bridge the gap between concept and formal specification.

Next Step: Engineering Review

To begin, send your drawings, material requirements, tolerance and coating specifications, quantities, and any application-specific notes to the manufacturer. Clear documentation leads to an accurate feasibility assessment and a faster path to prototype or production-grade glass components.

Designing for Precision Manufacturability

Successful precision glass components start with clear specifications that align material properties, geometry, tolerances, and surface requirements with achievable manufacturing processes. The following guidelines help engineering teams avoid common pitfalls that lead to redesigns or production delays.

Balancing Feature Density and Edge Distance

When placing holes, slots, or grooves in a glass substrate, maintain adequate edge distance to prevent cracking during machining. As a rule, the distance from the edge of a feature to the part boundary should be at least the thickness of the glass, though this ratio must be confirmed during engineering review based on the specific material and machining method. For tightly spaced features or thin webs, consult the manufacturer early—these regions become stress concentrators and can reduce yield if not properly accounted for in the process flow.

Specifying Coatings in the Correct Sequence

Optical coatings, conductive ITO/FTO layers, or anti-reflection films should be planned in relation to the machining steps. In many cases, the glass is machined first and then coated, but when coatings must extend to the edge, edge deletion or masking areas must be clearly called out on the drawing. The coating sequence—whether before or after cutting, drilling, or grinding—affects yield and must be reviewed with the supplier before finalizing the specification. Some coatings are sensitive to post-coating grinding or edge polishing, so any interim handling steps should also be considered.

Accounting for Thermal Processing in Glass Selection

Some glass materials, such as fused silica or Borofloat 33, can withstand higher thermal loads, while others may require annealing after machining. If your component will be exposed to elevated temperatures during coating, bonding, or end use, specify the thermal environment so the supplier can recommend the most stable material option. This is especially relevant for alkali-free glass or optical glasses that may be prone to thermal shock if not processed correctly.

Preparing Your RFQ Documentation

An accurate quote begins with a well-prepared RFQ package. Include a detailed dimensional drawing with all critical dimensions, tolerances, surface finish requirements, and material specification. Note any special edge treatments, orientation features, or cleanliness levels. Incomplete documentation is a primary cause of quotation delays—missing tolerances or undefined coating areas often require multiple rounds of clarification. When specifying a precision glass component, clarity in documentation is critical. For complex shapes, techniques like custom glass cutting or CNC grinding are employed, and the drawing must reflect process-specific needs.

If your geometry is non-standard, you can use the Precision Glass 3D Configurator to create a visual preview and generate an RFQ summary, which can accompany your formal drawing for an initial engineering review. The configurator is a specification support tool and does not replace the final drawing or a thorough manufacturability assessment.

The table below summarizes key specification areas that every RFQ should address, consolidating the design considerations from this guide.

Next Step: Request Your Engineering Review

Send your drawings, material requirements, tolerances, quantities, and application details to the manufacturer. A comprehensive specification enables a rapid feasibility assessment and a smooth path from prototype to production-grade precision glass components.
