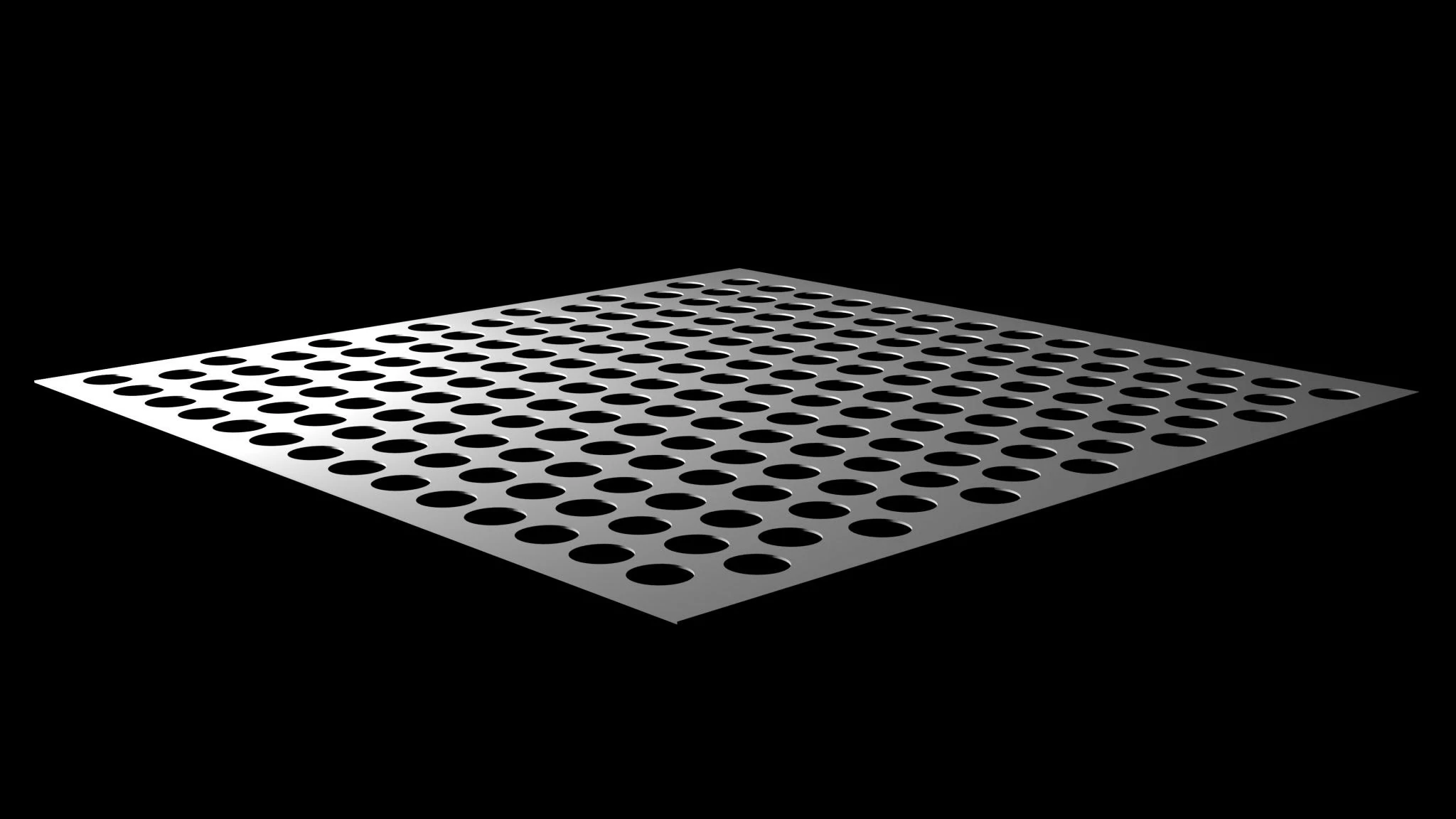

Custom Perforated Quartz Plate for Appliance Airflow Sensors

The Application Goal: Reliable Airflow Sensing Under Thermal Stress

How do you maintain accurate airflow sensing in a high-temperature appliance over years of operation without sensor drift or contamination? Designers of smart ovens, commercial dryers, HVAC monitoring units, and industrial combustion controls face a common challenge: the sensor must reside within the air stream to capture true flow data, yet exposure to heat, moisture, and airborne particulates rapidly degrades ordinary materials. The ideal protective element must pass air uniformly, resist thermal deformation, withstand chemical attack, and—if integrated with optical detection—transmit specific wavelengths without attenuation.

A custom perforated quartz plate addresses these demands directly. By serving as a precision flow-conditioning window, it shields sensitive micro-machined thermal or optical sensors while imposing minimal pressure drop and maintaining a repeatable flow field. Its inherent material properties—high-purity fused quartz—deliver a combination that no polymer or metal counterpart can match in long-life appliance environments.

Why a Custom Perforated Quartz Plate Solves the Challenge

Fused quartz (often specified as JGS1 or equivalent) offers a near-zero coefficient of thermal expansion (CTE), typically around 0.55 × 10⁻⁶ /K, which means the plate’s dimensions and perforation geometry remain stable from cold start to full operating temperature. This eliminates the warping or hole distortion that can plague metal meshes or polymer grids, ensuring the calibrated flow response stays within tolerance. Unlike borosilicate glass, quartz can operate continuously above 1,000°C and withstand repeated thermal shock—qualities essential for direct exposure to oven exhaust or gas burner streams.

Custom laser drilling or CNC machining enables intricate hole patterns—straight or tapered bores, arrays with varied pitch, and minimum diameters down to a few hundred microns—all tightly toleranced to ±0.02 mm or better. The plate can be supplied with ground and polished surfaces for optical clarity when an LED or laser beam must pass through for particulate detection. Because quartz is chemically inert, it resists acidic or alkaline condensation common in flue gas environments, and its non-porous surface cleans easily, preventing particle buildup that would alter flow characteristics.

Critical Selection Criteria for Quartz Flow Plates

Choosing the right perforated quartz plate requires evaluating several interacting factors:

• Material Grade and Purity: High-purity fused quartz (≥99.99% SiO₂) minimizes trace metal contamination that could catalyse reactions or cause discoloration at extreme temperatures. For optical sensor windows, UV-grade quartz (e.g., JGS1) transmits down to 185 nm, while standard grades cover visible and IR ranges.
• Thermal and Mechanical Stability: Confirm that the CTE and softening point align with the appliance’s peak operating temperature and thermal cycling frequency. Annealed quartz resists stress, but for maximum strength, consider a fine-ground edge finish to reduce micro-cracks.
• Perforation Precision: Define the hole diameter, pattern geometry, open area ratio, and aspect ratio (thickness to hole diameter). These parameters govern flow rate, pressure drop, and sensor signal linearity. Laser-drilled holes offer smooth walls and high repeatability.
• Surface Quality and Flatness: For optical transmission, specify scratch-dig rating (e.g., 60-40 or better) and transmitted wavefront error. Even for non-optical applications, flatness within a few wavelengths ensures consistent sealing against an O-ring or gasket.
• Compliance and Durability: Verify RoHS, REACH, and any food-contact certifications if the appliance handles potable water or food vapors. Quartz’s hardness (Mohs 5.5–6.5) resists scratching during assembly and routine cleaning.

From Prototype to Production: A Realistic Project Walk-Through

Consider an OEM developing a next-generation convection oven with a built-in air quality sensor. Early testing with a stainless-steel perforated plate showed unacceptable drift after 500 heat cycles due to oxidation and thermal expansion mismatches. The engineering team switches to a custom quartz plate.

The project begins with a CAD file defining a 50 mm circular plate, 1.5 mm thick, with a hexagonal array of 0.3 mm holes at a 1.0 mm pitch. After a design review, the manufacturer recommends a JGS1 quartz grade for its UV transparency and thermal history. Prototypes are laser-drilled, edge-chamfered, and polished to a 40-20 surface quality. In-house flow bench testing confirms a pressure drop within 5% of the simulation model, and the sensor’s calibration curve remains linear. Environmental testing—500 temperature cycles from 25°C to 300°C and exposure to acetic acid vapor (simulating food byproducts)—shows no degradation. Once validated, the design moves to small-batch pilot production, where the supplier provides SPC data on hole diameter and concentricity, demonstrating Cpk > 1.33. The final production order integrates the quartz plate into the sensor module’s snap-fit housing, with a silicone O-ring ensuring a dust-tight seal.

Planning for Integration: Sizing, Tolerances, Coatings, and Logistics

Successful integration of a perforated quartz plate hinges on upfront planning in several areas:

• Dimensional Specifications: Specify outer diameter (or square dimensions), thickness, and corner radii if not round. For holes, define diameter, position tolerance, and pitch. Aspect ratios (hole depth to diameter) above 10:1 may require specialized laser parameters. Discuss edge finish: seamed, ground, or polished, depending on stress concentration and handling needs.
• Tolerance Stack-Up: Model how hole diameter tolerances affect the total open area and resulting flow rate. Mounting features—such as a peripheral step or alignment notches—must be machined with tight positional tolerances to avoid introducing turbulence or misalignment in the sensor port.
• Coatings: Anti-reflective coatings on one or both surfaces can boost transmission for optical sensor integration. A hydrophobic top coat may be applied to reduce moisture retention on the plate surface in condensing environments. Confirm that any coating can withstand the specified operating temperature range without delamination or outgassing.
• Integration Method: Decide whether the plate will be adhesive-bonded, mechanically clamped, or held by a retainer ring. Quartz’s brittleness requires careful handling; design the surrounding structure to avoid point loads and allow for micro-movement during thermal expansion.
• Logistics and Packaging: Custom quartz plates demand cleanroom handling and cushioned packaging—often in individual gel packs or vacuum-formed trays—to prevent edge damage. Lead times for first articles can range from a few weeks to several months depending on pattern complexity and volume. Discuss forecast volumes early to secure capacity and stable pricing.

Start the Conversation on Your Custom Quartz Plate

Every appliance airflow sensing application presents a unique set of thermal, mechanical, and optical requirements. Whether you are optimizing a current design or qualifying a new sensor module, a custom perforated quartz plate can be engineered to match your exact specifications. Share your project parameters—operating temperature range, required hole geometry, plate dimensions, and any special optical needs—and our application engineers will help you translate them into a manufacturable solution that delivers consistent performance across the product’s lifecycle.

Engineered Precision: How Perforated Quartz Enhances Airflow Sensor Performance

A custom perforated quartz plate directly addresses the core requirement of appliance airflow sensors: stable, repeatable modulation of an optical or thermal signal under varying environmental conditions. The inherent properties of fused quartz—high purity, low thermal expansion, and broad spectral transmission—make it the ideal window material for sensors that must maintain calibration across the appliance’s temperature range. By precisely engineering hole arrays, plate thickness, and surface finish, the plate ensures that airflow is channeled with minimal turbulence, delivering a strong and consistent signal to the detector.

Fused silica (often JGS1 or JGS2 grades) offers excellent UV to IR transmission, typically above 90% in key sensing wavelengths, without the yellowing or degradation seen in polymers. Its coefficient of thermal expansion (CTE) of approximately 0.55 × 10⁻⁶/K means dimensional stability from room temperature up to several hundred degrees Celsius, preventing hole pattern distortion that could alter flow characteristics. For sensors operating near heating elements or in condensing environments, this thermal resilience is critical to long-term reliability.

Key Facts: Perforated Quartz Plates for Sensor Applications

• Material: High-purity fused silica (JGS1, JGS2) or synthetic quartz with low OH content for UV stability.
• Hole geometries: Round, slotted, or custom shapes with diameters typically ranging from <100 µm to several millimeters, achievable via CNC drilling or ultrasonic machining.
• Tolerances: Hole center-to-center positioning ±0.05 mm or better, hole diameter tolerance as low as ±0.01 mm (application-dependent).
• Surface quality: Polished to 40-20 scratch-dig or finer, with optional anti-reflective (AR) coatings for specific wavelength bands.
• Thickness: Customizable from 0.5 mm to over 10 mm, with tight thickness uniformity (±0.05 mm).
• Edge treatment: Beveled, seamed, or ground edges to prevent chipping and facilitate assembly.

Customization and Integration: From Drawing to Production

Every airflow sensor imposes its own geometric constraints. Plate dimensions, hole pattern density, and positional tolerances must be matched to the housing and optical path. Modern CNC-controlled drilling stations can produce arrays with hundreds of holes while maintaining edge quality and minimizing subsurface damage. Post-processing steps such as double-sided polishing, chemical strengthening (if required), and ultrasonic cleaning prepare the plate for direct integration into sealed sensor modules.

When specifying a custom quartz plate, it is helpful to define not only the mechanical dimensions but also the intended wavelength range, required transmission efficiency, and any semiconductor-equipment compatibility (e.g., low particulates, outgassing specifications). This allows the manufacturer to recommend appropriate material grade (e.g., low-alkali synthetic quartz for UV sensors) and surface treatment. For high-volume appliance programs, automated optical inspection and statistical process control ensure every plate meets the agreed-upon specifications, minimizing yield loss at the module level.

Quality Assurance and Industry Standards

Manufacturing processes typically align with ISO 9001 quality management systems and may comply with specific industry standards such as SEMI for semiconductor-related applications or ISO 13485 for medical device components. Material certificates, dimensional reports, and surface roughness measurements are provided as part of a comprehensive quality package. Traceability of raw material heats ensures repeatable optical and mechanical properties across production batches.

Send Your Drawings for a Custom Quote

Moving from concept to production begins with a detailed inquiry. Provide your 2D or 3D CAD files, target quantities, and any special environmental requirements. Application engineers will review the design for manufacturability, suggest material or process improvements, and generate a compliant first article. With early engagement, you can secure prototype lead times that align with your product development milestones and seamlessly scale to full-volume manufacturing.
