The production manager at a mid-sized optical sensor manufacturer stared at the batch of glass windows that had just come out of the CNC machine. The odd-shaped plates — with a tight tolerance of ±0.02 mm and a beveled edge — were needed for a new night-vision assembly. Half of the parts had micro-chips along the bevel, a defect that would require costly hand finishing or scrapping. The team had been struggling for weeks to meet the shipment deadline, and manual touch-up was eating into margins. What the manager needed wasn’t just a supplier; it was a machining partner that could handle complex, non‑rectangular glass shapes reliably and at scale.
This scene plays out across industries that depend on high‑precision glass components — from medical diagnostics to semiconductor inspection tools. When standard rectangular cuts won’t do, the path to a repeatable, high‑quality supply of special‑shaped plates demands more than a general glass shop.
When Complex Glass Shapes Become a Production Bottleneck
For many B2B operations, the business case for custom glass plates starts with a clear goal: scale up a product line that requires non‑standard geometries, eliminate labor‑intensive rework, or achieve a surface finish that standard cutting methods cannot deliver. The common enemies are inconsistent edge quality, chipping that grows into rejects, and cycle times that balloon as operators hand‑finish every piece.
Take an LED optics manufacturer expanding into a new architectural lighting series. The design calls for a hexagonal glass cover with a chamfered rim and four micro‑holes. A local fabrication shop might handle a few prototypes, but when the order jumps to 5,000 units per month, the process unravels. Manual grinding cannot hold the chamfer angle across the run, and hole‑position drift forces a 12% rejection rate. Every rejected piece represents wasted material, overtime, and delayed shipments. The real cost isn’t the glass — it’s the lost assembly capacity and the risk to the customer relationship.
Precision Machining That Delivers on Geometry and Consistency
A purpose‑built Custom Special‑Shaped Glass Plate machining service solves this by aligning equipment, process control, and optical‑grade quality systems from the start. Unlike general‑purpose CNC shops, a specialist works with a library of glass types — Borofloat, quartz, soda‑lime, aluminosilicate — and pairs CNC milling, laser cutting, and ultrasonic drilling with fine‑grinding and polishing steps tuned for brittle materials.
The result is a process that can hold dimensional tolerances within a few microns, produce edge chamfers and bevels without chipping, and maintain consistent surface roughness across thousands of plates. Optical metrology stations inspect every part against the CAD file, flagging any deviation before it leaves the cell. This closed‑loop capability allows the machining partner to quickly dial in parameters for a new shape and then lock them for repeat orders.

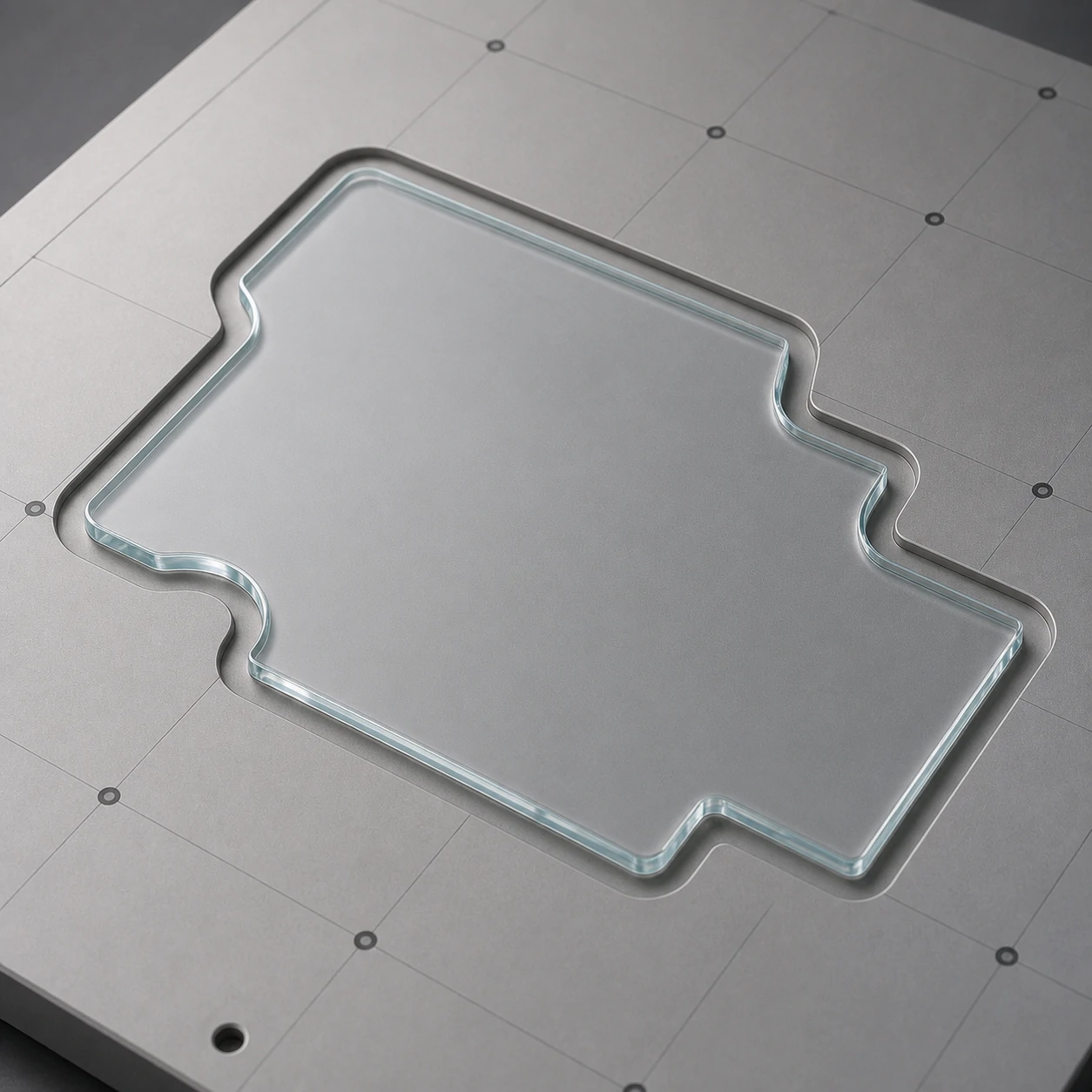

As shown in the custom-special-shaped-glass-plate-application overview, these plates find use in CCD optical screening machines, microfluidic devices, and custom LED packages — each demanding a unique combination of shape, edge treatment, and surface quality.
A Day on the Line: Machining an Octagonal Lens Mounting Plate
Consider a realistic workflow for an octagonal plate destined for a machine‑vision camera. The plate must have a 0.5 mm step on one face, a central 4 mm hole, and two 1.2 mm alignment holes — all within a 50 mm outer diameter. The glass is Schott Borofloat 33, chosen for thermal stability.
After the CAD is approved, the machining house programs a five‑axis CNC grinding center. Blank discs are first rough‑cut to octagons via laser, leaving a small machining allowance. The parts then move to the CNC station where a diamond tool shapes the outer profile, cuts the central hole, and drills the alignment holes in one clamping. A secondary spindle applies the stepped recess with a specially profiled wheel. Throughout the batch, inline optical inspection measures the step height and hole positions. Parts that pass proceed to a chemical toughening bath, then a final ultrasonic clean. The octagonal plate exits the line ready for AR coating — no hand deburring, no touch‑ups.
Where the Difference Shows: Labor, Yield, and Throughput
Switching to a dedicated special‑shaped glass machining process yields clear operational benefits — nothing theoretical, just logical outcomes of better process control:
- Less manual labor. Automated edge profiling and polishing eliminate the hand‑finishing steps that consume hours per batch and introduce variability. Skilled operators shift from grinding to overseeing metrology stations.
- Higher whole‑kernel rate. Consistent chip‑free edges mean more parts sail through coating and assembly without rejection. A process that can hold geometry across an entire production run dramatically cuts the scrap that plagues manual methods.
- Predictable surface quality. Whether the spec calls for a fire‑polished edge or a fine‑ground matte finish, the right toolpath and coolant regime deliver the same Ra value on part one and part ten thousand.
- Faster ramp‑up. Once the machining recipe is validated, moving from a 100‑piece pilot to a 10,000‑piece order does not require a new set of skills or fixtures. The same program scales.
Scaling Up: Capacity, Integration, and Long‑Term Support
Buyers planning to outsource special‑shaped glass plates should look beyond the unit price. The conversation starts with capacity match: can the supplier handle your peak weekly volume while maintaining agreed lead times? Equally important is integration with downstream automation. Many plates feed directly into pick‑and‑place lines or optical alignment stations, so packaging (trays, gel‑paks) and cleanliness standards must align with the assembly environment.
Support for design changes matters too. As your product evolves, the machining partner should offer fast re‑programming and a documented process for validating first articles. A partner that maintains detailed batch records and provides optical inspection data gives your quality team the traceability it needs for ISO or FDA audits.
| Aspect | Without Specialist Machining | With Precision Machining |
|---|---|---|
| Complex geometry | Manual grinding struggles with sharp corners, undercuts, and multi‑axis features. | Multi‑axis CNC and laser cutting produce intricate shapes with precise internal features. |
| Edge quality | Chipping and micro‑cracks force hand finishing, adding labor and variability. | Automated beveling and polishing deliver chip‑free edges with consistent chamfer angles. |
| Dimensional accuracy | Growth in batch size leads to drift; tolerances of ±0.05 mm often unreliable. | Closed‑loop metrology holds ±0.02 mm or better across thousands of parts. |
| Volume scalability | Ramp‑up requires extensive operator training and slows down as complexity rises. | Validated programs and automated cells scale from prototypes to full production without re‑development. |
| Material flexibility | Limited to a few glass types due to tool wear and know‑how. | Process tuned for Borofloat, quartz, soda‑lime, aluminosilicate, and more. |
| Integration with downstream assembly | Inconsistent packaging and cleanliness cause pick‑and‑place errors or contamination. | Controlled packaging, cleanroom‑compatible procedures, and traceability data. |
Turning Design Intent into Repeatable Production
For operations managers and procurement leads, the value of a dedicated custom glass machining partner lies in making the complex routine. When special‑shaped glass plates stop being the bottleneck and become just another reliable component, the entire assembly line benefits. To discuss your specific geometry, glass type, and volume requirements with an engineering team that understands both the material science and the equipment, reach out to MachiningGlass.com and start a conversation about your next project.
Frequently Asked Questions
What are special-shaped glass plates, and why are they needed?
Special-shaped glass plates are glass components with non-rectangular or complex geometries, such as octagons, hexagons, or shapes with cutouts and steps. They are used in optical instruments, medical devices, and electronics where standard round or square plates cannot fulfill the mechanical or optical design requirements.
How are complex glass shapes machined without damage?
They are machined using a combination of CNC milling, grinding, laser cutting, and ultrasonic drilling, often with diamond tooling and coolant to prevent chipping. Multi-axis machines allow shaping, beveling, and hole drilling in a single setup, while inline optical inspection catches defects early.
What industries use custom special-shaped glass plates?
Industries including machine vision, medical diagnostics, semiconductor equipment, LED lighting, and microfluidics rely on these plates for lenses, sensor windows, chip carriers, and optical screening components. Each application demands tight tolerances and specific surface qualities.
What tolerances can CNC glass machining achieve on special shapes?
Specialist glass machining can routinely hold dimensional tolerances of ±0.02 mm or better, with surface roughness down to Ra 0.01 µm on polished surfaces. The exact tolerance depends on the glass type and feature geometry, but automated metrology ensures batch-to-batch consistency.
How should a buyer evaluate a glass machining partner for special shapes?
Look for direct experience with the glass material required, in-house optical inspection capability, and a track record of scaling from prototypes to production. Check that the partner can provide process documentation, traceability data, and packaging that integrates with your assembly automation.
