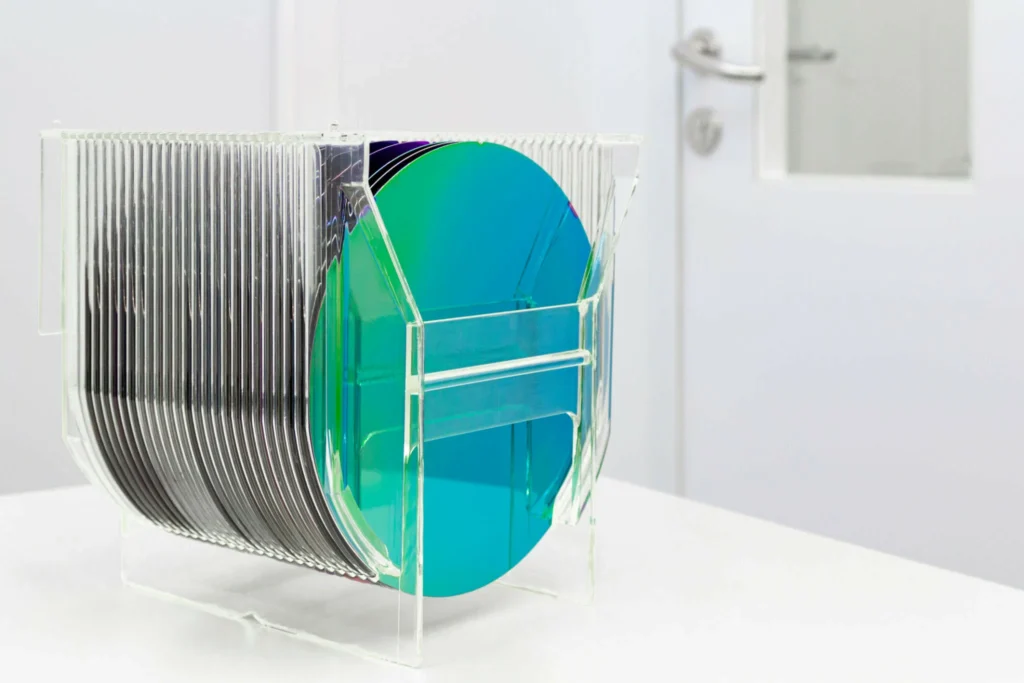

Borofloat 33 Glass Wafers for MEMS

Borofloat 33 Glass Wafers for MEMS: Borofloat 33, CTE 3.25 x 10^-6 /K. No MOQ, prototypes in 5-10 days, DFM review with every RFQ.

Borofloat 33 Glass Wafers for MEMS

Borofloat 33 Glass Wafers for MEMS – Borofloat 33 (CTE 3.25 x 10^-6 /K, 350 nm – 2.0 um). No minimum order; DFM review included with every RFQ.

borofloat 33 glass wafers for mems programs need anodic-bondable wafers with tight TTV. Borofloat 33 is the fit here because it offers float-glass flatness off the line. Typical parts: cap wafers, TGV substrates, motion-sensor lids.

Specifications at a glance

Material Borofloat 33 (SCHOTT float production, wafer grade)
Thermal expansion (CTE) 3.25 x 10^-6 /K
Service temperature 450 C continuous
Transmission range 350 nm – 2.0 um
Density 2.23 g/cm3
Knoop hardness 480 kg/mm2
Refractive index 1.471 @ 587 nm
Stock thickness 0.70 – 25.4 mm
Maximum blank size 500 x 500 mm
Wafer formats 2", 3", 4", 6", 8" and 12" with SEMI flats or notch
TTV under 3 – 5 um by format
RFQ inputs PDF/DXF/STEP drawing, quantity brackets, surface and edge spec

What the process holds

Beyond this page, Borofloat 33 routinely runs through sandblasting, etching, drilling, ultrasonic machining in our shop – most real parts combine two or three of these steps.

Getting the drawing right

Before sending the RFQ, check these against your drawing:

  • Material note: float tin side must be tracked when parts see coating or bonding steps.
  • Over-specification is the quiet budget killer: a 20/10 scratch-dig face costs roughly three times an 80/50 face, so grade each surface individually.

For the complete framework, see the tolerance design guide and the holes and edges design guide.

Who orders this

borofloat 33 glass wafers for mems shows up across optical sensors (sensor windows, filter caps, lens covers); led packaging (groove covers, phosphor carriers, package windows); machine vision (camera windows, ring-light diffusers, calibration plates). Background reading on the underlying material science: SCHOTT BOROFLOAT product page.

The fastest route to a quote is geometry: use the 3D builder below, draw a dimensioned 2D drawing from it, or open the site-wide custom glass machining 3D + 2D builder for fully custom parts.

Engineers scoping this work usually also review wafer dicing process, glass hole micromachining, special-shaped glass plates.

Buyer questions, answered

Is there a minimum order for borofloat 33 glass wafers for mems?

No. Single prototypes are accepted, and pricing steps down at 10, 100 and 1,000 pieces.

How fast can prototypes ship?

Machined prototypes ship in 5 – 10 working days. Coated or bonded parts add 1 – 2 weeks depending on queue slots.

What files do you need for a quote?

A dimensioned PDF plus DXF or STEP geometry. If only a sketch exists, our drawing review service formalizes it before quoting.

Do parts ship with inspection data?

Dimensional reports, surface certificates and material certs per melt are available; specify the level on the RFQ.

Specifications on this page were last reviewed by our engineering team in September 2026.
