Product type: Optical Windows. Application: Lighting, Medical, Optical, Photography.
Overview

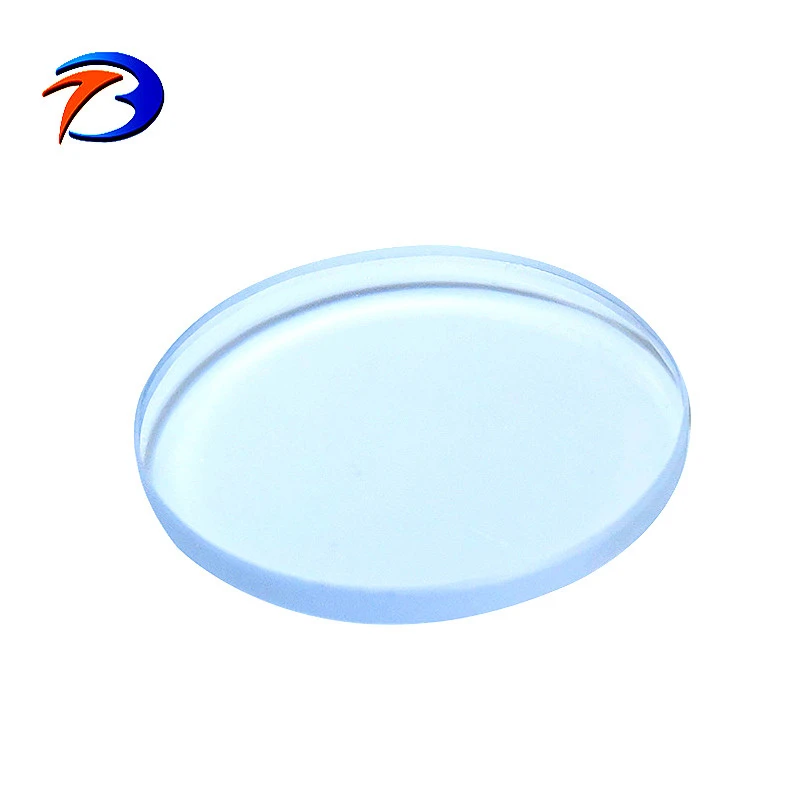

Optical Fused Silica Wafer Quartz Jgs1 Windows Standard 9000W Fused Silica Fiber Machine Laser Welding Protection Windows is a fused silica / quartz wafer made from Optical Glass. Listed geometry: flat shape. Optical / electrical data: transmittance >95%. Coating: Fused Silica. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Optical Windows |
| Shape | Flat |
| Transmittance | >95% |
| Coating | Fused Silica |
| Usage | Lighting, Medical, Optical, Photography |
| Lenses Color | Clear |
| Supplier | Shenyang Ebetter Optics Co., Ltd. |
Technical data
| Diameter | 0.2-300mm |
|---|---|
| Thickness | 0.1-100mm |
| Dimension tolerance | +/-0.1mm or +/-0.02mm |
| Surface quality (scratch & dig) | 60/40, 40/20 or better |
| Clear aperture | >85%, >90% |
| Surface accuracy | L/10 L/2 L |
| Parallelism | +/-3' ,+/-30'' |
| Bevel | 0.1~0.3mm x 45 degree |
| Coating | AR, BBAR or Custom |
What to specify when you request a quote
- Diameter and flat / notch — state diameter, flat or notch and their tolerances.
- Thickness and TTV — give thickness, its tolerance and total thickness variation.
- Polish and roughness — specify single- or double-side polish and roughness.
- Flatness, bow and warp — quote flatness, bow and warp limits.
- Material grade — listed as “Optical Glass”; name the grade (JGS1/JGS2, Borofloat 33, alkali-free, sapphire orientation).
Engineering guides for this part
For material grades and coating options, see Fused Silica Wafer Material Selection for Precision Glass Processing. How parts like this are machined and finished is covered in Precision CNC Machining of Quartz & Fused Silica Components. For an application example, read Boost Yield with Fused Silica Viewports for Vacuum and Optical Systems. Before sending a drawing, check Quartz Glass Manufacturing: Controlling Thermal Conductivity in Fused Silica. A related standard product is Fused Silica Glass Wafers (2–12", JGS1/JGS2).
