Product type: Color Filter. Application: Lighting, Medical, Optical, Photography. Model: XH3077.
Overview

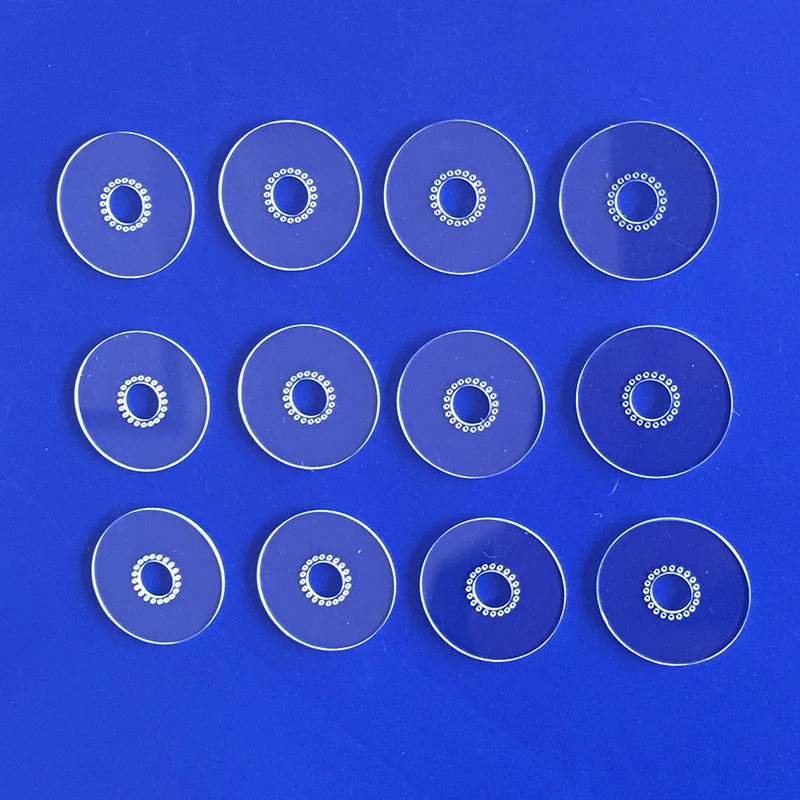

Optical Glass Clear Customized Shape Quartz Plate Wafer for Window Applications: a fused silica / quartz wafer made from Glass. Listed geometry: thickness 1mm-2mm. Typical applications: Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Usage | Lighting, Medical, Optical, Photography |
| Thickness Range | 1mm-2mm |
| Color | Transparent |
| Model NO. | XH3077 |
| Principle | Cut-off Filter |
| Angle of incidence | 45° |
| Operation principle | Integrity,Concrete,Innovation,Win-Win |
| Supplier | Shanghai Advance Optical-Electronics Technology Co., Ltd. |
What to specify when you request a quote
- Diameter and flat / notch — state diameter, flat or notch and their tolerances.
- Thickness and TTV — listed as “1mm-2mm”; give thickness, its tolerance and total thickness variation.
- Polish and roughness — specify single- or double-side polish and roughness.
- Flatness, bow and warp — quote flatness, bow and warp limits.
- Material grade — listed as “Glass”; name the grade (JGS1/JGS2, Borofloat 33, alkali-free, sapphire orientation).
Engineering guides for this part
For material grades and coating options, see Fused Silica Wafer Material Selection for Precision Glass Processing. How parts like this are machined and finished is covered in Precision CNC Machining of Quartz & Fused Silica Components. For an application example, read Boost Yield with Fused Silica Viewports for Vacuum and Optical Systems. Before sending a drawing, check Quartz Glass Manufacturing: Controlling Thermal Conductivity in Fused Silica. A related standard product is Fused Silica Glass Wafers (2–12", JGS1/JGS2).
