Quick answer: Microfluidic Chips for Diagnostics covers ISO 13485-aligned documentation available. Prototypes ship in 5-10 working days.

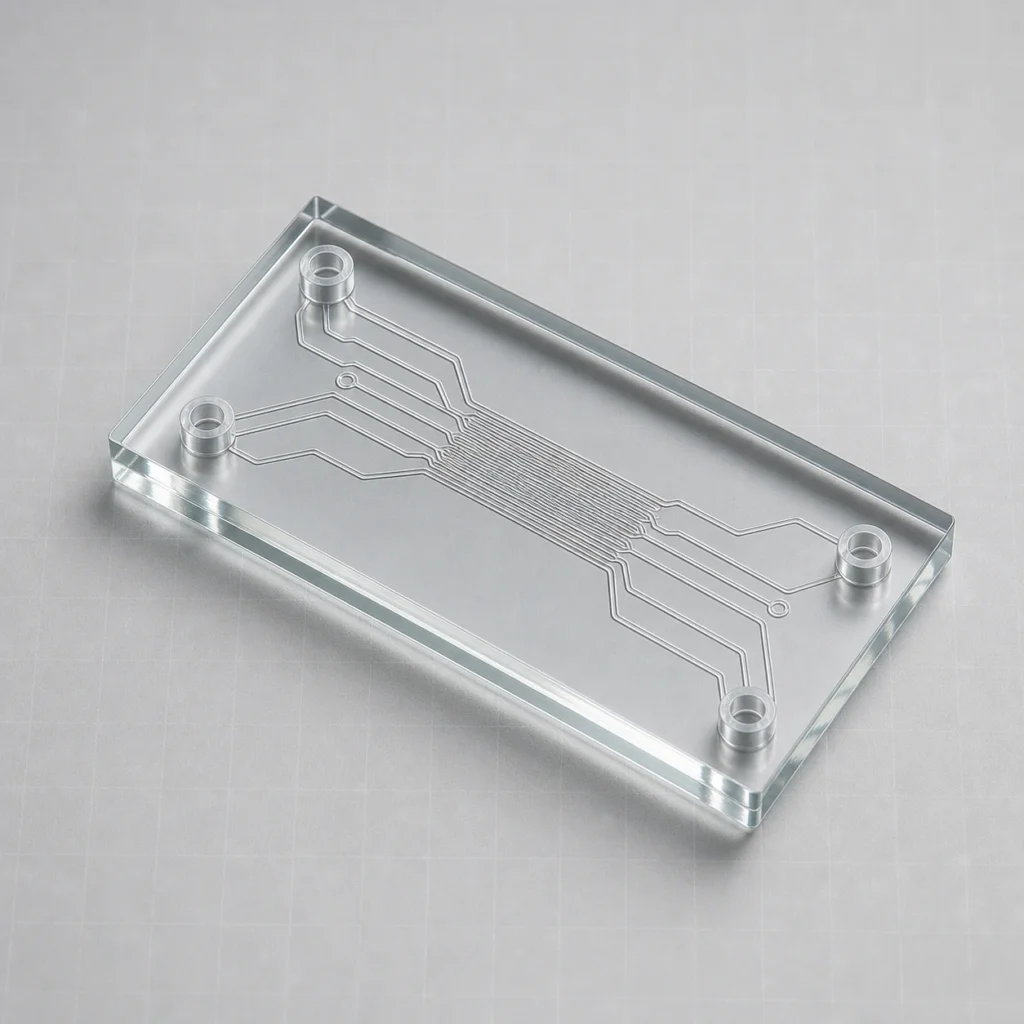

Glass remains the reference material for microfluidics – solvent-proof, optically clean, and thermally stable. microfluidic chips for diagnostics here are point-of-care cartridge windows and channel plates, with ISO 13485-aligned documentation available.
Specifications at a glance
| Microfluidic capability | ISO 13485-aligned documentation available |
|---|---|
| RFQ inputs | PDF/DXF/STEP drawing, quantity brackets, surface and edge spec |
Getting the drawing right
The shop-floor rules that matter here:
- Channel cross-sections are process-specific: etched channels are lens-shaped, machined ones rectangular with corner radii. State which your CFD model assumed.
- Over-specification is the quiet budget killer: a 20/10 scratch-dig face costs roughly three times an 80/50 face, so grade each surface individually.
For the complete framework, see the tolerance design guide and the holes and edges design guide.
Who orders this
Orders for microfluidic chips for diagnostics cluster in semiconductor equipment (view ports, wafer carriers, plasma rings, chamber windows); scientific instruments (reference flats, cells, prism mounts, stage inserts); laboratory instruments (cuvettes, sight glasses, stir-cell windows).
Dimensions still moving? Configure this part live in the 3D + 2D builder below, or open the full custom glass machining 3D + 2D builder to start from a blank canvas.
Useful companion pages: JGS1 quartz glass, ultra-thin glass materials, optical polishing capability.
Common questions
What files do you need for a quote?
A dimensioned PDF plus DXF or STEP geometry. If only a sketch exists, our drawing review service formalizes it before quoting.
Do parts ship with inspection data?
Dimensional reports, surface certificates and material certs per melt are available; specify the level on the RFQ.
Is there a minimum order for microfluidic chips for diagnostics?
No. Single prototypes are accepted, and pricing steps down at 10, 100 and 1,000 pieces.
How fast can prototypes ship?
Machined prototypes ship in 5 – 10 working days. Coated or bonded parts add 1 – 2 weeks depending on queue slots.
Specifications on this page were last reviewed by our engineering team in October 2026.
